Description

Price

1

FUEL TANK

4BD-24110-02-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSY 1

3JN-24500-10-00

$44.99

4

SEAL, COCK

3AJ-24534-01-00

$10.99

5

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

6

O-RING

4X8-24512-00-00

$8.99

7

WASHER, PLATE(3MB)

90202-05187-00

$1.38

8

SCREW 256241430000

90149-06011-00

$5.60

9

GROMMET (4V1)

90480-18290-00

$8.49

10

COLLAR (29U)

90387-066H4-00

$8.49

11

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

12

GROMMET(38W)

90480-01400-00

$13.49

13

WASHER, PLATE

90201-06090-00

$5.60

14

COLLAR (1T2)

90387-07598-00

$5.60

15

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

16

HOSE (L120)

90445-113E8-00

Unavailable

17

CLIP

90467-100A1-00

Unavailable

18

HOSE (L600)

90445-083J5-00

Unavailable

19

GROMMET

4BD-24339-00-00

Unavailable

20

DAMPER, LOCATING 1

4BD-24181-00-00

Unavailable

21

DAMPER, PLATE 1

4BD-2414H-00-00

Unavailable

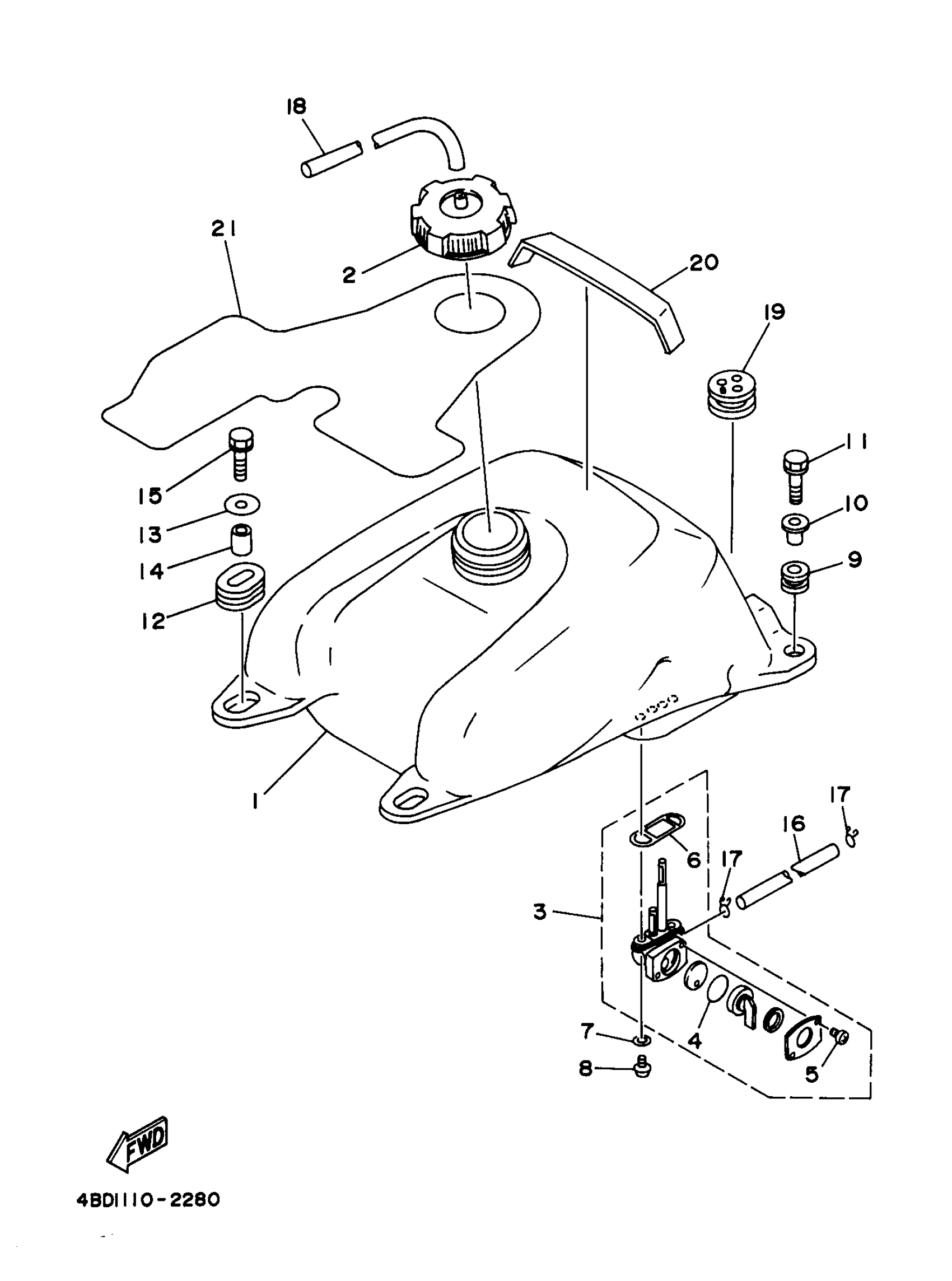

Yamaha YFB250FWJ_MNH (TIMBERWOLF 4WD) 4KDB 1997 FUEL TANK Diagram

FUEL TANK

CAP ASSY

FUEL COCK ASSY 1

SEAL, COCK

SCREW, PAN HEAD (J10)

O-RING

WASHER, PLATE(3MB)

SCREW 256241430000

GROMMET (4V1)

COLLAR (29U)

BOLT, WITH WASHER (24X)

GROMMET(38W)

WASHER, PLATE

COLLAR (1T2)

BOLT, WITH WASHER (24X)

HOSE (L120)

CLIP

HOSE (L600)

GROMMET

DAMPER, LOCATING 1

DAMPER, PLATE 1
