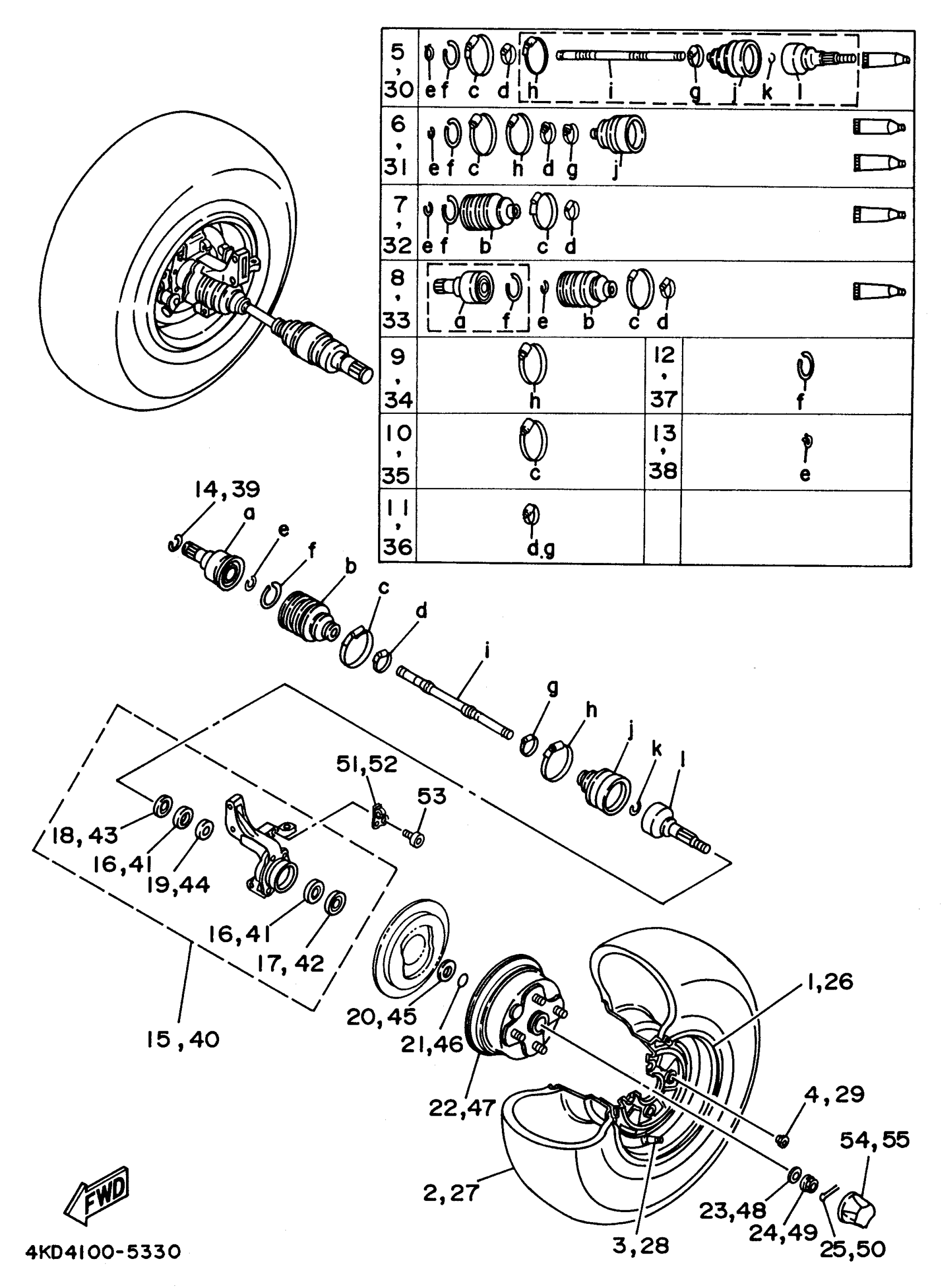

Yamaha YFB250FWH (TIMBERWOLF 2WD) 1996 FRONT WHEEL Diagram
#
1
WHEEL COMP.
4KD-25180-00-35
Unavailable
2
TIRE (AT23X8-10 KT401)
94108-1002G-00
Unavailable
5
BALL JOINT SET
4KD-2510F-01-00
Unavailable
8
DOUBLE 0FF SET JOINT
3HN-2510J-00-00
Unavailable
10
. BOOT BAND(DOUBLE OFFSETJOINT)
3HN-2511H-00-00
Unavailable
12
CIRCLIP
2HR-2512H-00-00
Unavailable
15
STEERING,KNUCKLE (L)
4KD-23501-01-00
Unavailable
16
BEARING(2HR)
93306-00612-00
Unavailable
17
OIL SEAL(2HR)
93102-38383-00
Unavailable
18
OIL SEAL(3HN)
93102-38417-00
Unavailable
19
SPACER(2HR)
90560-30325-00
Unavailable
20
COLLAR(3HN)
90387-281V8-00
Unavailable
21
O-RING(22F)
93210-26662-00
Unavailable
22
HUB, FRONT
3HN-25111-10-00
Unavailable
23
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
24
NUT, CASTLE
90171-16001-00
Unavailable
25
PIN, COTTER
91490-30030-00
Unavailable
26
WHEEL COMP.
4KD-25180-00-35
Unavailable
27
TIRE (AT23X8-10 KT401)
94108-1002G-00
Unavailable
30
BALL JOINT SET
4KD-2510F-01-00
Unavailable
33
DOUBLE 0FF SET JOINT
3HN-2510J-00-00
Unavailable
35
. BOOT BAND(DOUBLE OFFSETJOINT)
3HN-2511H-00-00
Unavailable
37
CIRCLIP
2HR-2512H-00-00
Unavailable
40
STEERING,KNUCKLE (R)
4KD-23502-01-00
Unavailable
41
BEARING(2HR)
93306-00612-00
Unavailable
42
OIL SEAL(2HR)
93102-38383-00
Unavailable
43
OIL SEAL(3HN)
93102-38417-00
Unavailable
44
SPACER(2HR)
90560-30325-00
Unavailable
45
COLLAR(3HN)
90387-281V8-00
Unavailable
46
O-RING(22F)
93210-26662-00
Unavailable
47
HUB, FRONT
3HN-25111-10-00
Unavailable
48
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
49
NUT, CASTLE
90171-16001-00
Unavailable
50
PIN, COTTER
91490-30030-00
Unavailable
51
HOLDER, WIRE
4KD-2637G-00-00
Unavailable
52
HOLDER, WIRE 2
4KD-2637H-00-00
Unavailable
53
BOLT, FLANGE
95817-06012-00
Unavailable
54
CAP, WHEEL
52H-2512A-00-00
Unavailable
55
CAP, WHEEL
52H-2512A-00-00
Unavailable
