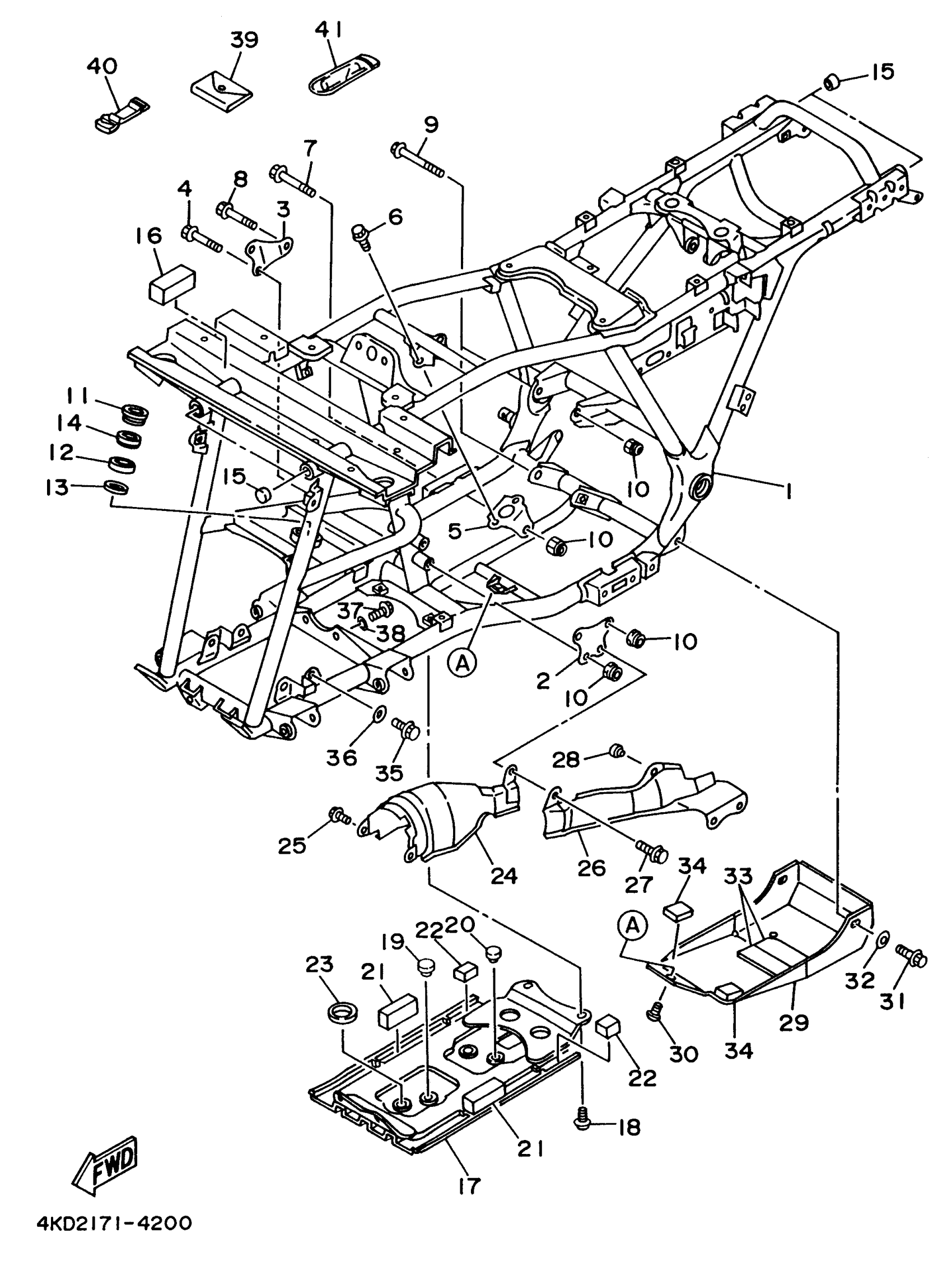

Yamaha YFB250FWH (TIMBERWOLF 2WD) 1996 FRAME Diagram

#

Description
Price

1

FRAME COMP.

4KD-21110-10-R4

Unavailable

2

STAY, ENGINE 3

4KD-21316-00-00

Unavailable

3

STAY, ENGINE 3

4KD-21317-00-00

Unavailable

4

BOLT, FLANGE(JF2)

95817-08080-00

$4.24

5

STAY, ENGINE 2

4KD-21315-00-00

Unavailable

6

BOLT, FLANGE

95817-08012-00

$5.49

7

BOLT, FLANGE

95817-08055-00

$4.21

8

BOLT, WASHER BASED

90105-084A1-00

$10.49

9

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

10

NUT, SELF-LOCKING

90185-08169-00

$8.49

11

OIL SEAL (25X44X6-810)

93102-25081-00

$5.60

12

BEARING

93306-20348-00

$40.99

13

OIL SEAL (25X36X8-334)

93102-25099-00

$13.49

14

HOLDER, BEARING

2GU-23872-00-00

$25.99

15

PLUG, TAPER(3FA)

90336-22056-00

Unavailable

16

SUPPORT, TAIL COVER

56J-2472F-00-00

Unavailable

17

GUARD, ENGINE 1

4KD-2147A-00-00

Unavailable

18

BOLT, BUTTON

92017-08014-00

Unavailable

19

PAD, SEAT

22W-24741-00-00

Unavailable

20

STOPPER MAIN STAND

278-27114-00-00

Unavailable

21

SUPPORT, TAIL COVER

56J-2472F-00-00

Unavailable

22

CAP

1WG-2143A-00-00

Unavailable

23

DAMPER, RUBBER 1

4KD-21485-00-00

Unavailable

24

COVER, SHAFT 1

4KD-2147J-00-00

Unavailable

25

BOLT, FLANGE

95817-06012-00

Unavailable

26

COVER, SHAFT 2

4KD-2147K-00-00

Unavailable

27

BOLT, FLANGE

95817-06016-00

Unavailable

28

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

29

STAY, TRANSFER

4KD-2147H-00-00

Unavailable

30

BOLT, BUTTON

92017-08014-00

Unavailable

31

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

32

WASHER (853)

90201-08326-00

Unavailable

33

DAMPER 2

38V-21486-00-00

Unavailable

34

DAMPER 1

36F-21638-00-00

Unavailable

35

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

36

WASHER PLATE (3L6)

90201-08759-00

Unavailable

37

BOLT(3HN)

97017-08045-00

Unavailable

38

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

39

TOOL KIT

3GH-28100-00-00

Unavailable

40

BAND, TOOL

21V-21376-00-00

Unavailable

41

GAUGE, AIR

1NV-2811A-01-00

Unavailable
