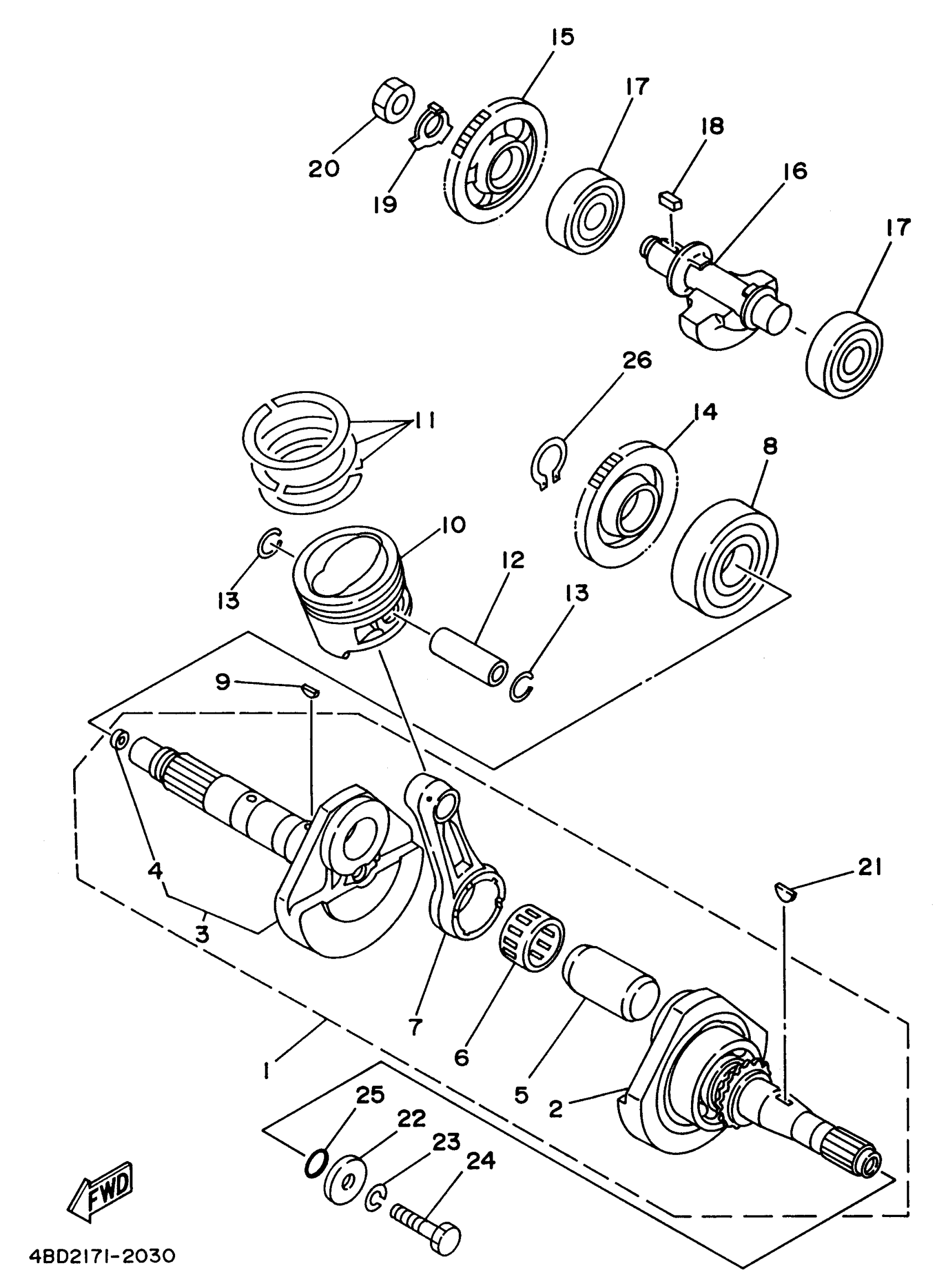

Yamaha YFB250FWH (TIMBERWOLF 2WD) 1996 CRANKSHAFT - PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSY
5XG-E1400-00-00
Unavailable
2
CRANK SUB ASSY 1
29U-11401-09-00
Unavailable
3
. CRANK 2
29U-11422-01-00
Unavailable
4
.. PLUG
90331-09041-00
Unavailable
5
PIN, CRANK 1
5H0-11681-00-00
Unavailable
10
PISTON (STD)
4BD-11631-00-Y0
Unavailable
10
PISTON (0.50MM O/S)
4BD-11636-00-00
Unavailable
10
PISTON (1.00MM O/S)
4BD-11638-00-00
Unavailable
11
PISTON RING SET (STD)
4BD-11610-00-00
Unavailable
11
PISTON RING SET (0.50MM O/S)
4BD-11610-20-00
Unavailable
12
PIN, PISTON
29U-11633-00-00
Unavailable
13
CIRCLIP (1L9)
93450-17044-00
Unavailable
14
GEAR, DRIVE
2HT-11536-00-00
Unavailable
15
GEAR, BALANCE WT
5H0-11531-00-00
Unavailable
16
WEIGHT 1
4BD-11454-00-00
Unavailable
17
BEARING
93306-30443-00
Unavailable
18
KEY, STRAIGHT(34K)
90282-05065-00
Unavailable
19
WASHER, LOCK (15Y)
90215-14205-00
Unavailable
20
NUT (5H0)
90170-14284-00
Unavailable
21
KEY, WOODRUFF
90280-05001-00
Unavailable
22
WASHER, PLATE
90201-10058-00
Unavailable
23
WASHER(6TA)
92907-10100-00
Unavailable
24
BOLT (21V)
90101-10568-00
Unavailable
25
O-RING (538)
93210-16290-00
Unavailable
26
CIRCLIP
99009-26400-00
Unavailable
