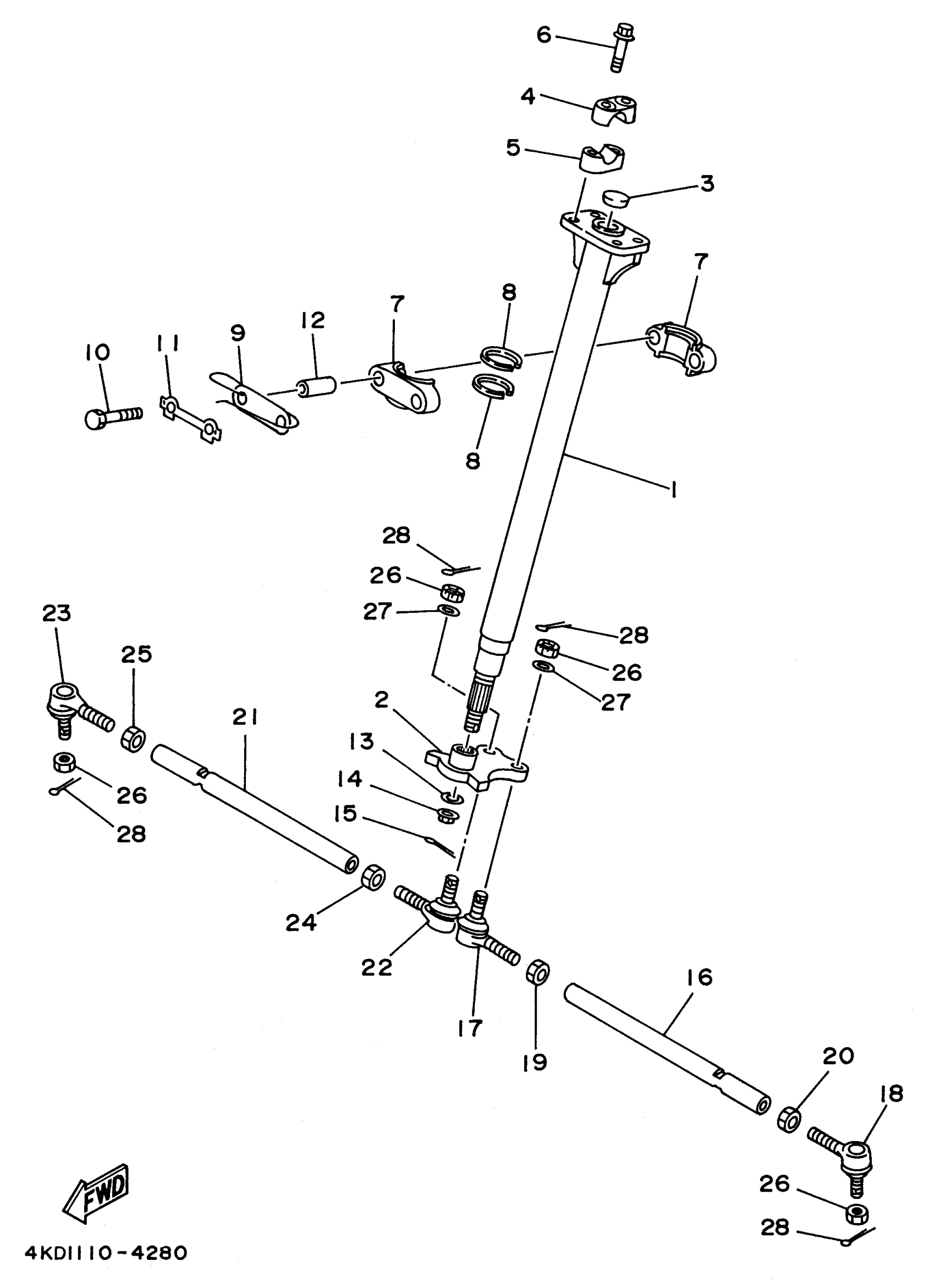

Yamaha YFB250FWH_MNH 1996 STEERING Diagram

#

Description
Price

1

COLUMN,STEERING 2

4KD-23813-01-00

Unavailable

2

ARM, PITMAN

4KD-23816-00-00

Unavailable

3

PLUG, TAPER(2HR)

90336-28053-00

$10.49

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

5

HANDLE, HOLDER

164-23441-01-98

Unavailable

6

BOLT, FLANGE

95817-08050-00

$2.44

7

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

8

OIL SEAL(1UY)

93112-31011-00

$9.49

9

BRACKET, STEERING LOWER

4BD-23868-00-00

Unavailable

10

BOLT, HEXAGON

97017-08060-00

Unavailable

11

WASHER, LOCK 1

1UY-23894-01-00

$7.99

12

COLLAR(85G)

90387-106T4-00

$14.99

13

WASHER, PLATE (35T)

90201-122H1-00

$9.49

14

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

15

CLIP(3YF)

90468-16191-00

$8.49

16

ROD, TIE

2HR-23831-01-00

Unavailable

17

JOINT, UNIVERSAL 1

59V-23841-01-00

Unavailable

18

JOINT, UNIVERSAL 2

59V-23845-01-00

Unavailable

19

NUT (3WP1)

95317-10700-00

Unavailable

20

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

21

ROD, TIE

2HR-23831-01-00

Unavailable

22

JOINT, UNIVERSAL 1

59V-23841-01-00

Unavailable

23

JOINT, UNIVERSAL 2

59V-23845-01-00

Unavailable

24

NUT (3WP1)

95317-10700-00

Unavailable

25

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

26

NUT 3532518200

90171-10004-00

Unavailable

27

WASHER, PLATE

92990-10600-00

Unavailable

28

PIN, COTTER

91490-20025-00

Unavailable
