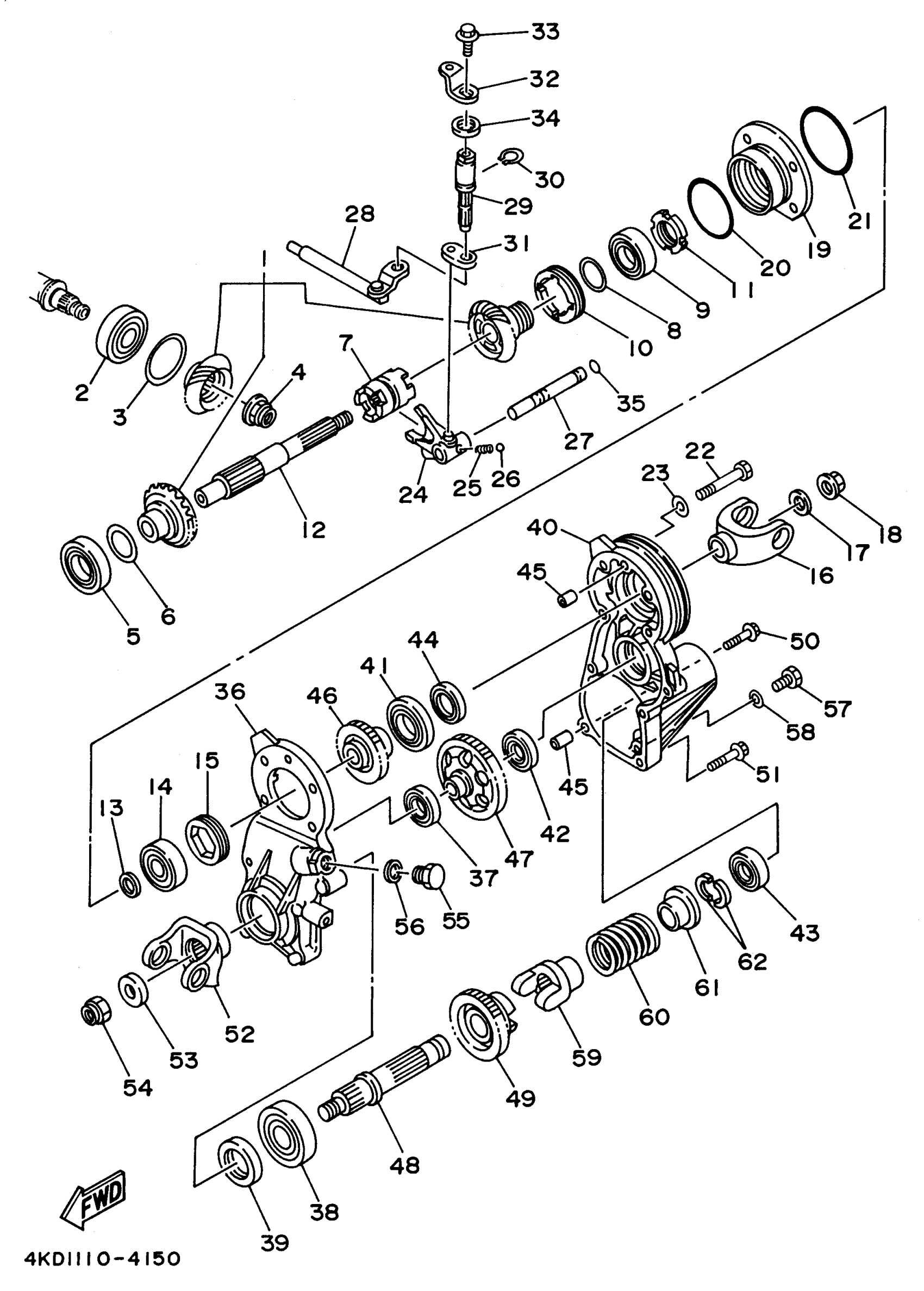

Yamaha YFB250FWH_MNH 1996 MIDDLE DRIVE GEAR Diagram
#
1
MIDDLE GEAR COMP.
4KD-Y1754-00-00
Unavailable
3
SHIM, THRUST (0.2T)
24W-17537-30-00
Unavailable
3
SHIM, THRUST (0.3T)
24W-17537-40-00
Unavailable
4
NUT(3GC)
90179-16651-00
Unavailable
6
SHIM, PINION
52G-17531-51-00
Unavailable
7
CLUTCH, DOG
52G-17285-00-00
Unavailable
8
SHIM (0.2T)
52G-17967-30-00
Unavailable
8
SHIM (0.3T)
52G-17967-40-00
Unavailable
8
SHIM
52G-17967-50-00
Unavailable
9
BEARING(55X)
93306-07801-00
Unavailable
10
NUT(52G)
90179-55464-00
Unavailable
11
NUT(52G)
90179-28465-00
Unavailable
12
SHAFT, MIDDLE DRIVEN
4KD-17553-00-00
Unavailable
13
SHIM, (1.0T)
52G-17968-00-10
Unavailable
13
SHIM, (1.2T)
52G-17968-00-12
Unavailable
13
SHIM
52G-17968-40-00
Unavailable
13
SHIM, (1.6T)
52G-17968-00-16
Unavailable
13
SHIM
52G-17968-00-18
Unavailable
14
BRG,R-B 6303 47MM 115G NK
93306-30302-00
Unavailable
15
NUT
90179-50467-00
Unavailable
16
YOKE, JOINT
4BD-17556-00-00
Unavailable
17
WASHER, PLATE
90201-12027-00
Unavailable
18
NUT(3EF)
90179-12657-00
Unavailable
19
HOUSING, BEARING
4KD-17551-01-00
Unavailable
20
O-RING (24W)
93210-56589-00
Unavailable
21
O-RING(1LX)
93210-65721-00
Unavailable
22
BOLT, HEXAGON
97017-08055-00
Unavailable
23
WASHER(6TA)
92907-08600-00
Unavailable
24
FORK, SHIFT 4
52G-18514-02-00
Unavailable
25
SPRING, COMPRESSION(52G)
90501-101A5-00
Unavailable
26
BALL
93501-04011-00
Unavailable
27
BAR, SHIFT FORK GUIDE
52G-18534-00-00
Unavailable
28
STOPPER SHAFT ASSY
3GC-1812A-00-00
Unavailable
29
SHAFT
3GC-18197-00-00
Unavailable
30
CIRCLIP(13H)
99009-14400-00
Unavailable
31
LEVER, SHIFT
3GC-18451-00-00
Unavailable
32
LEVER
52G-18198-00-00
Unavailable
33
BOLT
90109-06757-00
Unavailable
34
OIL SEAL (3Y1)
93102-14209-00
Unavailable
35
O-RING (1J7)
93210-09350-00
Unavailable
36
CASE, TRANSFER 1
4KD-17541-01-00
Unavailable
37
BEARING
93316-00404-00
Unavailable
38
BEARING(2HR)
93306-30551-00
Unavailable
39
OIL SEAL(2HR)
93105-35027-00
Unavailable
40
CASE, TRANSFER 2
4KD-17542-01-00
Unavailable
41
BEARING
93316-00604-00
Unavailable
42
BEARING
93316-00404-00
Unavailable
43
BEARING (7K2)
93306-00423-00
Unavailable
44
OIL SEAL (30X42X7-1J7)
93101-30084-00
Unavailable
45
PIN, DOWEL(3XW)
91808-16023-00
Unavailable
46
GEAR, TRANSFER DRIVE (23T)
4KD-17586-00-00
Unavailable
47
GEAR, IDLER (32T)
4KD-17587-00-00
Unavailable
48
SHAFT,MDL DRIVEN
22U-17553-01-00
Unavailable
49
GEAR, TRANSFER DRIDEN (26T)
4KD-17588-00-00
Unavailable
50
BOLT, SMALL FLANGE
95027-06035-00
Unavailable
51
BOLT, SMALL FLANGE
95027-06030-00
Unavailable
52
YOKE,JOINT 2
4UM-17576-01-00
Unavailable
53
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
54
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
55
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
56
GASKET
214-11198-01-00
Unavailable
57
BOLT, SMALL FLANGE
95027-08012-00
Unavailable
58
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
59
CAM, DRIVEN
22U-17527-01-00
Unavailable
60
SPRING, COMPRESSION(2HR)
90501-605E1-00
Unavailable
61
HOLDER
22U-17524-00-00
Unavailable
62
WASHER, THRUST
3H5-17529-00-00
Unavailable
