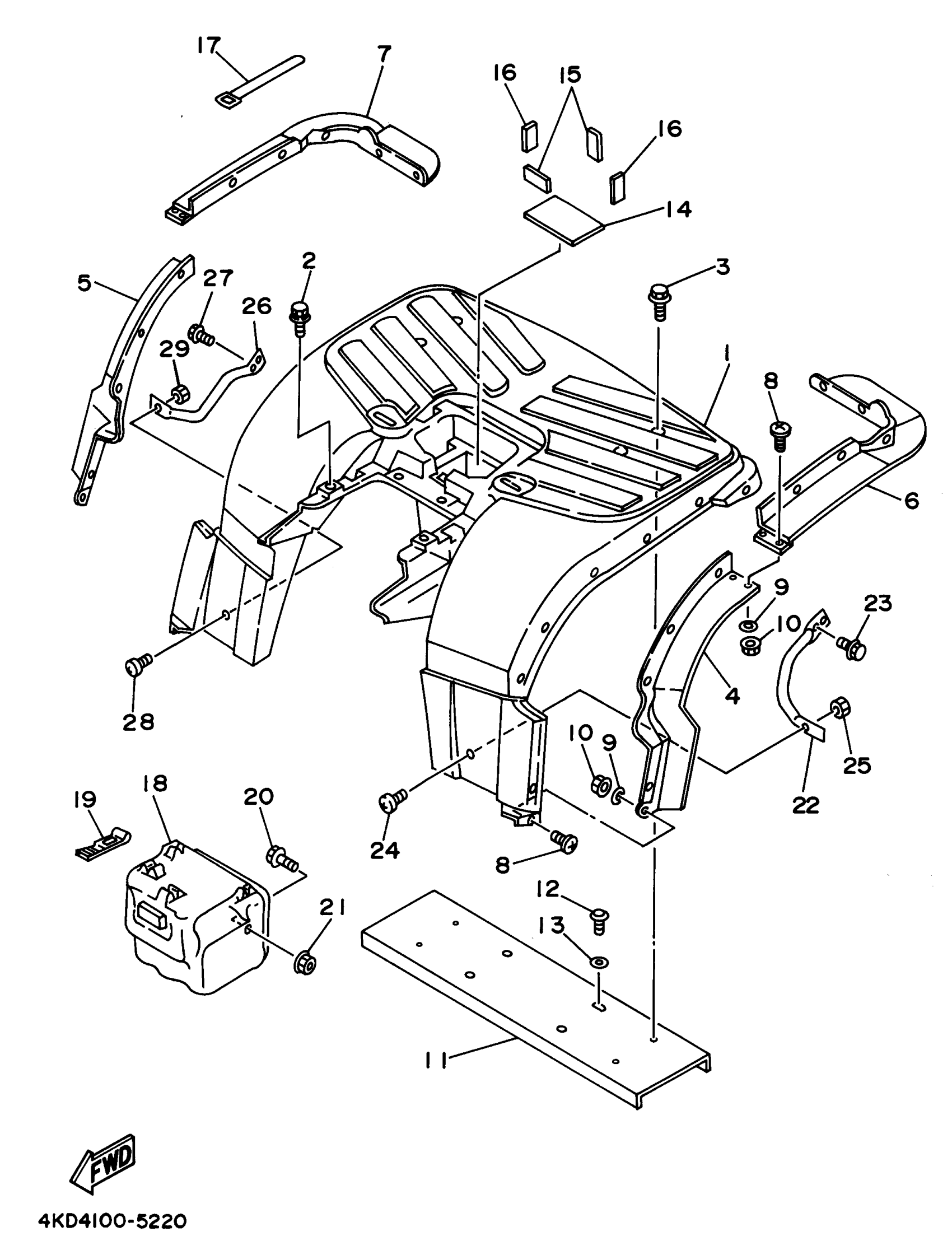

Yamaha YFB250FWG (TIMBERWOLF 4WD) 1995 REAR FENDER 1 Diagram

#

Description
Price

1

FENDER, REAR

4KD-21611-00-00

Unavailable

1

FENDER, REAR

4KD-21611-20-00

Unavailable

2

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

3

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

4

FLAP

4BD-21621-00-00

Unavailable

5

FLAP

4BD-21691-00-00

Unavailable

6

FLAP 3

4BD-2162H-00-00

Unavailable

7

FLAP 4

4BD-2162J-00-00

Unavailable

8

SCREW, BINDING (8J0)

90154-05005-00

$4.73

9

WASHER, PLATE 8067717800

90201-05029-00

$8.49

10

NUT, NYLON

95707-05300-00

$4.24

11

STAY, FENDER 1

4KD-21613-00-00

Unavailable

12

BOLT, BUTTON

92017-08014-00

$8.49

13

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

14

DAMPER 2

4BD-21639-00-00

Unavailable

15

DAMPER

1YW-21638-00-00

Unavailable

16

DAMPER, SIDE COVER

26H-21746-00-00

Unavailable

17

CLAMP(4BD)

90464-48174-00

Unavailable

18

BOX COMP.

4BD-2160A-00-00

Unavailable

19

BAND

59V-21646-00-00

Unavailable

20

BOLT, WITH WASHER

90119-06226-00

Unavailable

21

NUT, W/ WASHER

95707-06600-00

Unavailable

22

STAY, FENDER 3

4BD-21643-00-00

Unavailable

23

BOLT, FLANGE

95817-06012-00

Unavailable

24

SCREW (25G)

90149-06184-00

Unavailable

25

NUT, SELF-LOCKING

95617-06100-00

Unavailable

26

STAY, FENDER 4

4BD-21644-00-00

Unavailable

27

BOLT, FLANGE

95817-06012-00

Unavailable

28

SCREW (25G)

90149-06184-00

Unavailable

29

NUT, SELF-LOCKING

95617-06100-00

Unavailable
