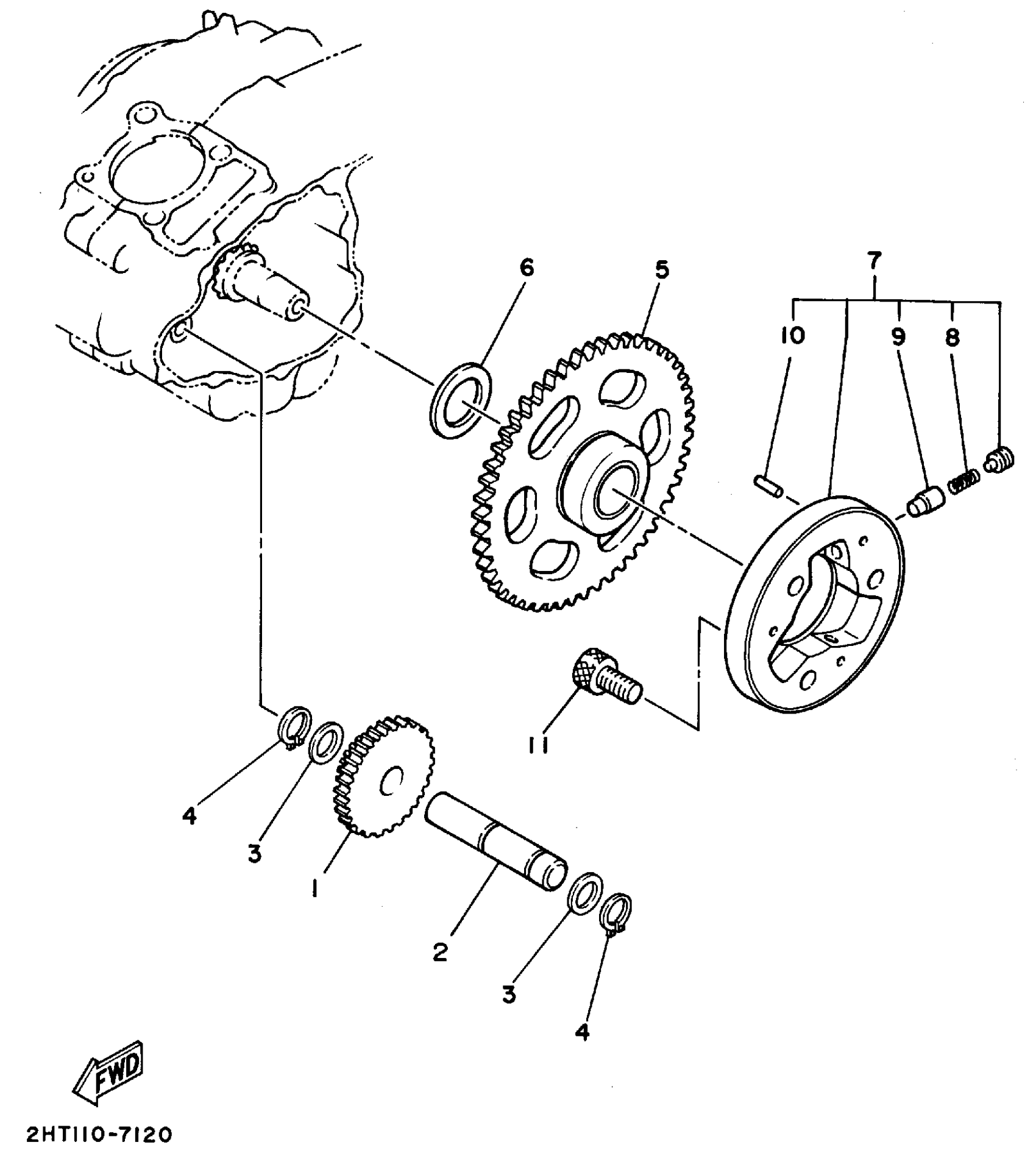

Yamaha YFB250FWF (TIMBERWOLF 4WD) 4KD1 1994 STARTER CLUTCH Diagram

GEAR, IDLER 1

2HT-15512-00-00

Unavailable

SHAFT 1

2HT-15521-00-00

Unavailable

WASHER PLATE 164185720000

90201-12166-00

$5.86

CIRCLIP(10Y)

99009-12400-00

$2.87

GEAR, IDLER 2

5H0-15517-00-00

$145.61

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

STARTER CLUTCH OUTER ASSY

4H7-15580-10-00

$151.15

SPRING, COMPRESSION (4H7)

90501-04596-00

$6.39

CAP, STARTER CLUTCH

1J7-15583-01-00

$15.49

PIN,DOWEL(341)

93615-12088-00

$5.25

BOLT, SOCKET

91317-08016-00

$5.75
