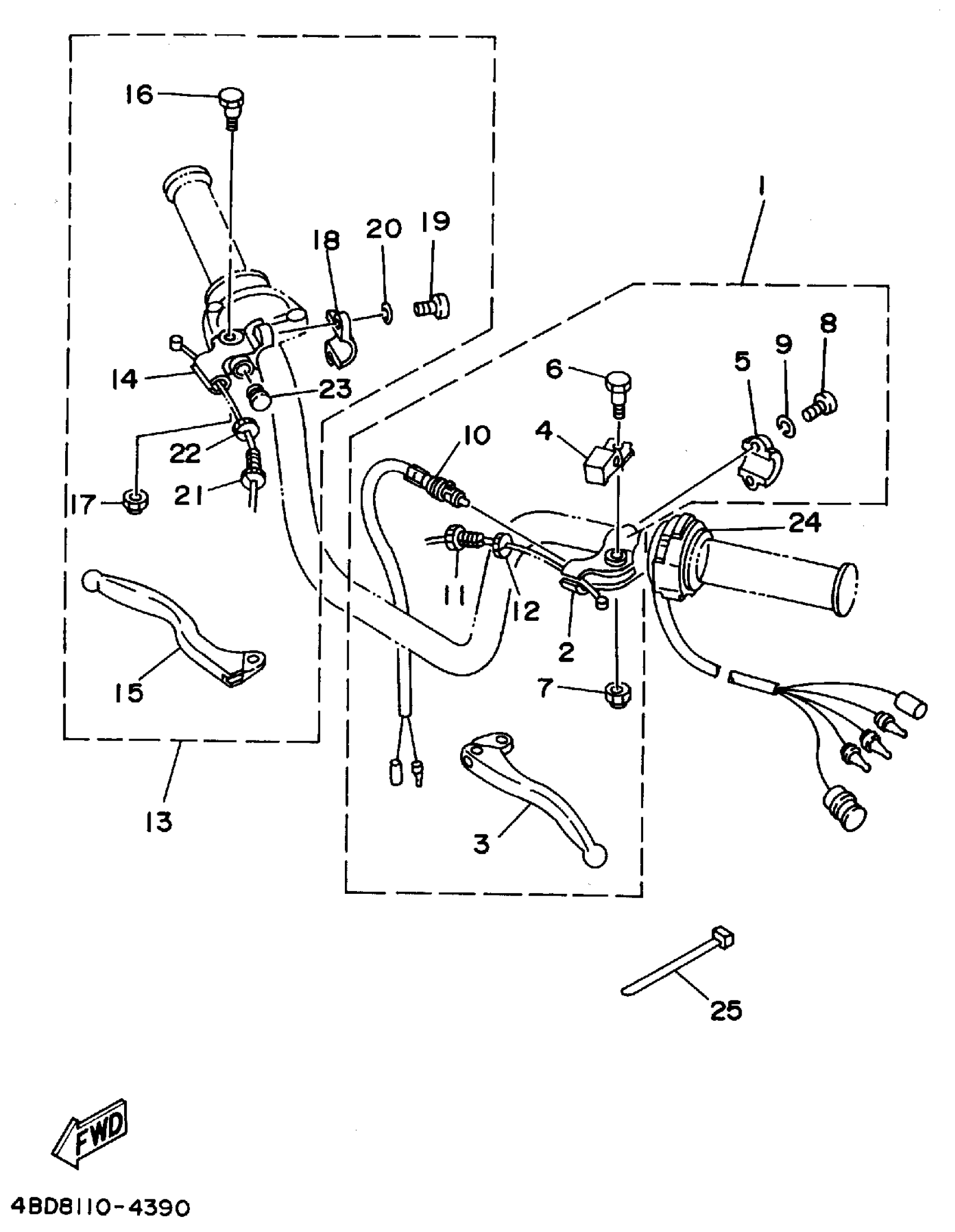

Yamaha YFB250FWF (TIMBERWOLF 4WD) 4KD1 1994 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSY (LEFT)

4BD-82910-02-00

Unavailable

2

HOLDER SET, LEVER 1

99999-03034-00

$93.99

3

LEVER 1

2HT-83912-01-00

$39.99

4

LEVER, LOCK

1YW-83965-00-00

Unavailable

5

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

6

BOLT(3GB)

90109-061F3-00

$7.49

7

NUT, SELF-LOCKING

95617-06100-00

$8.49

8

SCREW, PAN HEAD

98517-05020-00

$4.25

9

WASHER(3SX)

92907-05100-00

$8.49

10

FRONT STOP SWITCH ASSY

1YW-83980-00-00

$70.99

11

BOLT

90123-08002-00

$10.49

12

NUT

90179-08030-00

$5.49

13

LEVER HOLDER ASSY 2

4BD-82920-01-00

Unavailable

14

HOLDER, LEVER 2

3JN-82921-00-00

Unavailable

15

LEVER 2

59V-83922-00-00

$39.99

16

BOLT (2YK1)

90109-06799-00

Unavailable

17

NUT, SELF-LOCKING

95617-06100-00

$8.49

18

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

19

BOLT, HEXAGON

97017-06025-00

Unavailable

20

WASHER, SPRING

92907-06100-00

Unavailable

21

BOLT

90123-08002-00

$10.49

22

NUT

90179-08030-00

$5.49

23

PLUG(2GU)

90338-12192-00

Unavailable

24

SWITCH, HANDLE 3

4BD-83973-19-00

Unavailable

25

BAND, SWITCH CORD

437-83936-01-00

Unavailable
