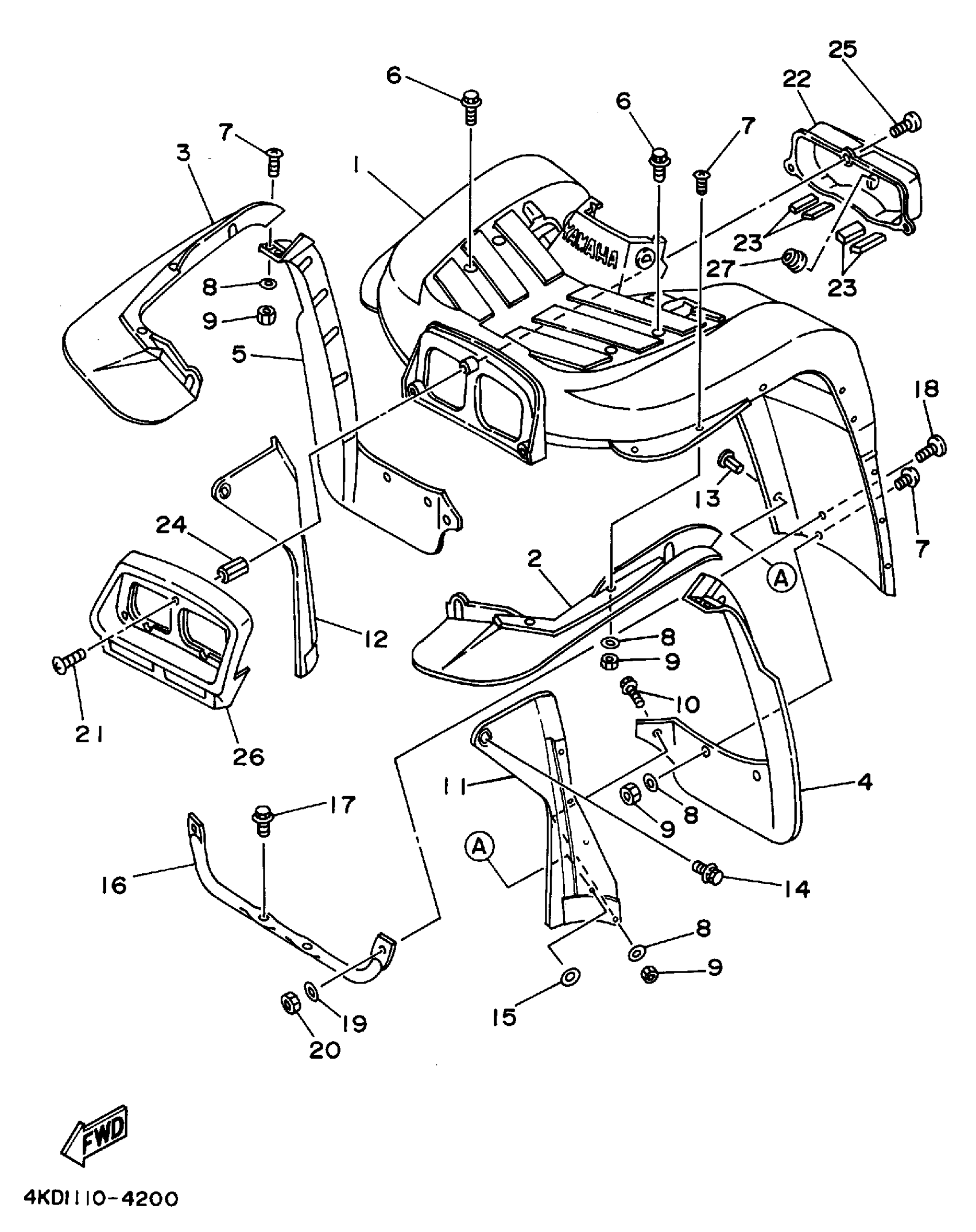

Yamaha YFB250FWF (TIMBERWOLF 4WD) 4KD1 1994 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4BD-W2151-B0-00

Unavailable

1

FENDER, FRONT

4BD-21511-E0-00

Unavailable

2

FENDER, OVER

4BD-21551-00-00

Unavailable

3

FENDER, OVER 2

4BD-21555-00-00

Unavailable

4

FENDER, OVER 3

4BD-21559-00-00

Unavailable

5

FENDER, OVER 4

4BD-21560-00-00

Unavailable

6

BOLT, WITH WASHER(J38)

90119-08119-00

$7.49

7

SCREW, BINDING (8J0)

90154-05005-00

$4.73

8

WASHER, PLATE 8067717800

90201-05029-00

$8.49

9

NUT, NYLON

95707-05300-00

$4.24

10

SCREW, BINDING (8R1)

90154-05011-00

$4.29

11

FENDER, INNER

4KD-21552-00-00

Unavailable

12

FENDER, INNER 2

4KD-21553-00-00

Unavailable

13

RIVET (739 BRAKE PEDAL)

90267-63047-00

$9.49

14

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

15

WASHER, PLATE(J41)

90201-076J4-00

Unavailable

16

STAY, FENDER 1

4KD-21513-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

SCREW, BIND (705)

98980-06016-00

Unavailable

19

WASHER, PLATE

90201-06M08-00

Unavailable

20

NUT, SELF-LOCKING

95617-06100-00

Unavailable

21

SCREW, BINDING (10V)

90154-05013-00

Unavailable

22

BODY, HEADLIGHT

2HR-84111-00-00

Unavailable

23

DAMPER 1

83R-14425-00-00

Unavailable

24

NUT

90170-05362-00

Unavailable

25

SCREW, BINDING

98907-05014-00

Unavailable

26

PANEL, FRONT

2HR-23391-00-00

Unavailable

27

. GROMMET

90480-25461-00

Unavailable
