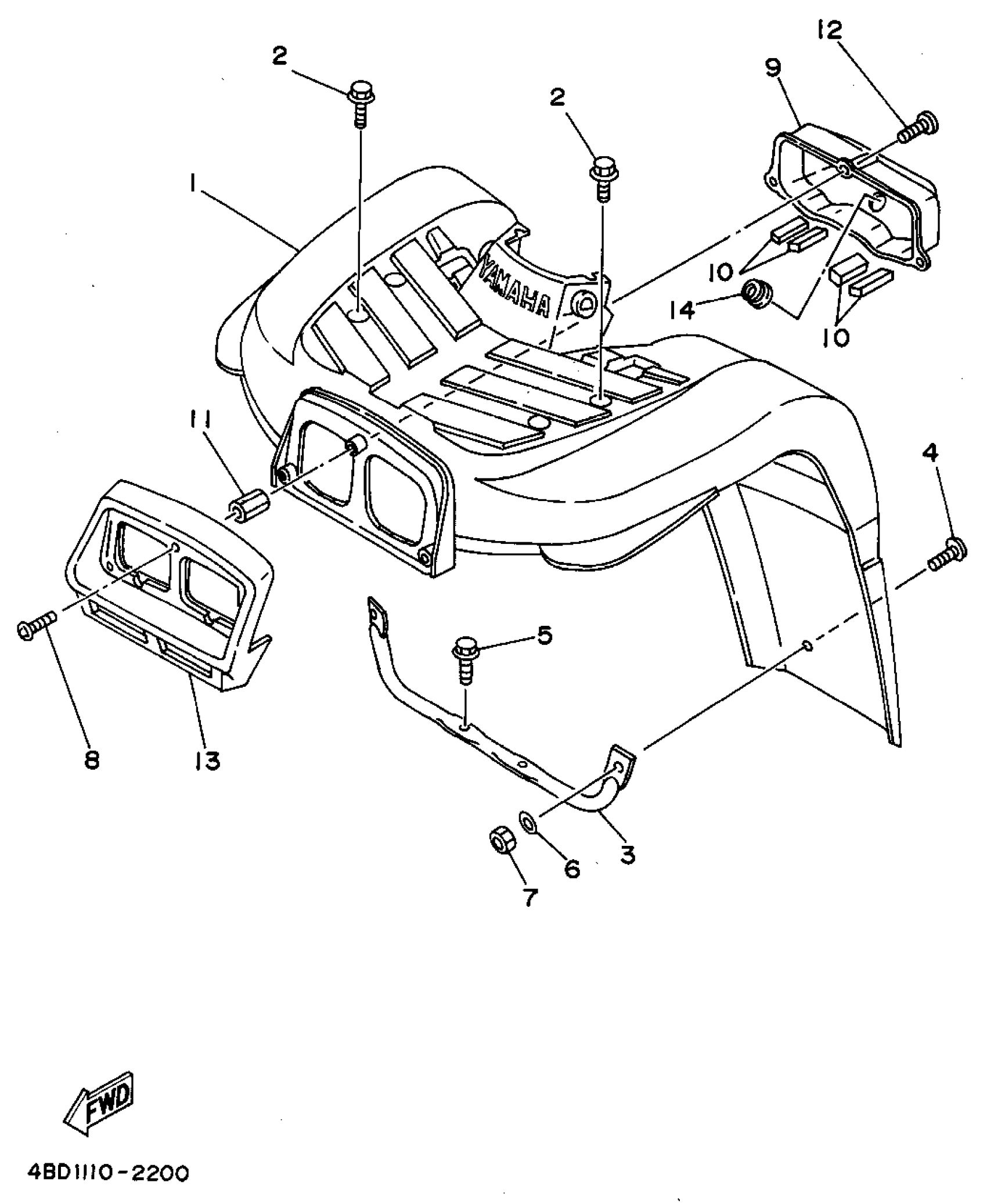

Yamaha YFB250F (TIMBERWOLF 2WD) 4BD8 1994 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4BD-21511-40-00

Unavailable

1

FENDER,FRONT

4BD-21511-50-00

Unavailable

2

BOLT, WITH WASHER(J38)

90119-08119-00

$7.49

3

STAY, FENDER 1

4BD-21513-00-00

Unavailable

4

SCREW, BIND (705)

98980-06016-00

$8.49

5

BOLT, FLANGE

95817-06012-00

$1.43

6

WASHER, PLATE

90201-06M08-00

Unavailable

7

NUT, SELF-LOCKING

95617-06100-00

$8.49

8

SCREW, BINDING (10V)

90154-05013-00

$5.60

9

BODY, HEADLIGHT

2HR-84111-00-00

Unavailable

10

DAMPER 1

83R-14425-00-00

$7.99

11

NUT

90170-05362-00

Unavailable

12

SCREW, BINDING

98907-05014-00

$8.49

13

PANEL, FRONT

2HR-23391-00-00

Unavailable

14

. GROMMET

90480-25461-00

Unavailable
