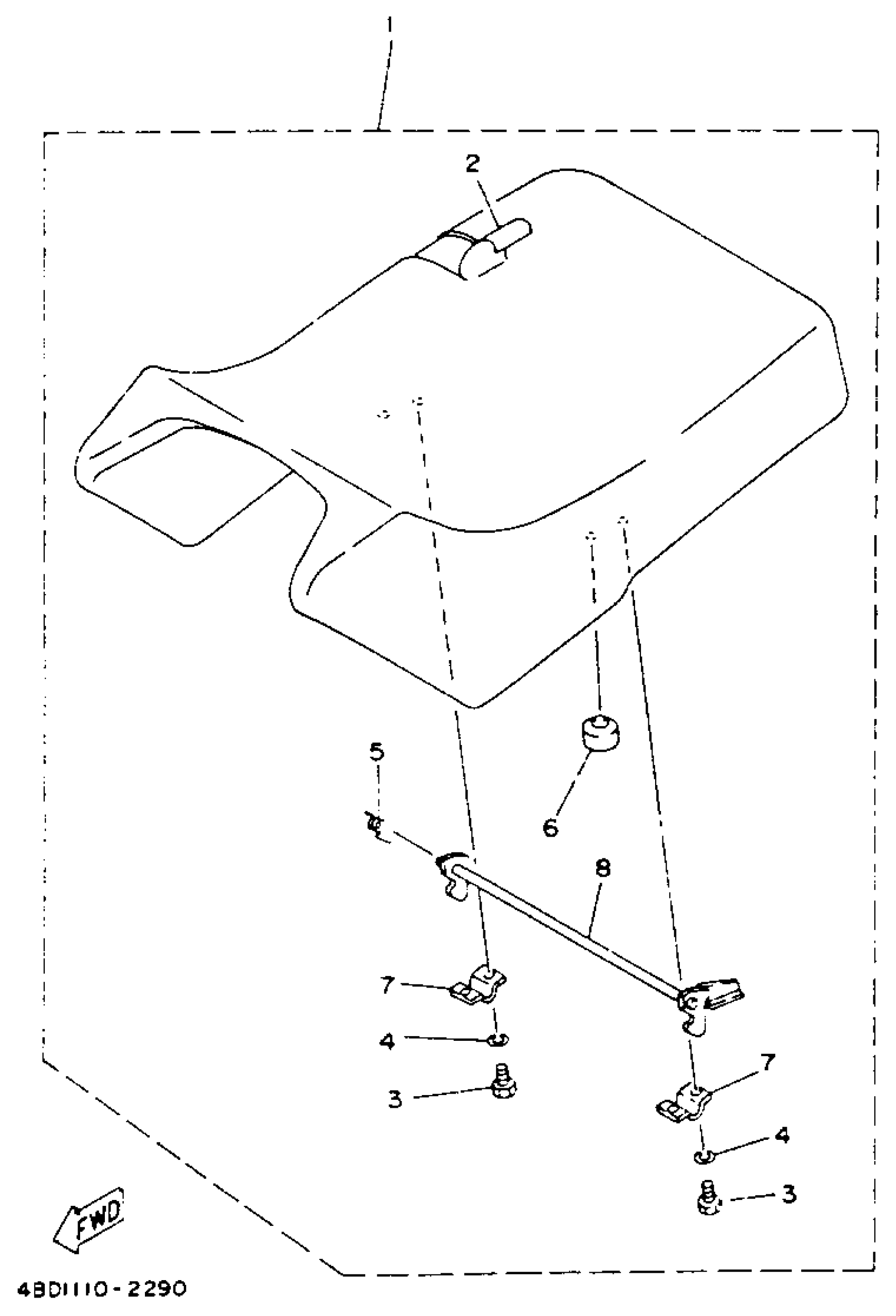

Yamaha YFB250E (TIMBERWOLF 2WD) 1993 SEAT Diagram

SINGLE SEAT ASSEMBLY

4BD-24710-20-00

Unavailable

SINGLE SEAT ASSEMBLY

4BD-24710-30-00

Unavailable

. COVER, DOUBLE SEAT

4BD-24731-20-00

Unavailable

. COVER, SEAT

4BD-24731-30-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, SPRING

92995-06100-00

Unavailable

SPRING, TORSION (21V)

90508-23567-00

$8.49

STOPPER, MAIN STAND

371-27114-00-00

$7.99

. BRACKET, SEAT LEVER

59V-24775-00-00

Unavailable

LEVER,SEAT

4BD-24776-01-00

Unavailable
