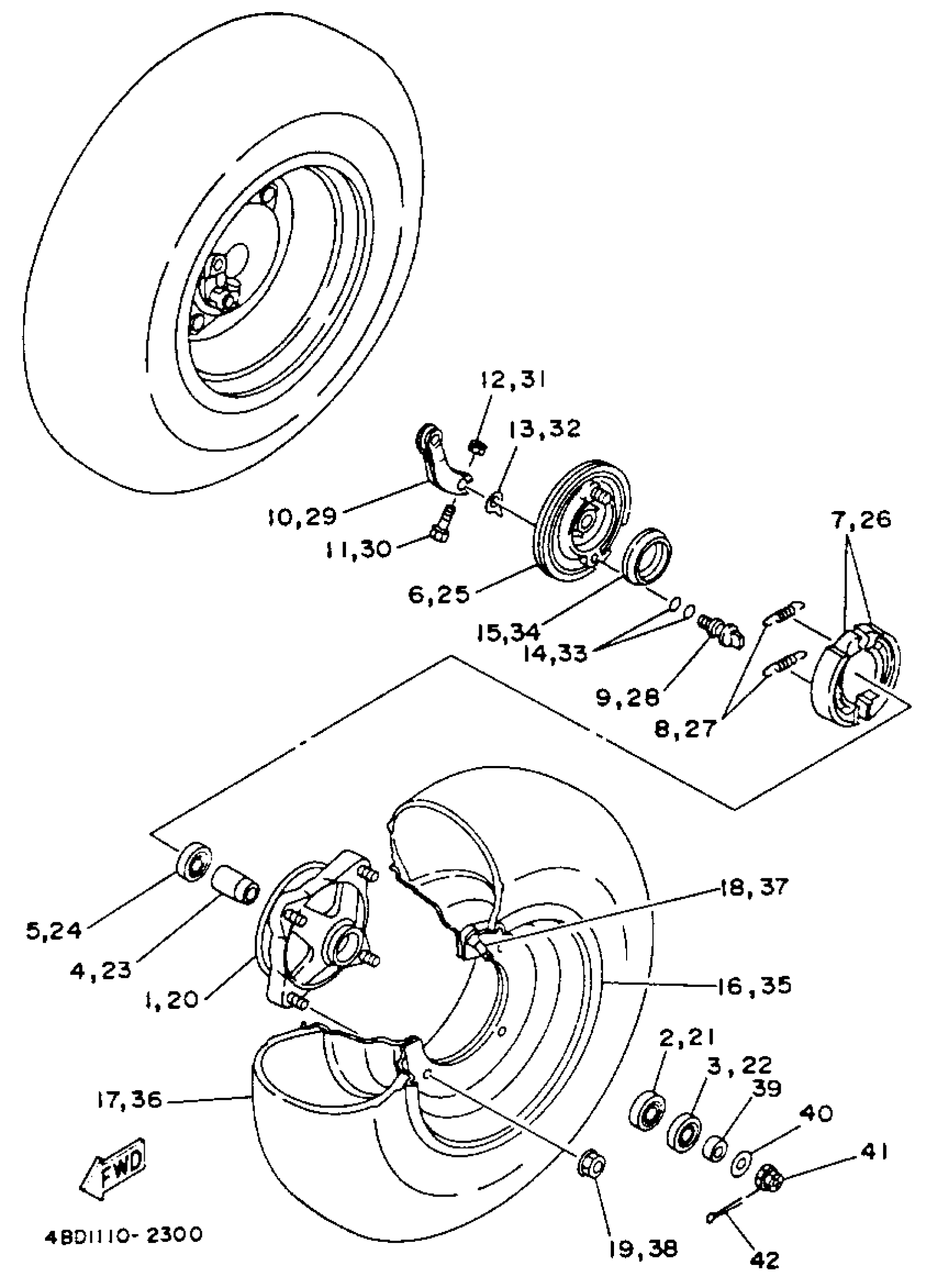

Yamaha YFB250E_MNH 1993 FRONT WHEEL Diagram
#
Description
Price
1
HUB, FRONT
2XJ-25111-00-00
Unavailable
6
PLATE, BRAKE SHOE
2XJ-25121-00-00
Unavailable
9
CAMSHAFT
5G3-25351-02-00
Unavailable
10
LEVER, CAMSHAFT 1
52H-25155-00-00
Unavailable
12
NUT, HEXAGON
95380-06600-00
Unavailable
13
PLATE, INDICATOR
52H-2513A-00-00
Unavailable
15
OIL SEAL
93105-49023-00
Unavailable
16
WHEEL COMP.
2XJ-25180-00-35
Unavailable
17
TIRE (AT22X7-10 KT701)
94107-102Y4-00
Unavailable
18
VALVE, RIM(2GH)
93900-00030-00
Unavailable
19
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
20
HUB, FRONT
2XJ-25111-00-00
Unavailable
25
PLATE, BRAKE SHOE 2
2XJ-25169-00-00
Unavailable
28
CAMSHAFT
5G3-25351-02-00
Unavailable
29
LEVER, CAMSHAFT 2
52H-25156-00-00
Unavailable
31
NUT, HEXAGON
95380-06600-00
Unavailable
32
PLATE, INDICATOR
52H-2513A-00-00
Unavailable
34
OIL SEAL
93105-49023-00
Unavailable
35
WHEEL COMP.
2XJ-25180-00-35
Unavailable
36
TIRE (AT22X7-10 KT701)
94107-102Y4-00
Unavailable
37
VALVE, RIM(2GH)
93900-00030-00
Unavailable
38
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
39
COLLAR(1UY)
90387-150R1-00
Unavailable
40
WASHER PLATE 248181370000
90201-14220-00
Unavailable
41
NUT, CASTLE(2UJ)
90171-14056-00
Unavailable
42
PIN, COTTER
91490-30030-00
Unavailable
