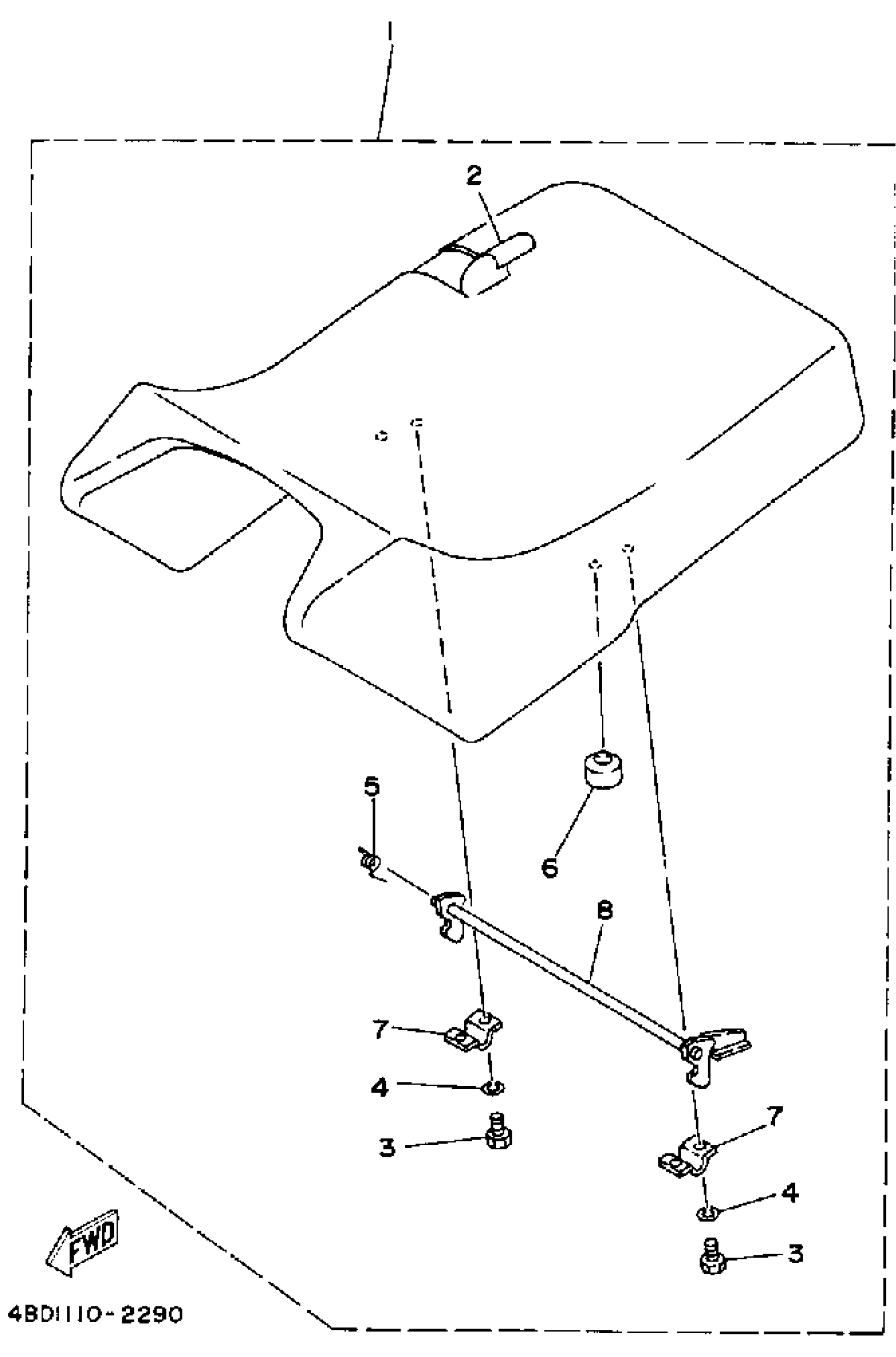

Yamaha YFB250D (TIMBERWOLF 2WD) 1992 SEAT Diagram

#

Description

Price

1

SINGLE SEAT ASSY

4BD-24710-50-00

Unavailable

1

SINGLE SEAT ASSEMBLY

4BD-24710-10-00

Unavailable

2

. COVER, SEAT

4BD-24731-00-00

Unavailable

2

. COVER, SEAT

4BD-24731-10-00

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

WASHER, SPRING

92995-06100-00

Unavailable

5

SPRING, TORSION (21V)

90508-23567-00

$8.49

6

STOPPER, MAIN STAND

371-27114-00-00

$7.99

7

. BRACKET, SEAT LEVER

59V-24775-00-00

Unavailable

8

LEVER,SEAT

4BD-24776-01-00

Unavailable
