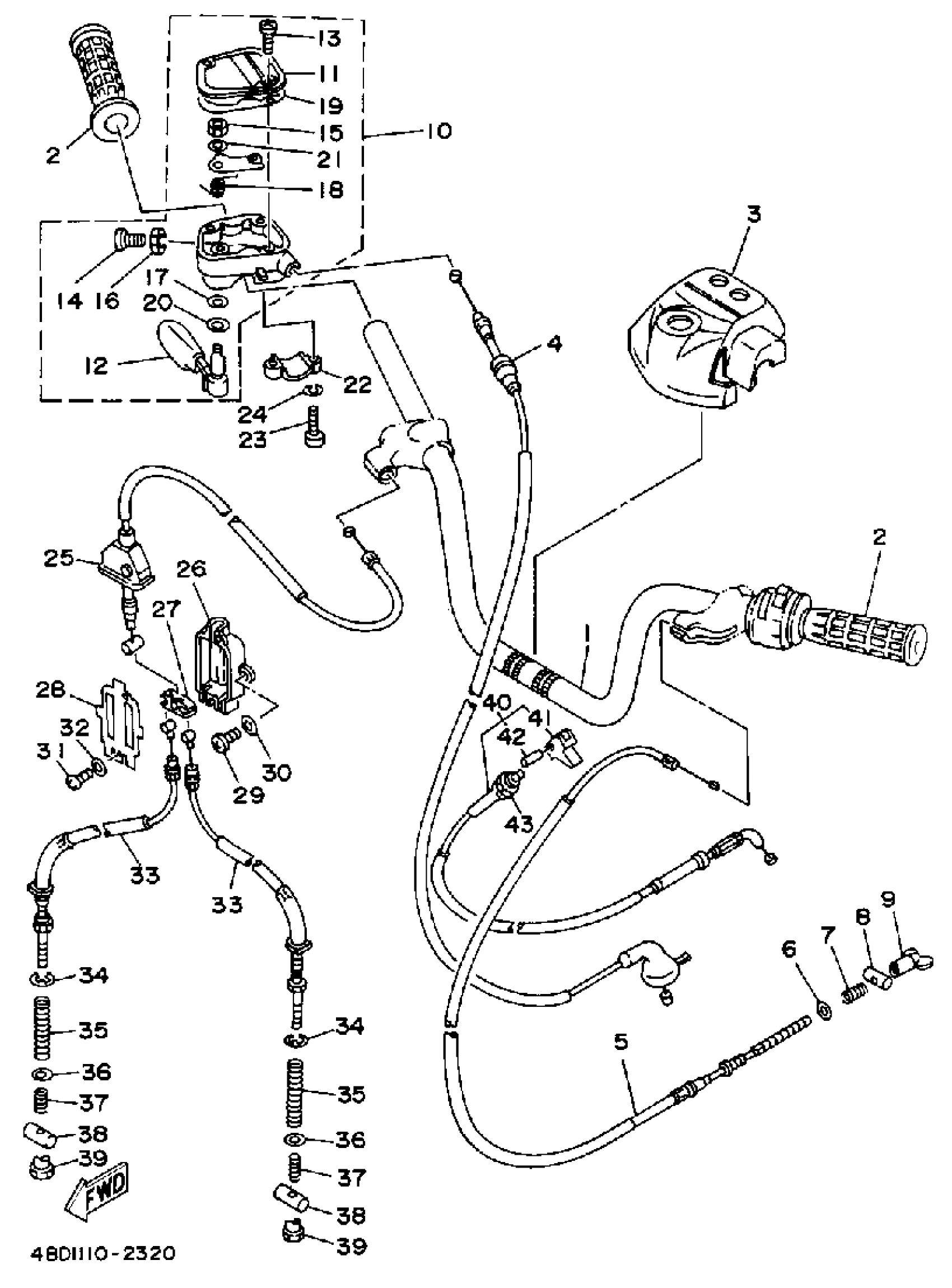

Yamaha YFB250D_MNH (TIMBERWOLF 2WD) 1992 HANDLEBAR-CABLE Diagram
#
1
HANDLEBAR
4BD-26111-00-00
Unavailable
3
PROTECTOR,HANDLEBAR
4BD-26124-01-00
Unavailable
6
WASHER, PLATE(2EX)
90202-08175-00
Unavailable
10
THROTTLE LEVER ASSY
1NV-26250-01-00
Unavailable
11
. CAP, GEAR
1NV-2628F-00-00
Unavailable
12
LEVER, THROTTLE
1NV-2625G-02-00
Unavailable
16
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
17
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
18
SPRING
1NV-26304-00-00
Unavailable
19
. GASKET
1NV-2628G-00-00
Unavailable
20
WASHER
1NV-26129-00-00
Unavailable
21
. WASHER, SPECIAL
53L-83909-00-00
Unavailable
22
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
24
WASHER(3SX)
92907-05100-00
Unavailable
25
CABLE, BRAKE 4
4BD-26373-01-00
Unavailable
26
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
27
JOINT, CABLE
52H-26347-01-00
Unavailable
28
PLATE
52H-2631G-00-00
Unavailable
29
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
30
WASHER(3SX)
92907-03600-00
Unavailable
31
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
32
WASHER, PLAIN (646)
92990-05600-00
Unavailable
33
CABLE, BRAKE
4BD-26361-01-00
Unavailable
34
CIRCLIP(53L)
99001-06600-00
Unavailable
35
SPRING, COMPRESSION(52H)
90501-123A0-00
Unavailable
36
WASHER(52H)
90209-06265-00
Unavailable
37
SPRING, COMPRESSION (29U)
90501-10782-00
Unavailable
39
NUT, WING (1K5)
90175-06013-00
Unavailable
40
CABLE, STARTER 1
4BD-26331-01-00
Unavailable
41
LEVER
21V-26374-00-00
Unavailable
42
PIN, SPRING (663)
91690-30010-00
Unavailable
43
Nut
8G8-26333-00-00
Unavailable
