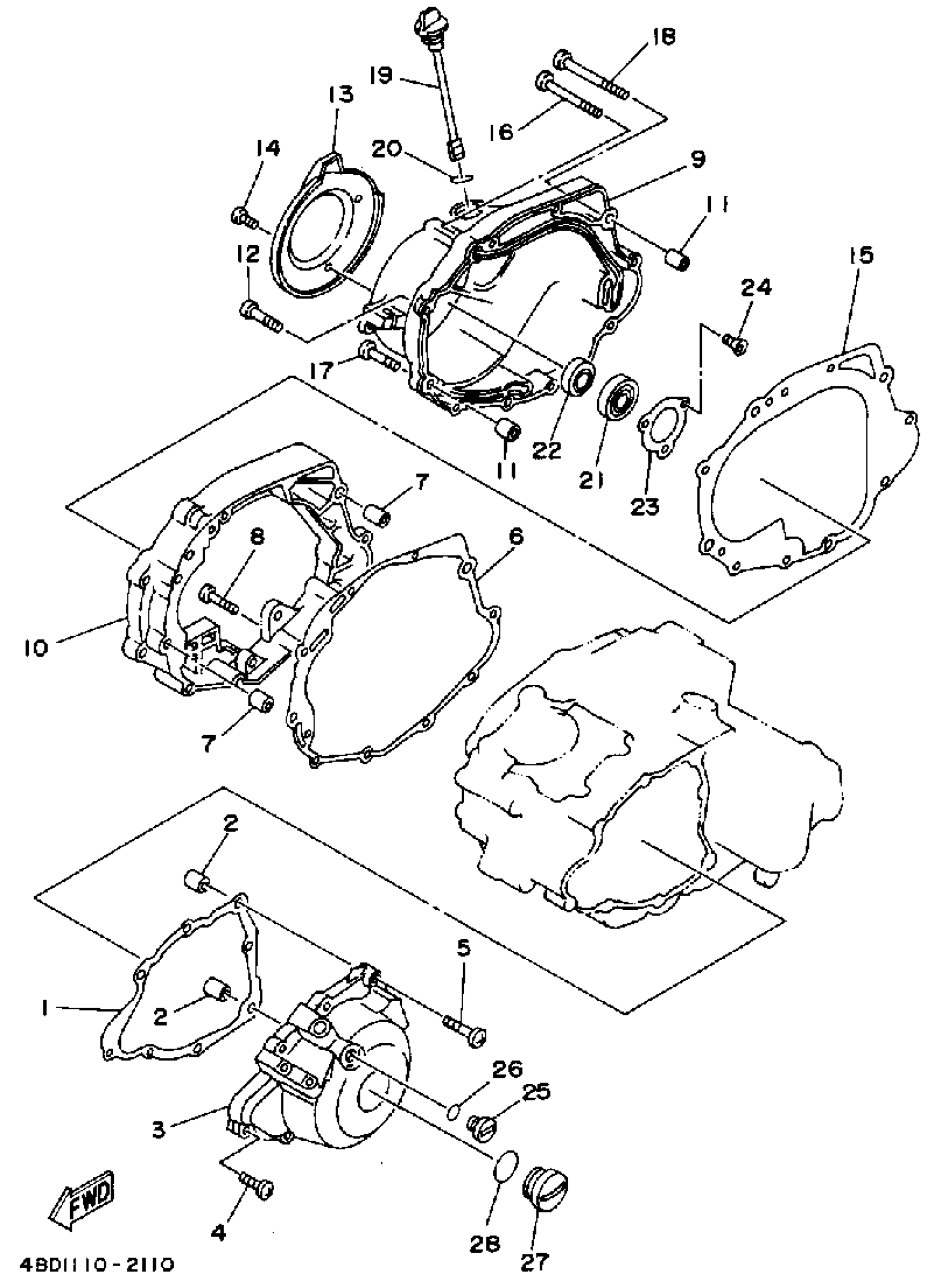

Yamaha YFB250D_MNH (TIMBERWOLF 2WD) 1992 CRANKCASE COVER 1 Diagram

#

Description
Price

1

GASKET, CRANKCASE COVER 1

4BD-15451-01-00

$18.49

2

PIN, DOWEL

99530-12016-00

$4.89

3

COVER, CRANKCASE L

4BD-15411-00-00

Unavailable

4

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

5

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

6

GASKET, CRANKCASE COVER 3

4BD-15462-00-00

$31.99

7

PIN, DOWEL

99530-12016-00

$4.89

8

SCREW PAN HEAD

98580-06040-00

$8.49

9

COVER, CRANKCASE 3

4BD-15431-02-00

Unavailable

10

SPACER, ENGINE MOUNT

4BD-15317-00-00

Unavailable

11

PIN, DOWEL

99530-12016-00

$4.89

12

SCREW PAN HEAD

98580-06040-00

$8.49

13

PROTECTOR, COVER

21V-15499-00-00

Unavailable

14

SCREW, BINDING

98907-06014-00

$7.99

15

GASKET, CARBURETOR COVER 2

4BD-15463-01-00

$33.99

16

SCREW PAN HEAD

98580-06570-00

Unavailable

17

SCREW PAN HEAD

98580-06040-00

$8.49

18

SCREW, PAN HEAD

98580-06580-00

Unavailable

19

PLUG, OIL LEVEL

1UY-15362-01-00

Unavailable

20

O-RING (646)

93210-19123-00

Unavailable

21

BEARING(37F)

93306-20335-00

Unavailable

22

OIL SEAL (21V)

93101-17113-00

Unavailable

23

PLATE, BEARING COVER

21V-15381-00-00

Unavailable

24

SCREW, FLAT

98707-06018-00

Unavailable

25

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

Unavailable

26

O-RING (2H9)

93210-14369-00

Unavailable

27

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

Unavailable

28

O-RING (341)

93210-32172-00

Unavailable
