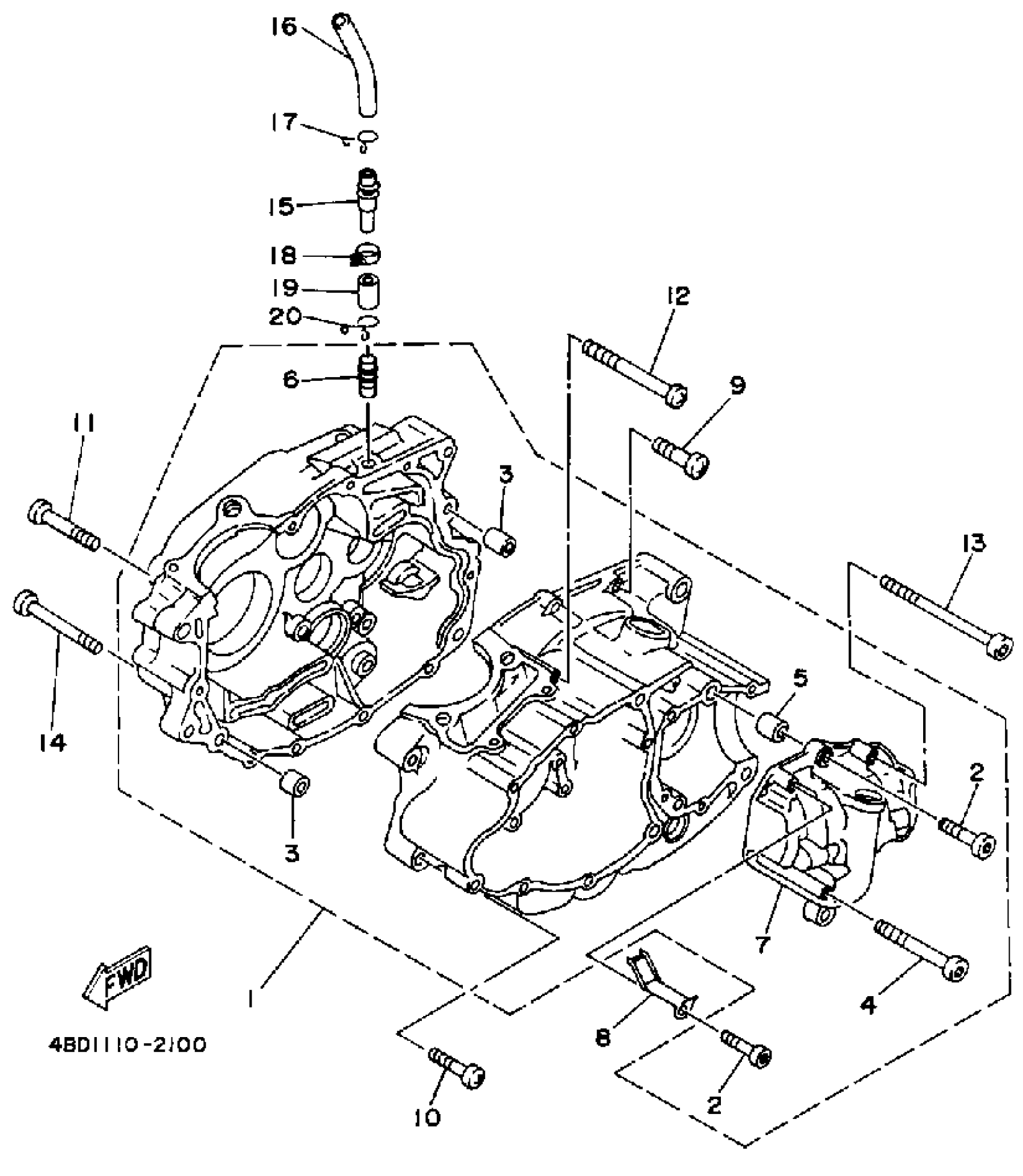

Yamaha YFB250D_MNH (TIMBERWOLF 2WD) 1992 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSEMBLY
4BD-15100-00-00
Unavailable
4
BOLT, SOCKET
91317-06085-00
Unavailable
7
COVER, GENERATOR
(4BD-15415-09-00)
Unavailable
9
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
11
SCREW, BIND (JH1)
98580-06560-00
Unavailable
13
BOLT
91317-06160-00
Unavailable
15
PIPE, BREATHER 2
59V-11167-00-00
Unavailable
16
HOSE
90445-131J9-00
Unavailable
17
CLIP (4X4)
90467-12052-00
Unavailable
18
CLIP (5K4)
90467-14057-00
Unavailable
19
HOSE (L60)
90445-16641-00
Unavailable
20
CLIP (371)
90467-14015-00
Unavailable
