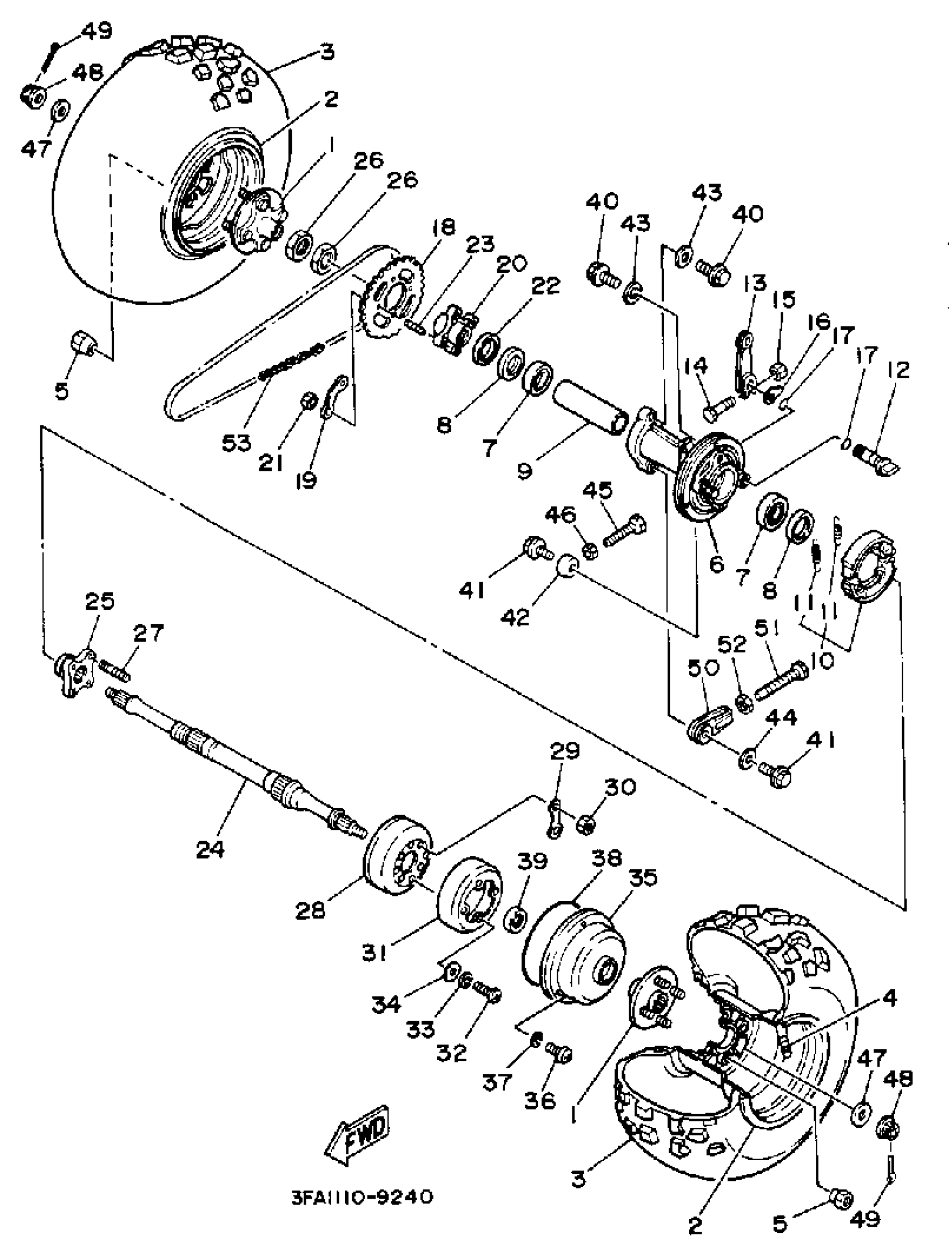

Yamaha YFA1W (BREEZE) 1989 REAR WHEEL Diagram
#
1
COLLAR, WHEEL
1C5-25383-00-00
Unavailable
3
TIRE (AT22X10-8 DI-K735A T/L N
94110-08009-00
Unavailable
6
HUB, REAR
3FA-25311-00-00
Unavailable
11
SPRING (5T9)
90506-17328-00
Unavailable
15
NUT, HEXAGON
95380-06600-00
Unavailable
16
PLATE, INDICATOR
23F-2533A-00-00
Unavailable
17
O-RING (26H)
93210-14579-00
Unavailable
18
SPROCKET, DRIVEN (32T)
3FA-25432-20-00
Unavailable
19
WASHER
10V-25412-00-00
Unavailable
20
COLLAR, SPROCKET AXLE
3FA-25386-00-00
Unavailable
21
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
22
COVER, HUB DUST
5V6-25367-00-00
Unavailable
23
BOLT, STUD(1UY)
90116-10483-00
Unavailable
24
AXLE, WHEEL
3FA-25381-10-00
Unavailable
25
BOSS
3FA-25343-00-00
Unavailable
26
NUT
90170-33011-00
Unavailable
27
BOLT, STUD(2XJ)
90116-08507-00
Unavailable
28
DRUM, BRAKE
3FA-2531E-00-00
Unavailable
29
WASHER, LOCK
40E-25834-00-00
Unavailable
30
NUT(6L2)
95333-08600-00
Unavailable
31
RING 2
3FA-25336-00-00
Unavailable
32
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
33
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
34
WASHER, PLAIN (646)
92990-05600-00
Unavailable
35
COVER 1
55X-25715-00-00
Unavailable
36
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
38
O-RING(55X)
93211-63688-00
Unavailable
39
OIL SEAL (705)
93102-35191-00
Unavailable
40
BOLT, FLANGE
90105-12573-00
Unavailable
41
BOLT, FLANGE
90105-10585-00
Unavailable
42
COLLAR(3FA)
90387-113W0-00
Unavailable
43
WASHER, PLATE (8K2)
90201-120A5-00
Unavailable
44
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
45
BOLT
90101-08060-00
Unavailable
46
NUT(6L2)
95333-08600-00
Unavailable
47
WASHER, PLATE
90201-140A6-00
Unavailable
48
NUT, CASTLE (29U)
90171-14037-00
Unavailable
49
PIN, COTTER
91490-30030-00
Unavailable
50
PULLER, CHAIN 1
1UY-25388-00-00
Unavailable
51
BOLT(1KT)
90101-08647-00
Unavailable
52
NUT(6L2)
95333-08600-00
Unavailable
53
CHAIN
94582-02074-00
Unavailable
