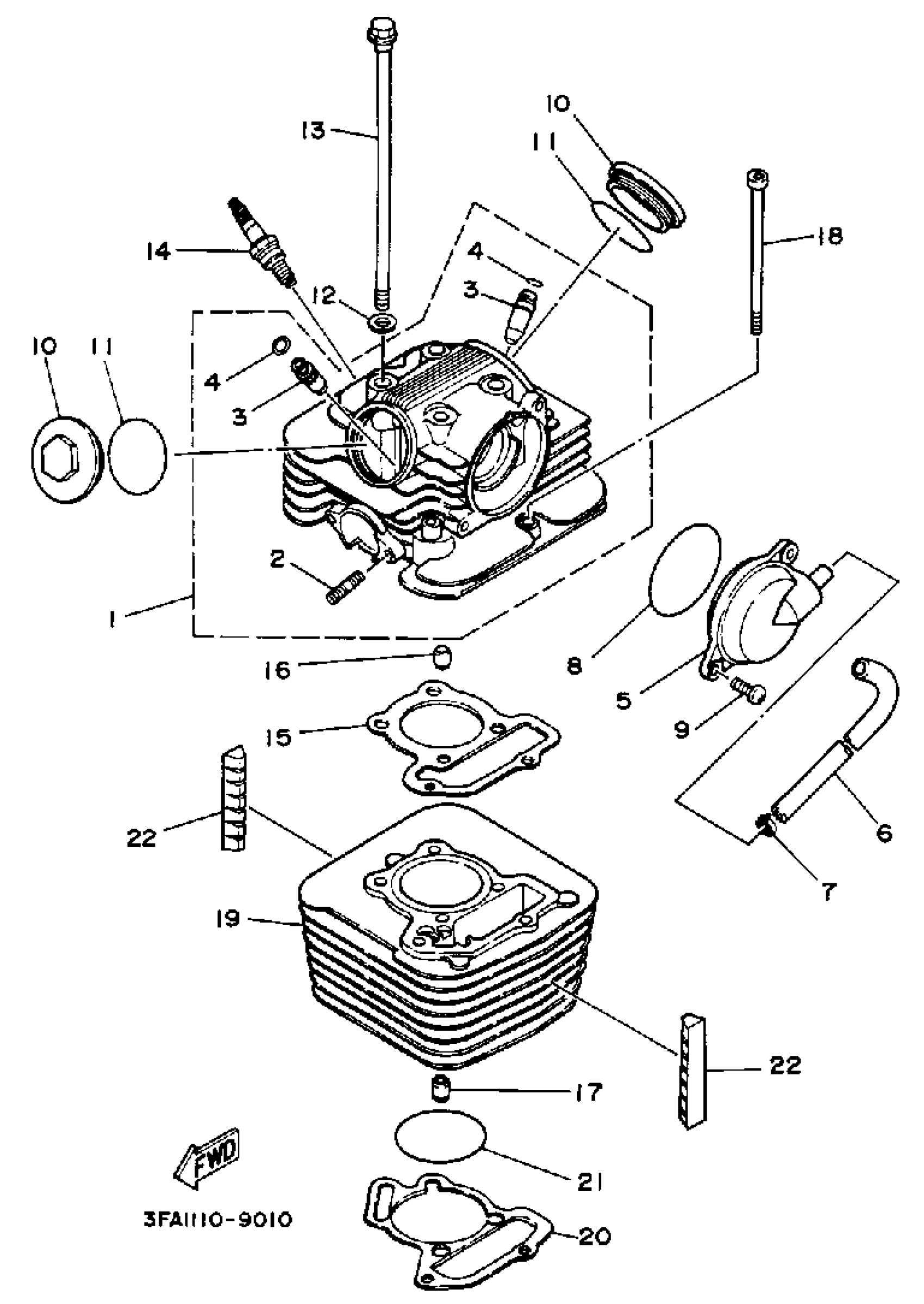

Yamaha YFA1W (BREEZE) 1989 CYLINDER HEAD-CYLINDER Diagram

CYLINDER HEAD ASSY

3FA-11102-04-00

Unavailable

BOLT, STUD 3

95617-06625-00

$8.49

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$88.99

CIRCLIP (22F)

93440-10109-00

$8.49

BREATHER ASSY

3FA-11160-00-00

Unavailable

PIPE, BREATHER 1

3FA-11166-00-00

Unavailable

CLIP(3YX)

90467-13133-00

$8.49

O-RING (22F)

93210-63556-00

$5.60

SCREW, PAN

98507-06014-00

$8.49

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$20.99

O-RING(55X)

93210-44704-00

$7.49

WASHER, PLATE

90201-080L7-00

$4.82

BOLT, FLANGE

90105-08181-00

$8.49

C7HSA NGK 4PK

C7H-SA000-00-00

Unavailable

GASKET, CYLINDER HEAD 1

50M-11181-00-00

$38.99

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

BOLT, SOCKET

91317-06110-00

Unavailable

CYLINDER

3FA-11310-00-00

Unavailable

GASKET, CYLINDER

3FA-11351-10-00

Unavailable

O-RING

93210-53679-00

Unavailable

ABSORBER 2

50M-11162-00-00

Unavailable
