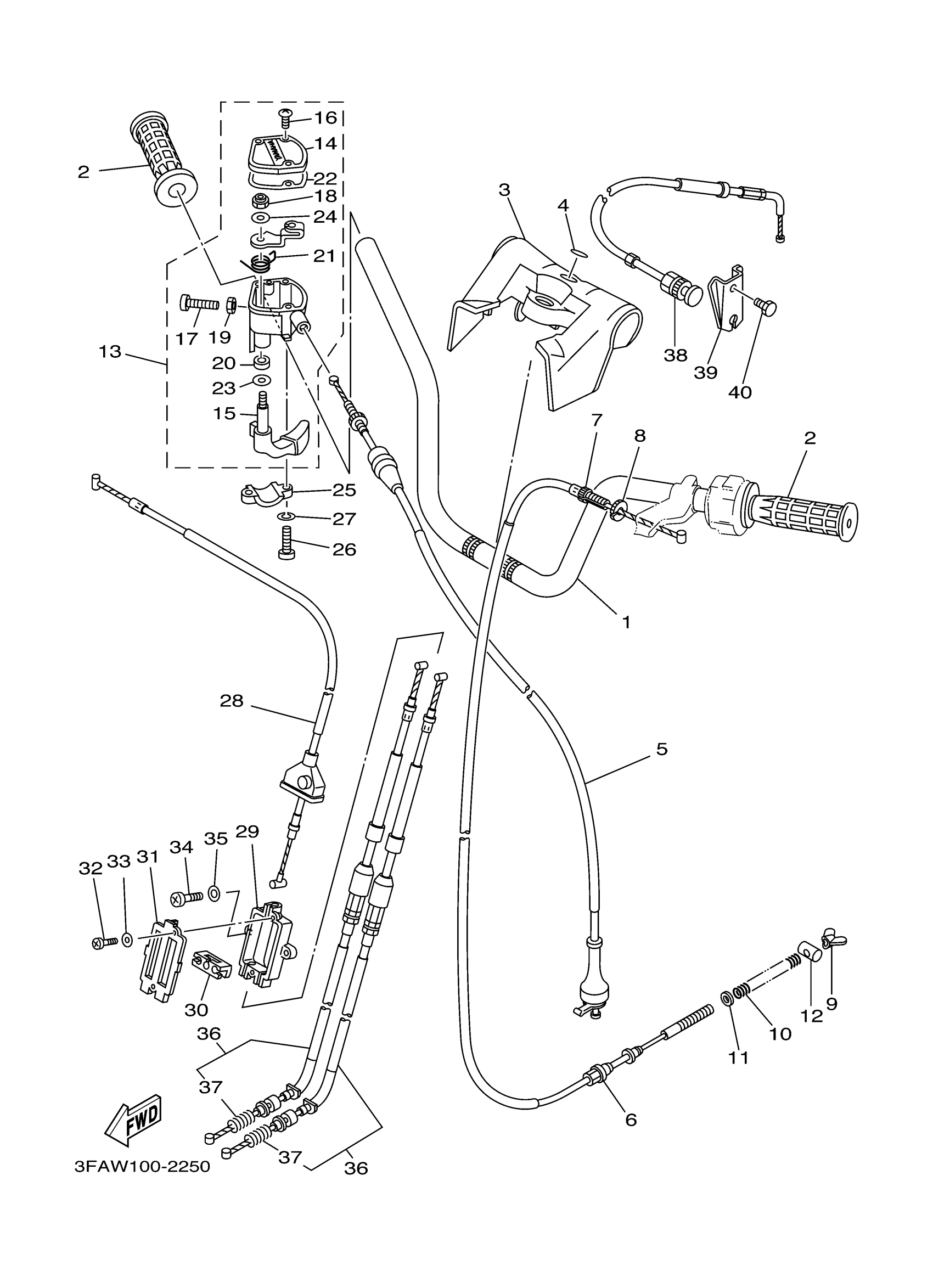

Yamaha YFA1SC (BREEZE) 5VJ5 2004 STEERING HANDLE CABLE Diagram
#
1
HANDLEBAR
5VJ-26111-00-00
Unavailable
3
PROTECTOR,HANDLEBAR
3FA-26124-01-00
Unavailable
5
WIRE, THROTTLE 1
3FA-26311-11-00
Unavailable
11
WASHER, PLATE(2EX)
90202-08175-00
Unavailable
15
LEVER, THROTTLE
1NV-2625G-02-00
Unavailable
16
SCREW(3HE)
90149-04278-00
Unavailable
17
SCREW, PAN HEAD
98517-05020-00
Unavailable
18
NUT, U
95617-05100-00
Unavailable
19
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
20
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
21
SPRING
1NV-26304-00-00
Unavailable
22
GASKET
4KB-2628G-00-00
Unavailable
23
WASHER
1NV-26129-00-00
Unavailable
24
. WASHER, SPECIAL
53L-83909-00-00
Unavailable
25
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
26
SCREW, PAN HEAD
98517-05020-00
Unavailable
27
WASHER(3SX)
92907-05100-00
Unavailable
28
CABLE, BRAKE 4
3FA-26373-00-00
Unavailable
29
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
30
JOINT, CABLE
52H-26347-01-00
Unavailable
31
PLATE
52H-2631G-00-00
Unavailable
32
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
33
WASHER(3SX)
92907-03600-00
Unavailable
34
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
35
WASHER(1RW)
92907-05600-00
Unavailable
36
CABLE, BRAKE
3FA-26361-01-00
Unavailable
37
SPRING (2N3)
90501-08511-00
Unavailable
38
CABLE, STARTER 1
3FA-26331-02-00
Unavailable
39
HOLDER
1C5-26393-00-00
Unavailable
40
BOLT, FLANGE
95817-06010-00
Unavailable
