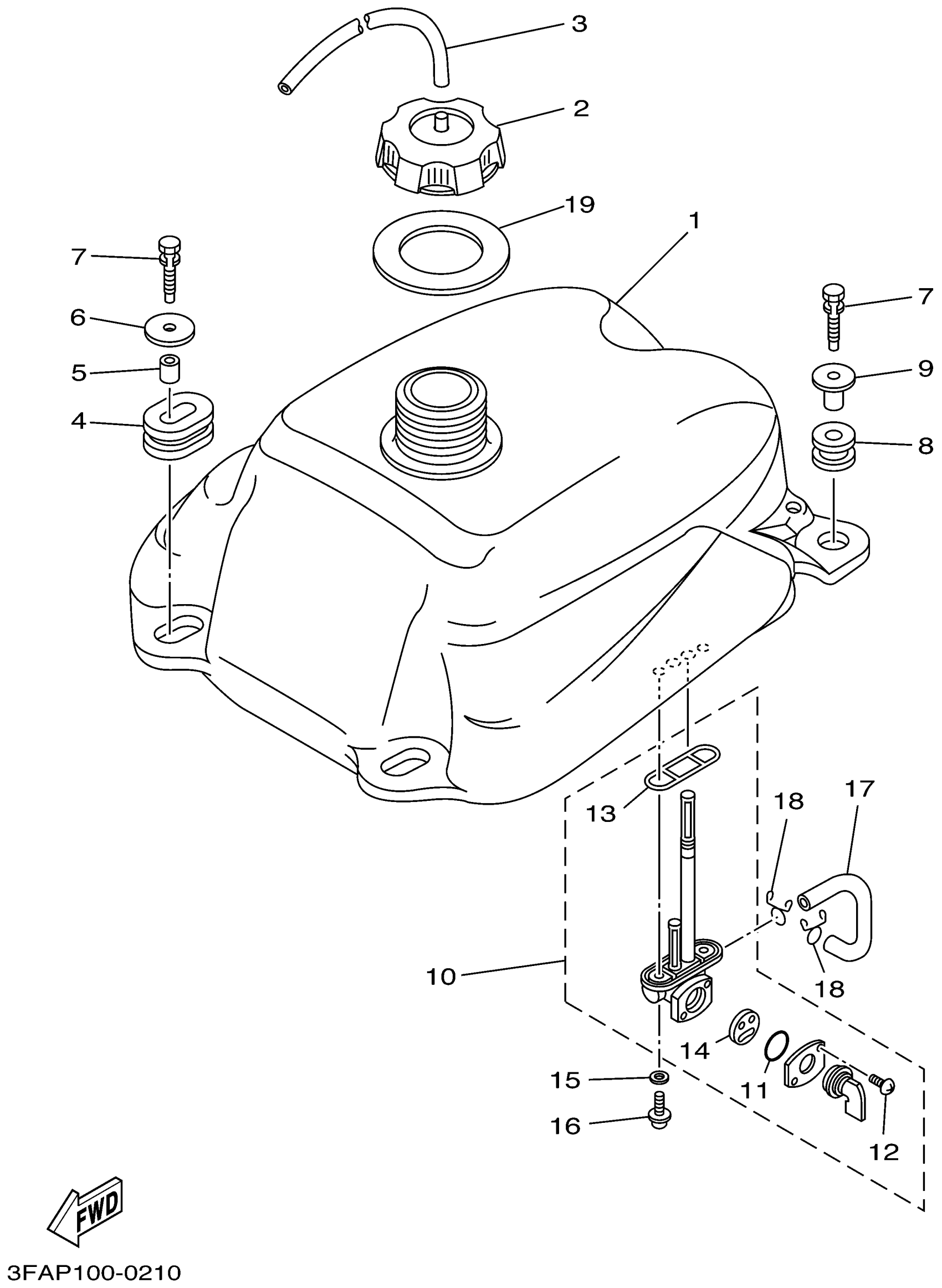

Yamaha YFA1PC (BREEZE) 3FAX 2002 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3FA-24110-00-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

HOSE (L420)

90445-092K1-00

$12.49

4

GROMMET(38W)

90480-01400-00

$13.49

5

COLLAR (1T2)

90387-07598-00

$5.60

6

WASHER, PLATE

90201-06090-00

$5.60

7

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

8

GROMMET (4V1)

90480-18290-00

$8.49

9

COLLAR (29U)

90387-066H4-00

$8.49

10

FUEL COCK ASSY 1

55W-24500-10-00

$43.99

11

SEAL, COCK

3AJ-24534-01-00

$10.99

12

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

13

O-RING

4X8-24512-00-00

$8.99

14

VALVE PACKING

3AC-24523-00-00

$12.99

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

SCREW 256241430000

90149-06011-00

Unavailable

17

HOSE (L200)

90445-10752-00

Unavailable

18

CLIP

90467-090A2-00

Unavailable

19

COVER, FILLER

3FA-2414A-00-00

Unavailable
