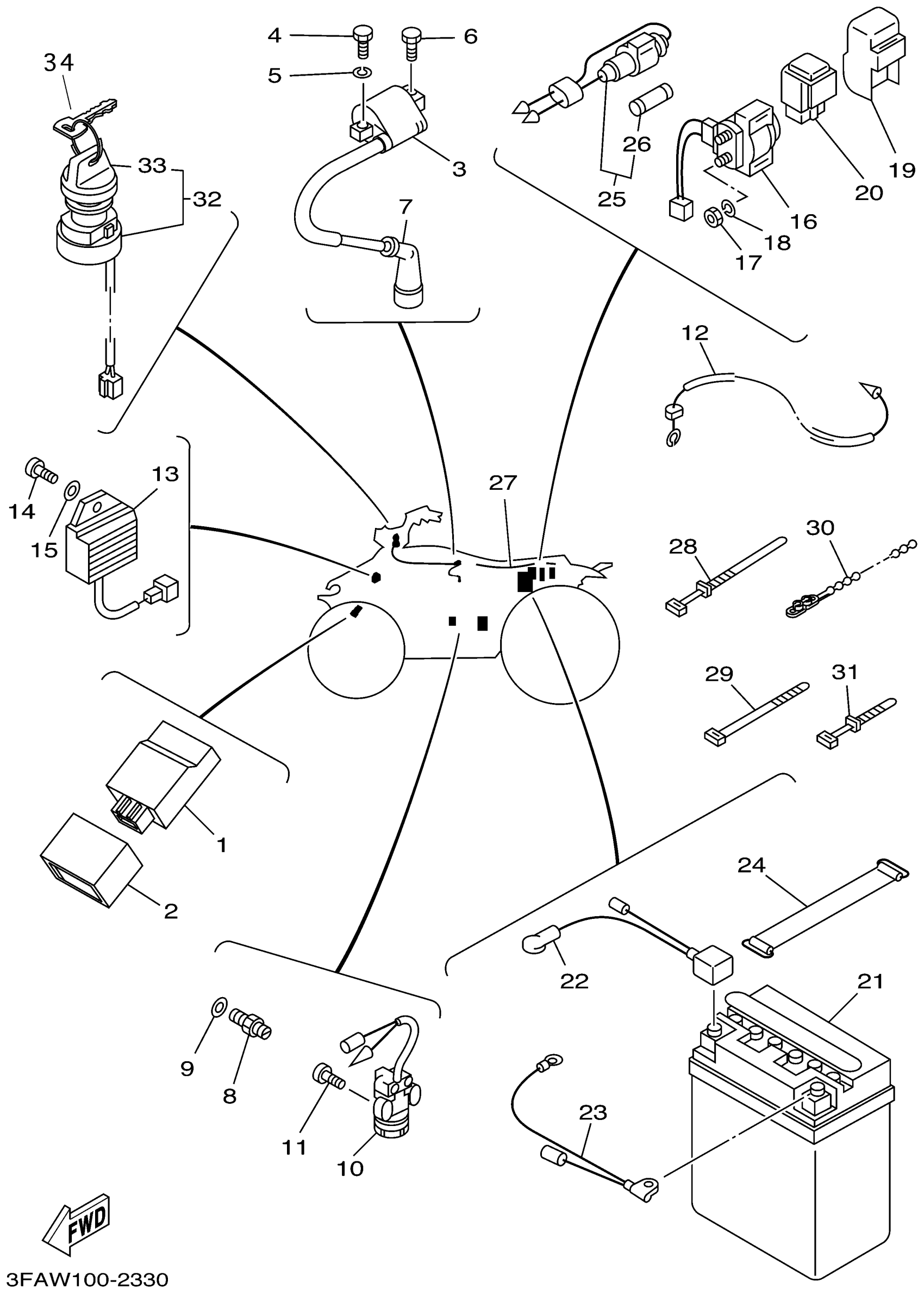

Yamaha YFA1PC (BREEZE) 3FAX 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

3FA-85540-20-00

Unavailable

2

BAND

1B2-H5546-00-00

$5.49

3

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

4

BOLT, HEXAGON

97017-06020-00

$4.06

5

WASHER, SPRING

92907-06100-00

$4.25

6

BOLT (21V)

90109-06723-00

$8.49

7

PLUG CAP ASSY

3NS-82370-00-00

$37.99

8

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

9

GASKET (1KH,1.0T)

90430-10148-00

$5.60

10

SWITCH

3FA-82627-00-00

Unavailable

11

SCREW(3FA)

90149-05283-00

Unavailable

12

WIRE, LEAD

3FA-82541-00-00

Unavailable

13

RECTIFIER & REGULATOR ASSY

5TH-81960-01-00

Unavailable

14

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

15

WASHER(6TA)

92907-06600-00

$2.72

16

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

17

NUT(JN5)

95317-06700-00

Unavailable

18

WASHER, SPRING

92907-06100-00

$4.25

19

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

20

RELAY ASSY (2NL-92)

2NL-81950-92-00

Unavailable

21

ACB12CA GS BATTERY WET PACK

ACB-12CA0-00-00

Unavailable

22

WIRE, PLUS LEAD

1YW-82115-00-00

Unavailable

23

WIRE, MINUS LEAD

1VJ-82116-00-00

Unavailable

24

BAND, BATTERY

133-82131-00-00

Unavailable

25

FUSE HOLDER ASSY

3GB-82150-00-00

Unavailable

26

FUSE (12V 5A)

5G2-82151-00-00

Unavailable

27

WIRE HARNESS ASSY

3FA-82590-30-00

Unavailable

28

BAND, SWITCH CORD

437-83936-11-00

Unavailable

29

CLAMP

90465-10098-00

Unavailable

30

CLAMP

90464-20031-00

Unavailable

31

BAND, SWITCH CORD

437-83936-01-00

Unavailable

32

MAIN SWITCH ASSY

5LP-82510-01-00

Unavailable

33

CAP, KEY

3HN-82579-00-00

Unavailable

34

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

34

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
