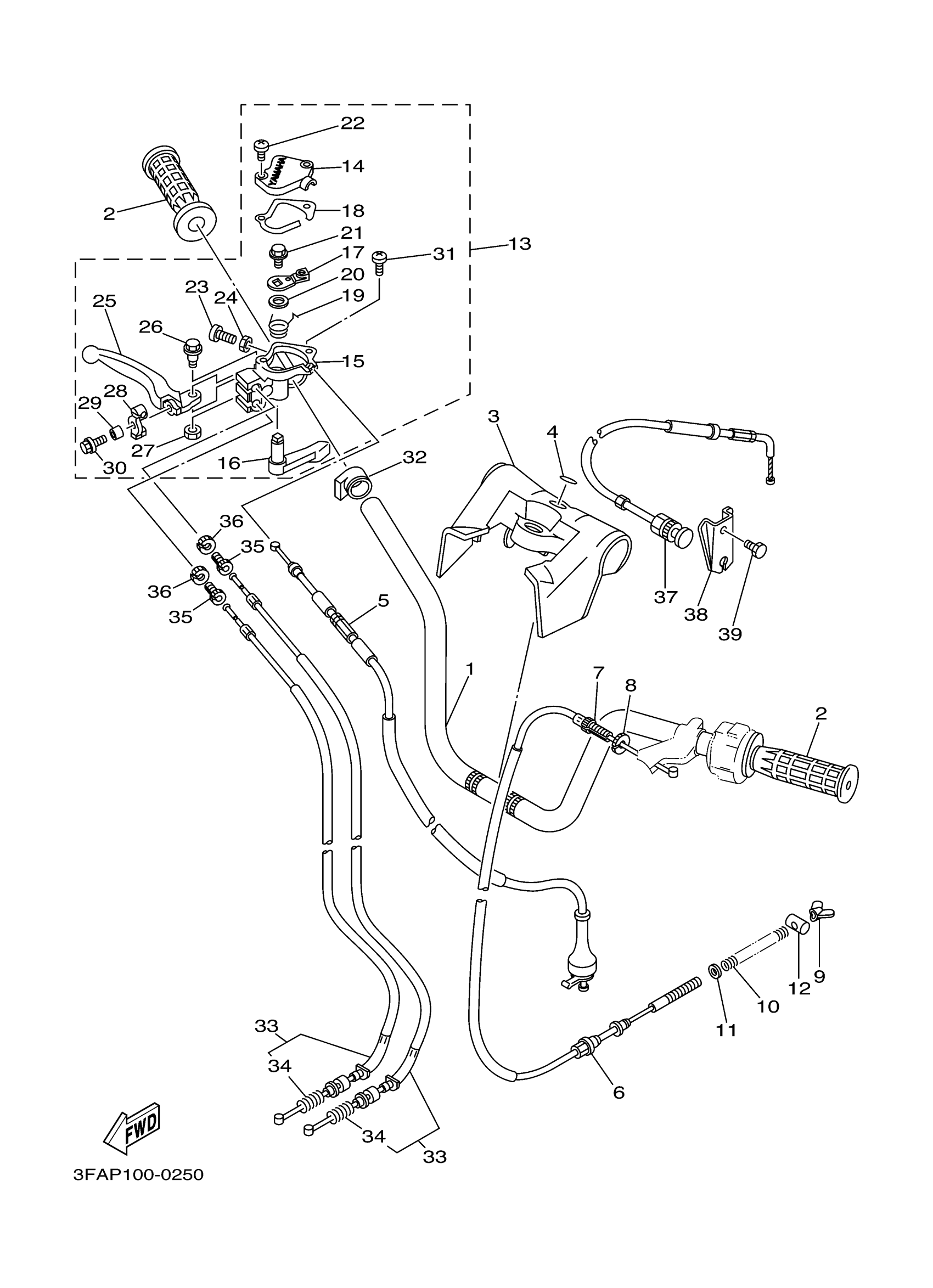

Yamaha YFA1NC (BREEZE) 3FAU 2001 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

3FA-26111-20-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR,HANDLEBAR

3FA-26124-01-00

Unavailable

4

TUNING FORK MARK

5GT-2836B-10-00

$16.49

5

CABLE, THROTTLE 1

3FA-26311-01-00

Unavailable

6

CABLE, BRAKE

3FA-26351-03-00

$41.99

7

BOLT

90123-08002-00

$10.49

8

NUT

90179-08030-00

$5.49

9

NUT, WING (1K5)

90175-06013-00

$4.88

10

SPRING, COMPRESSION(1YU)

90501-122E1-00

$2.22

11

WASHER, PLATE(2EX)

90202-08175-00

Unavailable

12

PIN 1562723700

90249-12008-00

$8.49

13

THROTTLE LEVER ASSY

3GB-26250-01-00

Unavailable

14

CAP, GEAR

3GB-2628F-00-00

Unavailable

15

BODY, THROTTLE

3GB-2625E-01-00

Unavailable

16

LEVER, THROTTLE

3GB-2625G-00-00

Unavailable

17

ARM, THROTTLE

3GB-2625H-00-00

Unavailable

18

GASKET

3GB-2628G-02-00

Unavailable

19

SPRING, TORSION(3GB)

90508-10775-00

Unavailable

20

WASHER, PLATE(3GB)

90201-145M4-00

Unavailable

21

BOLT, FLANGE

95817-08012-00

Unavailable

22

SCREW, PAN HEAD

98517-04016-00

Unavailable

23

SCREW, PAN HEAD

98517-05020-00

Unavailable

24

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

25

LEVER 2

3GB-83922-00-00

Unavailable

26

BOLT(3GB)

90109-061F3-00

Unavailable

27

NUT, SELF-LOCKING

95617-06100-00

Unavailable

28

JOINT, CABLE

3GB-26347-00-00

Unavailable

29

COLLAR (3L6)

90387-06761-00

Unavailable

30

BOLT, FLANGE

95817-06016-00

Unavailable

31

SCREW, PAN

98517-06020-00

Unavailable

32

BOOT, HANDLEBAR

3FA-26147-00-00

Unavailable

33

CABLE, BRAKE

3GB-26361-04-00

Unavailable

34

SPRING (2N3)

90501-08511-00

Unavailable

35

BOLT(2FJ)

90123-08106-00

Unavailable

36

NUT

90179-08030-00

$5.49

37

CABLE, STARTER 1

3FA-26331-02-00

Unavailable

38

HOLDER

1C5-26393-00-00

Unavailable

39

BOLT, FLANGE

95817-06010-00

Unavailable
