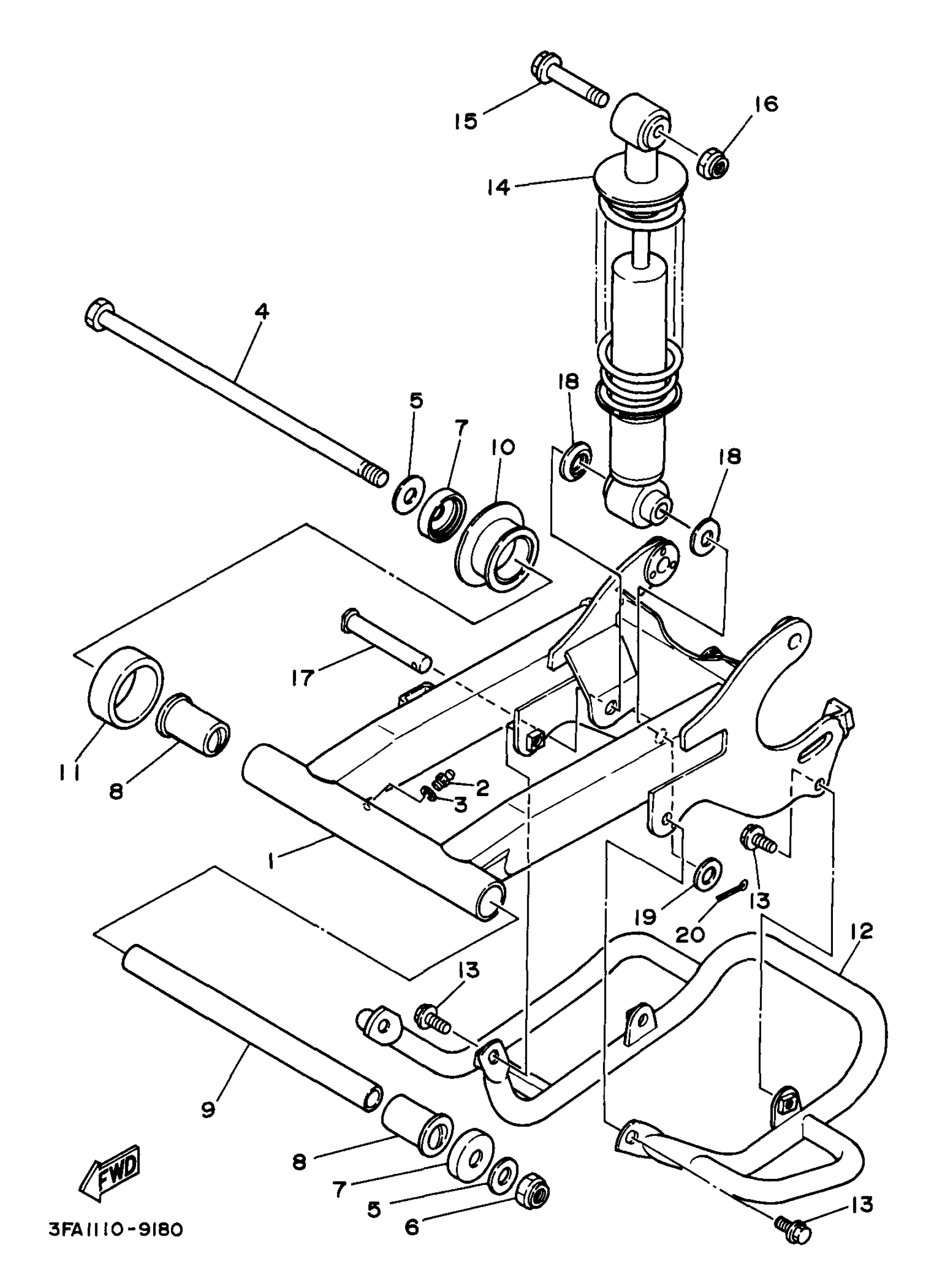

Yamaha YFA1K (BREEZE) 3FAK 1998 REAR ARM SUSPENSION Diagram

REAR ARM COMP.

3FA-22110-00-33

$353.99

NIPPLE, GREASE

93700-06M03-00

Unavailable

WASHER(6TA)

92907-06200-00

$8.49

SHAFT, PIVOT

2JX-22141-00-00

Unavailable

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

COVER, THRUST 1

401-22128-01-00

$29.99

BUSHING (401-22123-00)

90386-18028-00

$26.99

COLLAR, DISTANCE

3FA-22126-00-00

$60.99

SEAL, GUARD

2A6-22151-00-00

$9.99

SEAL, GUARD 2

2A6-22152-00-00

$5.49

COVER

3FA-2219X-00-00

Unavailable

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

SHOCK ABSORBER ASSY, REAR

3FA-22210-00-33

$354.99

BOLT, WASHER BASED(59V)

90105-10388-00

$10.49

NUT, SELF LOCKING (3G1)

90185-10091-00

Unavailable

PIN, CLEVIS (10V)

90240-12092-00

Unavailable

COVER, THRUST

1W1-22128-00-00

Unavailable

WASHER, PLATE

90201-12047-00

Unavailable

PIN, COTTER

91401-30025-00

Unavailable
