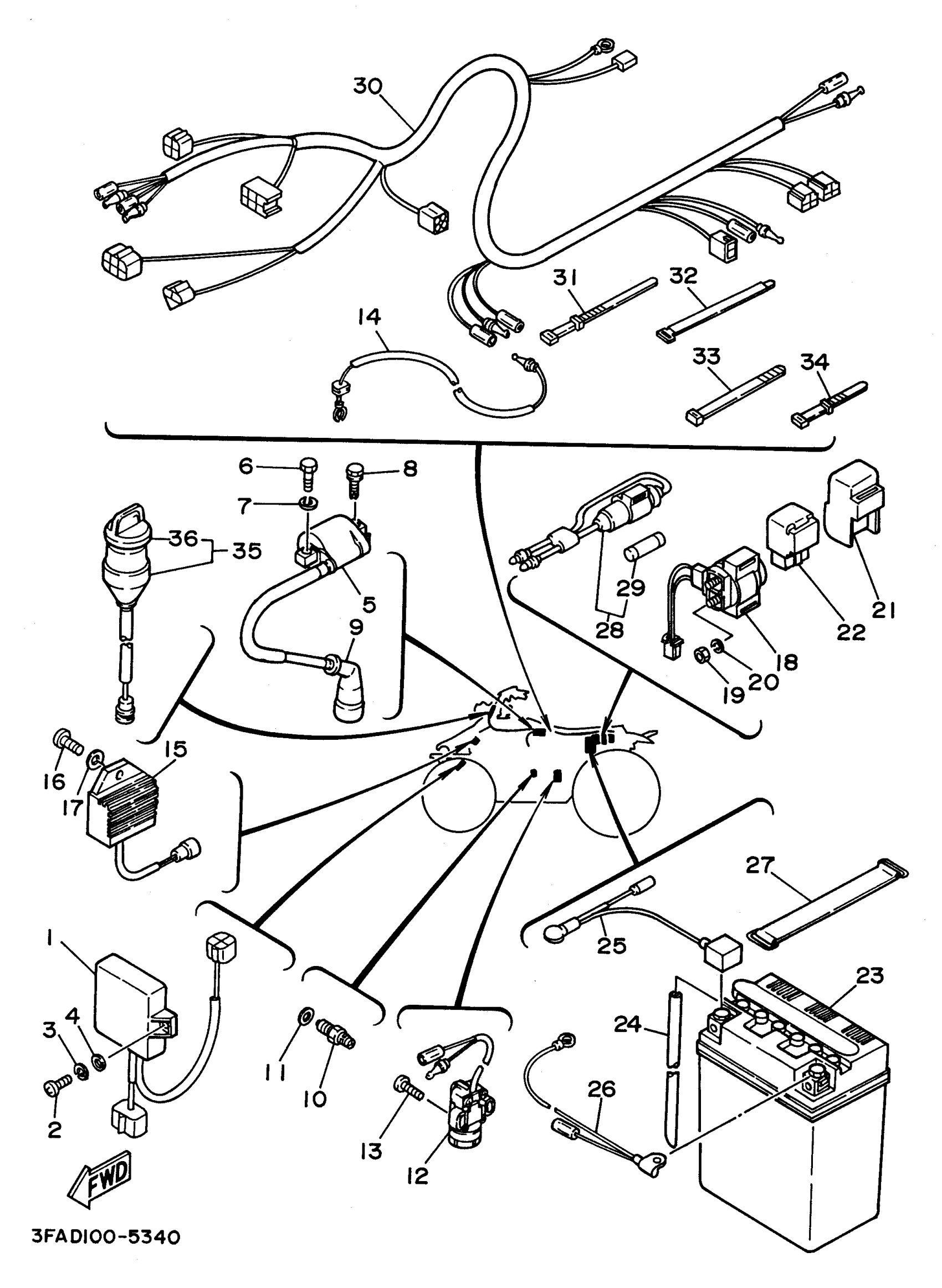

Yamaha YFA1H (BREEZE) 1996 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

3FA-85540-10-00

Unavailable

2

SCREW, PAN

98517-06020-00

$8.49

3

WASHER, SPRING

92907-06100-00

$4.25

4

WASHER(6TA)

92907-06600-00

$2.72

5

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

6

BOLT, HEXAGON

97017-06020-00

$4.06

7

WASHER, SPRING

92907-06100-00

$4.25

8

BOLT (21V)

90109-06723-00

$8.49

9

PLUG CAP ASSY

3NS-82370-00-00

$37.99

10

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

11

GASKET (5R6)

90430-10171-00

$3.18

12

SWITCH

3FA-82627-00-00

Unavailable

13

SCREW(3FA)

90149-05283-00

Unavailable

14

WIRE, LEAD

3FA-82541-00-00

Unavailable

15

RECTIFIER & REGULATOR ASSEMBLY

3GB-81960-00-00

Unavailable

16

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

17

WASHER(6TA)

92907-06600-00

$2.72

18

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

19

NUT(JN5)

95317-06700-00

Unavailable

20

WASHER, SPRING

92907-06100-00

$4.25

21

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

22

RELAY ASSY (2NL-92)

2NL-81950-92-00

Unavailable

23

ACB12CA GS BATTERY WET PACK

ACB-12CA0-00-00

Unavailable

24

HOSE (L500)

90445-08338-00

Unavailable

25

WIRE, PLUS LEAD

1YW-82115-00-00

Unavailable

26

WIRE, MINUS LEAD

1VJ-82116-00-00

Unavailable

27

BAND, BATTERY

133-82131-00-00

Unavailable

28

FUSE HOLDER ASSY

3GB-82150-00-00

Unavailable

29

FUSE (12V 5A)

5G2-82151-00-00

Unavailable

30

WIRE HARNESS ASSEMBLY

3FA-82590-10-00

Unavailable

31

BAND, SWITCH CORD

437-83936-11-00

Unavailable

32

BAND

341-26397-01-00

Unavailable

33

CLAMP

1UY-82591-00-00

Unavailable

34

BAND, SWITCH CORD

437-83936-01-00

Unavailable

35

MAIN SWITCH ASSY

4GB-82510-12-00

Unavailable

36

CAP, KEY

3HN-82579-00-00

Unavailable
