Description

Price

1

CYLINDER HEAD ASSY

3FA-11102-04-00

Unavailable

2

BOLT, STUD 3

95617-06625-00

$8.49

3

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$88.99

4

CIRCLIP (22F)

93440-10109-00

$8.49

5

BREATHER ASSY

3FA-11160-00-00

Unavailable

6

PIPE, BREATHER 1

3FA-11166-00-00

Unavailable

7

CLIP(3YX)

90467-13133-00

$8.49

8

O-RING (22F)

93210-63556-00

$5.60

9

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

10

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$20.99

11

O-RING(55X)

93210-44704-00

$7.49

12

WASHER, PLATE

90201-080L7-00

$4.82

13

BOLT, FLANGE

90105-08181-00

$8.49

14

C7HSA NGK 4PK

C7H-SA000-00-00

Unavailable

15

GASKET, CYLINDER HEAD 1

50M-11181-00-00

$38.99

16

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

17

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

18

BOLT, SOCKET

91317-06110-00

Unavailable

19

CYLINDER

3FA-11310-00-00

Unavailable

20

GASKET, CYLINDER

3FA-11351-10-00

Unavailable

21

O-RING

93210-53679-00

Unavailable

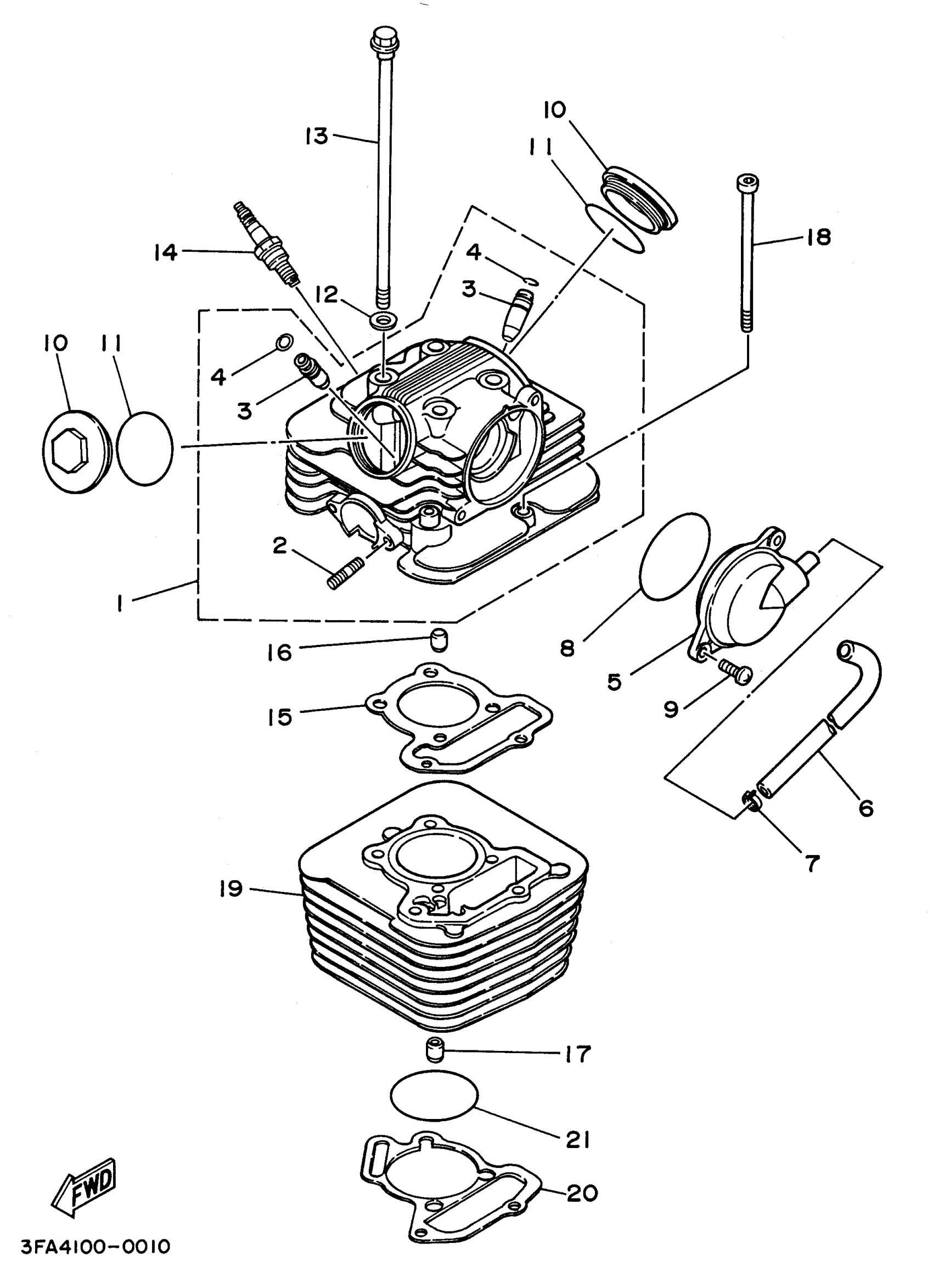

Yamaha YFA1H (BREEZE) 1996 CYLINDER Diagram

CYLINDER HEAD ASSY

BOLT, STUD 3

GUIDE, EXHAUST VALVE (1ST O/S)

CIRCLIP (22F)

BREATHER ASSY

PIPE, BREATHER 1

CLIP(3YX)

O-RING (22F)

SCREW, PAN HEAD(3TJ)

COVER, CYLINDER HEAD SIDE 2

O-RING(55X)

WASHER, PLATE

BOLT, FLANGE

C7HSA NGK 4PK

GASKET, CYLINDER HEAD 1

PIN, DOWEL(3VD)

PIN, DOWEL(3VD)

BOLT, SOCKET

CYLINDER

GASKET, CYLINDER

O-RING
