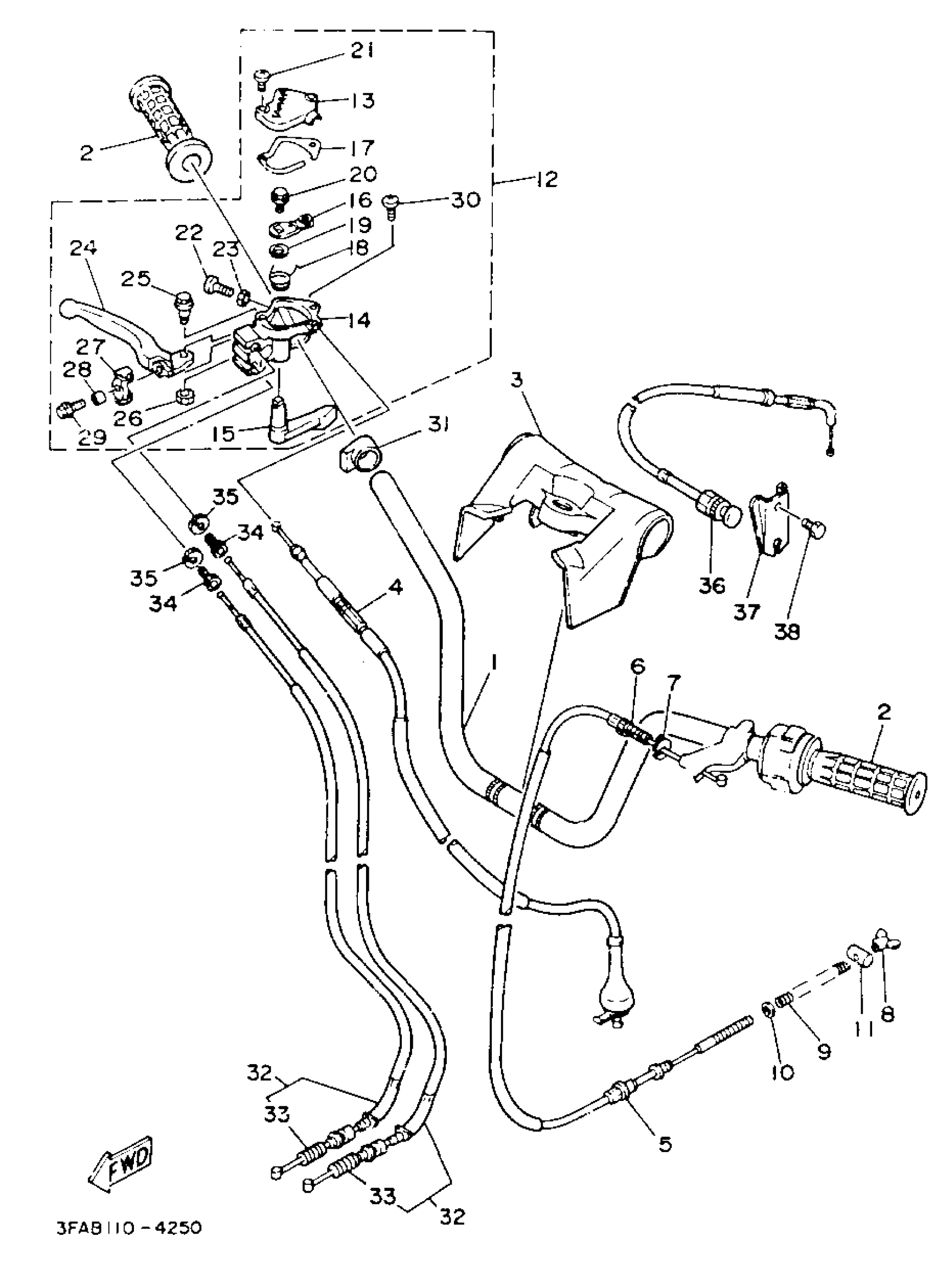

Yamaha YFA1F (BREEZE) 1994 HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLEBAR

3FA-26111-20-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR,HANDLEBAR

3FA-26124-01-00

Unavailable

4

CABLE, THROTTLE 1

3FA-26311-01-00

Unavailable

5

CABLE, BRAKE

3FA-26351-03-00

$41.99

6

BOLT

90123-08002-00

$10.49

7

NUT

90179-08030-00

$5.49

8

NUT (25K)

90179-06411-00

$8.49

9

SPRING, COMPRESSION(1YU)

90501-122E1-00

$2.22

10

WASHER, PLATE(2EX)

90202-08175-00

Unavailable

11

PIN 1562723700

90249-12008-00

$8.49

12

THROTTLE LEVER ASSY

3GB-26250-01-00

Unavailable

13

CAP, GEAR

3GB-2628F-00-00

Unavailable

14

BODY, THROTTLE

3GB-2625E-01-00

Unavailable

15

LEVER, THROTTLE

3GB-2625G-00-00

Unavailable

16

ARM, THROTTLE

3GB-2625H-00-00

Unavailable

17

GASKET

3GB-2628G-02-00

Unavailable

18

SPRING, TORSION(3GB)

90508-10775-00

Unavailable

19

WASHER, PLATE(3GB)

90201-145M4-00

Unavailable

20

BOLT, FLANGE

95817-08012-00

Unavailable

21

SCREW, PAN HEAD

98507-04018-00

Unavailable

22

SCREW, PAN HEAD

98517-05020-00

Unavailable

23

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

24

LEVER 2

3GB-83922-00-00

Unavailable

25

BOLT(3GB)

90109-061F3-00

Unavailable

26

NUT, SELF-LOCKING

95617-06100-00

Unavailable

27

JOINT, CABLE

3GB-26347-00-00

Unavailable

28

COLLAR (3L6)

90387-06761-00

Unavailable

29

BOLT, FLANGE

95817-06016-00

Unavailable

30

SCREW, PAN

98517-06020-00

Unavailable

31

BOOT, HANDLEBAR

3FA-26147-00-00

Unavailable

32

CABLE, BRAKE

3GB-26361-04-00

Unavailable

33

SPRING (2N3)

90501-08511-00

Unavailable

34

BOLT(2FJ)

90123-08106-00

Unavailable

35

NUT

90179-08030-00

$5.49

36

CABLE, STARTER 1

3FA-26331-02-00

Unavailable

37

HOLDER

1C5-26393-00-00

Unavailable

38

BOLT, FLANGE

95812-06010-00

Unavailable
