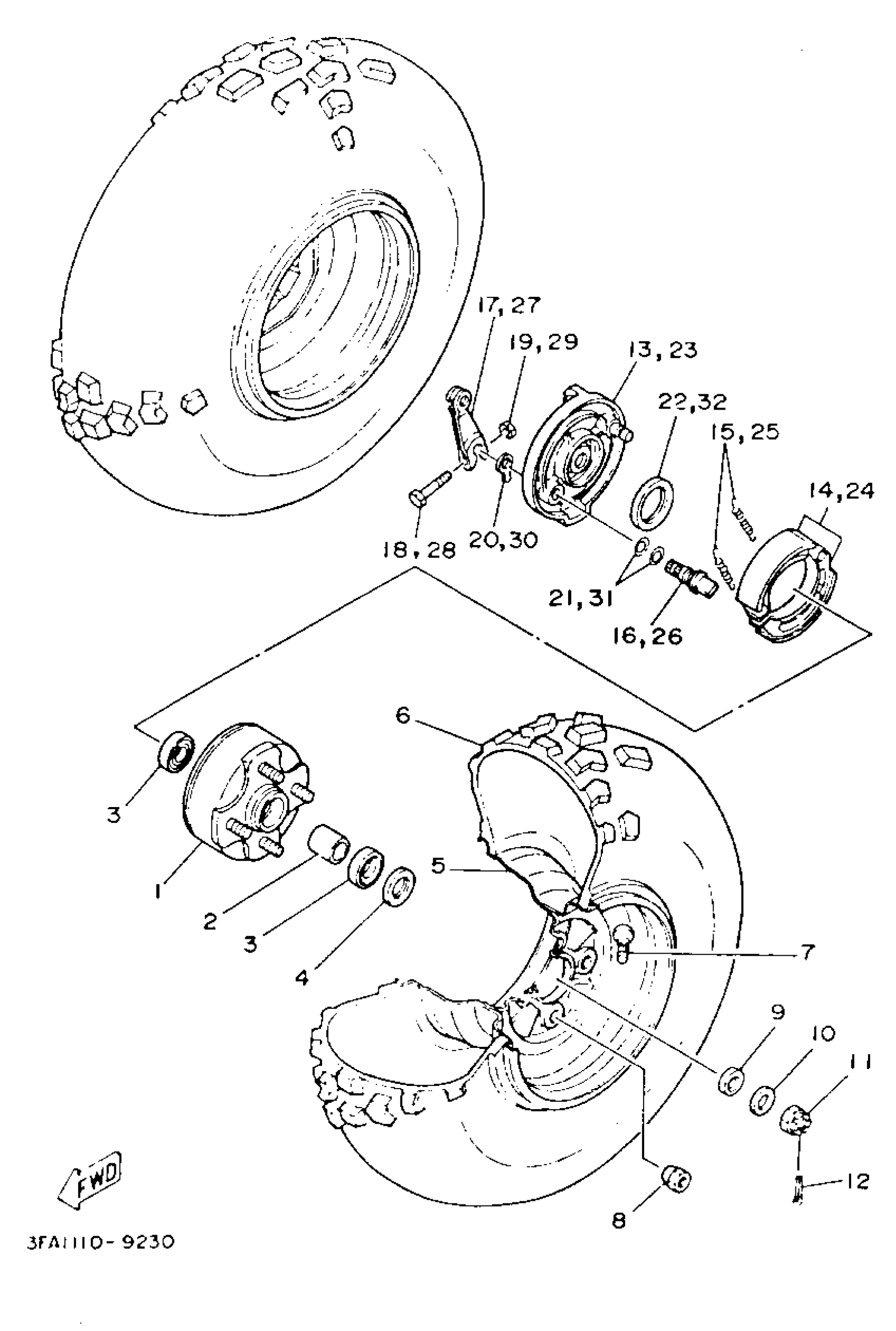

Yamaha YFA1F (BREEZE) 1994 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

1C5-25111-00-00

$205.99

2

SPACER, BEARING

2FJ-25117-00-00

Unavailable

3

BEARING(2JN)

93306-00315-00

$33.99

4

OIL SEAL (21V)

93102-23275-00

$14.99

5

FRONT WHEEL COMP.

3FA-25180-00-35

$215.99

6

TIRE (AT20X7-8 DI-K635A T/L)

94107-08009-00

Unavailable

7

VALVE, RIM(2GH)

93900-00030-00

$16.99

8

NUT(2HR)

90179-10540-00

$5.60

9

COLLAR

90387-175R2-00

Unavailable

10

WASHER PLATE 248181370000

90201-14220-00

$8.49

11

NUT, CASTLE(2UJ)

90171-14056-00

$13.49

12

PIN, COTTER

91490-30030-00

$8.49

13

PLATE, BRAKE SHOE

3FA-25121-00-00

Unavailable

14

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

15

SPRING, TENSION

90506-15260-00

$8.49

16

CAMSHAFT

5G3-25351-02-00

Unavailable

17

LEVER, CAMSHAFT 1

3FA-25155-00-00

Unavailable

18

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

21

O-RING(3LD)

93210-12790-00

Unavailable

22

OIL SEAL(3BC)

93106-40027-00

Unavailable

23

PLATE, BRAKE SHOE 2

3FA-25169-00-00

Unavailable

24

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

25

SPRING, TENSION

90506-15260-00

$8.49

26

CAMSHAFT

5G3-25351-02-00

Unavailable

27

LEVER, CAMSHAFT 2

3FA-25156-00-00

Unavailable

28

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

29

NUT, HEXAGON

95380-06600-00

Unavailable

30

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

31

O-RING(3LD)

93210-12790-00

Unavailable

32

OIL SEAL(3BC)

93106-40027-00

Unavailable
