Description

Price

1

AXLE, MAIN (17T)

3FA-17411-00-00

Unavailable

2

GEAR, PRIMARY DRIVEN (43T)

3FA-16151-00-00

$113.99

3

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

4

SPACER(3FA)

90560-15348-00

Unavailable

5

REDUCTION GEAR ASSY (49T)

3FA-17270-00-00

$168.99

6

WASHER, LOCK(3FA)

90215-22276-00

Unavailable

7

CIRCLIP (537)

93410-22039-00

$8.49

8

WASHER, PLATE(3FA)

90201-221M8-00

$10.49

9

CLUTCH, DOG

3FA-17285-00-00

$74.99

10

BRG, R-B (7H4)

93306-20211-00

$25.99

11

BEARING(1YW)

93306-20461-00

$39.99

12

AXLE, DRIVE (40T)

3FA-17421-00-00

Unavailable

13

WASHER, PLATE (3X0)

90201-252A4-00

Unavailable

14

BEARING, CYLINDRICAL (5F7)

93311-43048-00

$64.99

15

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

16

HOUSING, BEARING

3FA-17551-00-00

Unavailable

17

GASKET, HOUSING CAP

3FA-17519-10-00

Unavailable

18

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

19

NUT(52G)

90179-55464-00

Unavailable

20

PLATE, COVER

3FA-17471-01-00

Unavailable

21

COLLAR(3FA)

90387-251W4-00

Unavailable

22

OIL SEAL (5F7)

93102-30243-00

Unavailable

23

SPROCKET,DRIVE 12T(38V1746120)

93834-12016-00

Unavailable

24

WASHER, LOCK (23X)

90215-21239-00

Unavailable

25

NUT (2K7)

90179-20255-00

Unavailable

26

COUNTER AXLE ASSY (15T)

3FA-17430-00-00

Unavailable

27

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

Unavailable

28

BEARING

93306-30212-00

Unavailable

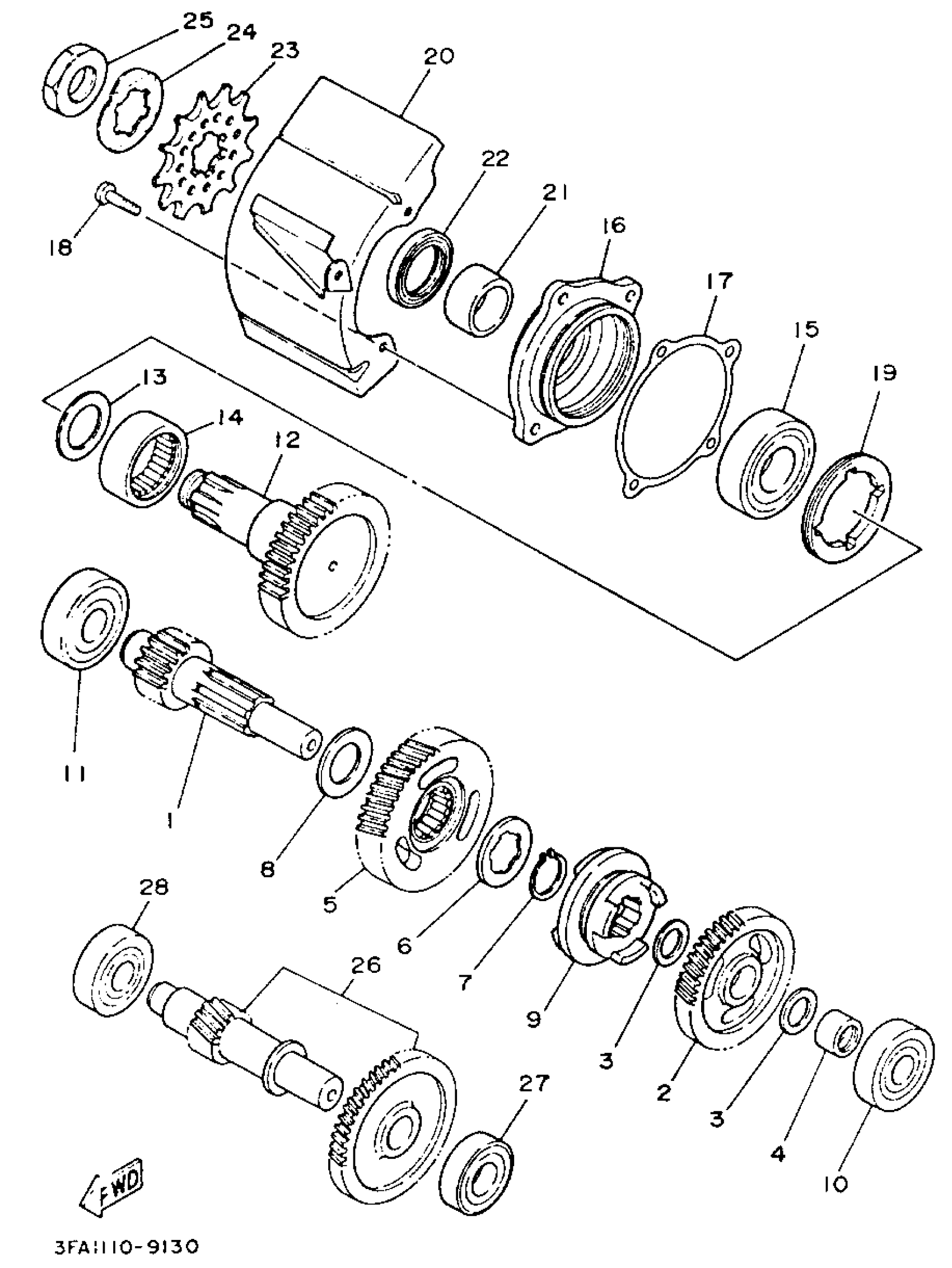

Yamaha YFA1E (BREEZE) 1993 TRANSMISSION Diagram

AXLE, MAIN (17T)

GEAR, PRIMARY DRIVEN (43T)

WASHER, PLATE (4L0)

SPACER(3FA)

REDUCTION GEAR ASSY (49T)

WASHER, LOCK(3FA)

CIRCLIP (537)

WASHER, PLATE(3FA)

CLUTCH, DOG

BRG, R-B (7H4)

BEARING(1YW)

AXLE, DRIVE (40T)

WASHER, PLATE (3X0)

BEARING, CYLINDRICAL (5F7)

BRG,R-B 6205C4 52MM 130G KY

HOUSING, BEARING

GASKET, HOUSING CAP

BOLT,SOCKET HEAD

NUT(52G)

PLATE, COVER

COLLAR(3FA)

OIL SEAL (5F7)

SPROCKET,DRIVE 12T(38V1746120)

WASHER, LOCK (23X)

NUT (2K7)

COUNTER AXLE ASSY (15T)

BRG,R-B 6203RS 40MM 63.3G KY

BEARING
