Description

Price

1

FENDER,REAR

3FA-W2161-12-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

FLAP

3FA-21621-00-00

Unavailable

4

FLAP

3FA-21691-00-00

Unavailable

5

SCREW, BINDING (8J0)

90154-05005-00

$4.73

6

WASHER, PLATE 8067717800

90201-05029-00

$8.49

7

NUT, NYLON

95707-05300-00

$4.24

8

DAMPER 2

1UY-21639-00-00

$7.99

9

DAMPER 1

1UY-21638-00-00

$7.99

10

STAY, FENDER 1

3FA-21613-01-00

Unavailable

11

STAY, FENDER 2

3FA-21614-01-00

Unavailable

12

BOLT,SOCKET

91317-06012-00

$8.49

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

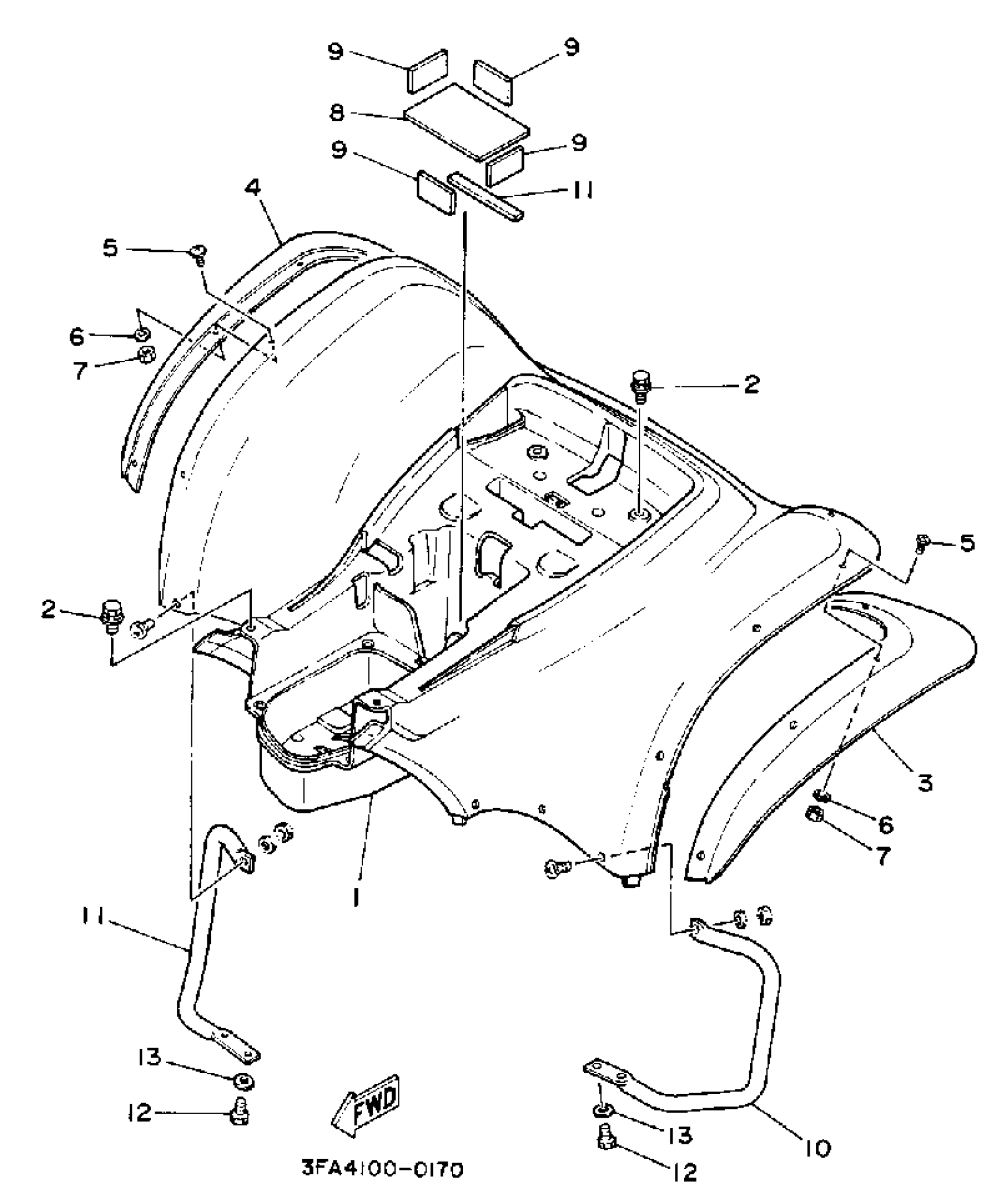

Yamaha YFA1D 1992 REAR FENDER Diagram

FENDER,REAR

BOLT, WITH WASHER

FLAP

FLAP

SCREW, BINDING (8J0)

WASHER, PLATE 8067717800

NUT, NYLON

DAMPER 2

DAMPER 1

STAY, FENDER 1

STAY, FENDER 2

BOLT,SOCKET

YBS66-6 WASHER, PLAIN
