Description

Price

1

KNUCKLE, STEERING 1

3FA-23511-01-00

Unavailable

2

BUSH, SOLID(2NL)

90381-17067-00

$11.49

3

NIPPLE, GREASE

93700-06M03-00

Unavailable

4

KNUCKLE, STEERING 2

3FA-23521-01-00

Unavailable

5

BUSH, SOLID(2NL)

90381-17067-00

$11.49

6

NIPPLE, GREASE

93700-06M03-00

Unavailable

7

SPACER

3GB-23448-00-00

Unavailable

8

COVER, THRUST 1

3JN-23517-00-00

$16.49

9

BOLT(55X)

90109-104A8-00

$7.49

10

WASHER PLATE (3L6)

90201-08759-00

$3.23

11

NUT 3532518200

90171-10004-00

$7.49

12

PIN, COTTER

91490-20025-00

$1.99

13

FRONT LOWER ARM COMP.(LEFT)

3FA-23570-00-33

$250.99

14

FRONT LOWER ARM COMP.(RIGHT)

3FA-23580-00-33

Unavailable

15

BUSH, SOLID(3GG)

90381-15088-00

$21.99

16

COLLAR(1UY)

90387-101R3-00

Unavailable

17

COVER, THRUST 1

1UY-23517-01-00

Unavailable

18

NIPPLE, GREASE

93700-06M03-00

Unavailable

19

WASHER(6TA)

92907-06200-00

Unavailable

20

BOLT, WASHER BASED(3FA)

90105-10727-00

Unavailable

21

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

22

SHOCK ABSORBER ASSY

3FA-23350-00-33

Unavailable

23

BOLT, WASHER BASED(3YR)

90105-10669-00

Unavailable

24

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

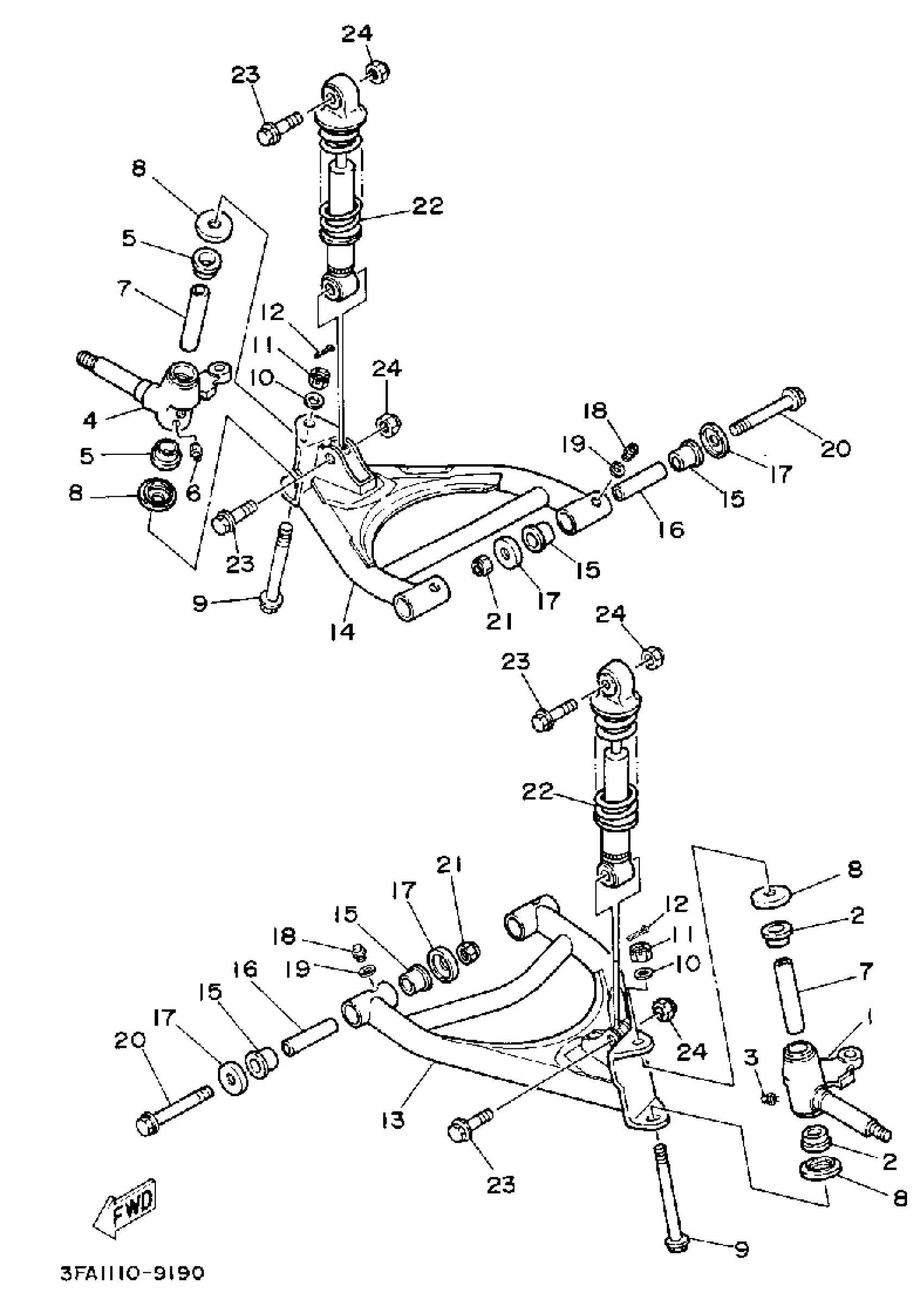

Yamaha YFA1D 1992 FRONT SUSPENSION-WHEEL Diagram

KNUCKLE, STEERING 1

BUSH, SOLID(2NL)

NIPPLE, GREASE

KNUCKLE, STEERING 2

BUSH, SOLID(2NL)

NIPPLE, GREASE

SPACER

COVER, THRUST 1

BOLT(55X)

WASHER PLATE (3L6)

NUT 3532518200

PIN, COTTER

FRONT LOWER ARM COMP.(LEFT)

FRONT LOWER ARM COMP.(RIGHT)

BUSH, SOLID(3GG)

COLLAR(1UY)

COVER, THRUST 1

NIPPLE, GREASE

WASHER(6TA)

BOLT, WASHER BASED(3FA)

NUT, SELFLOCKING (533 FRAME)

SHOCK ABSORBER ASSY

BOLT, WASHER BASED(3YR)

NUT, SELFLOCKING (533 FRAME)
