Description

Price

1

FUEL TANK COMP.

3FA-24110-00-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

HOSE (L420)

90445-092K1-00

$12.49

4

GROMMET(38W)

90480-01400-00

$13.49

5

COLLAR (1T2)

90387-07598-00

$5.60

6

WASHER, PLATE

90201-06090-00

$5.60

7

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

8

GROMMET (4V1)

90480-18290-00

$8.49

9

COLLAR (29U)

90387-066H4-00

$8.49

10

FUEL COCK ASSY 1

36R-24500-01-00

$76.99

11

O-RING

4X8-24534-00-00

$13.49

12

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

13

O-RING

4X8-24512-00-00

$8.99

14

WASHER, PLATE(3MB)

90202-05187-00

$1.38

15

SCREW 256241430000

90149-06011-00

$5.60

16

HOSE (L200)

90445-10752-00

Unavailable

17

CLIP

90467-090A2-00

Unavailable

18

COVER, FILLER

3FA-2414A-00-00

Unavailable

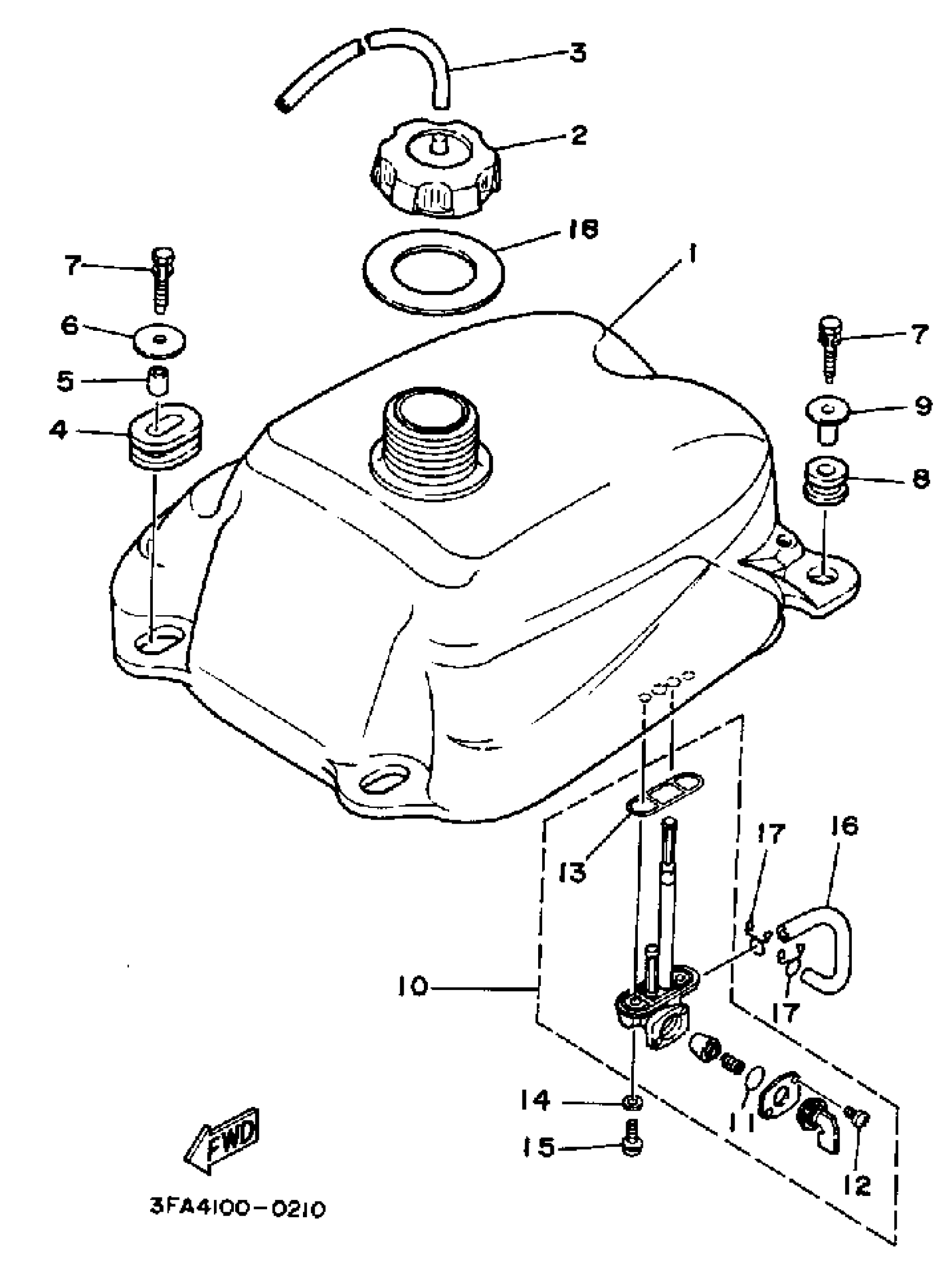

Yamaha YFA1B (BREEZE) 1991 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

HOSE (L420)

GROMMET(38W)

COLLAR (1T2)

WASHER, PLATE

BOLT, WITH WASHER (24X)

GROMMET (4V1)

COLLAR (29U)

FUEL COCK ASSY 1

O-RING

SCREW, PAN HEAD (J10)

O-RING

WASHER, PLATE(3MB)

SCREW 256241430000

HOSE (L200)

CLIP

COVER, FILLER
