1986 Yamaha 4-Zinger (YF60S) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1986 Yamaha 4-Zinger (YF60S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

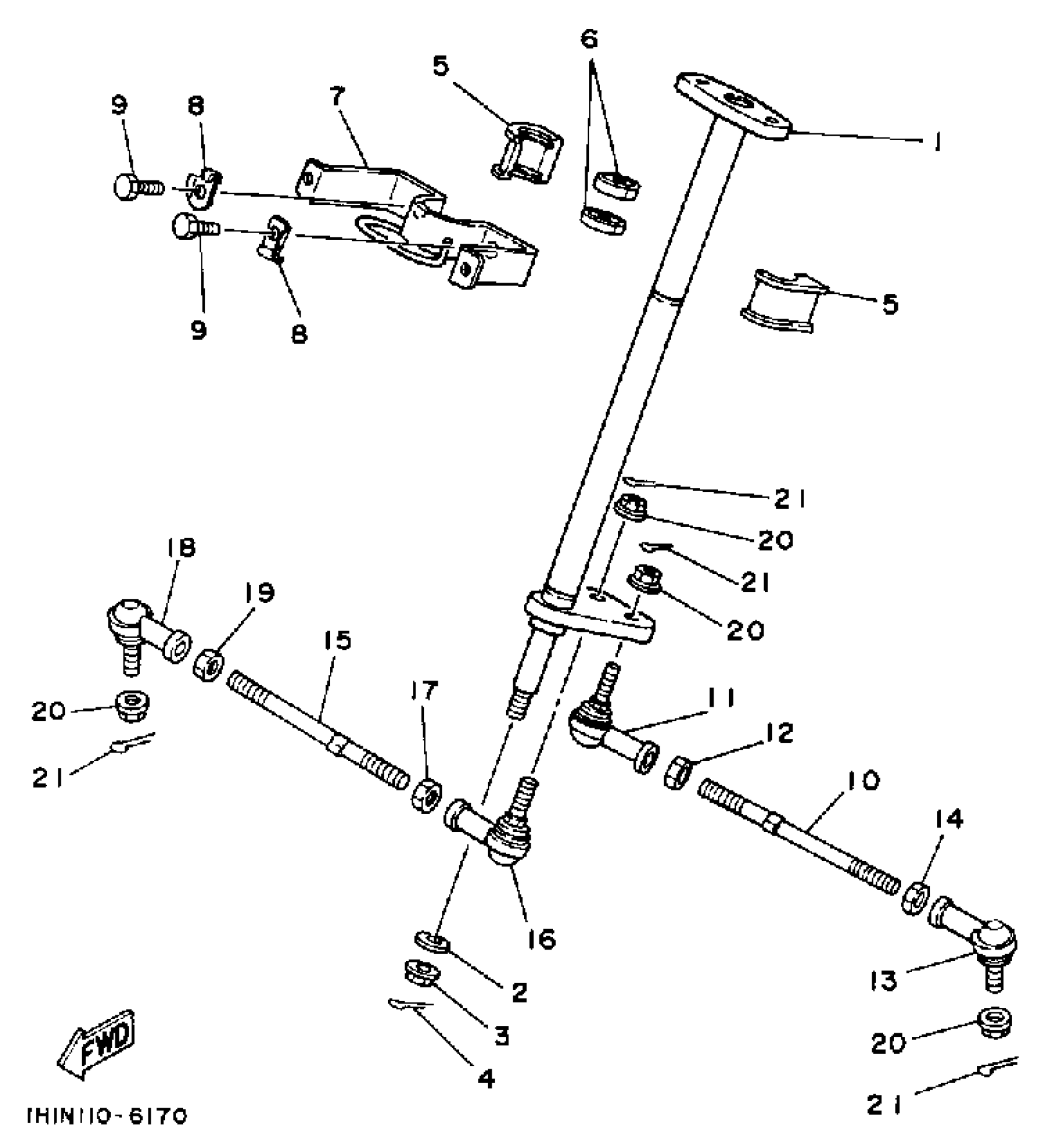

1986 Yamaha 4-Zinger (YF60S) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING 2

1HN-23813-00-00

1
Out of stock

2

WASHER, PLATE (3L6)

90201-10774-00

1

$6.25

In stock

3

NUT, SELF-LOCKING (8U7)

90185-10115-00

—

$6.82

In stock

4

PIN, COTTER

91490-20025-00

1

$1.31

In stock

5

PLANE BEARING, STEERING

52H-23812-00-00

1
Out of stock

6

OIL SEAL

93112-28007-00

1
Out of stock

7

BRACKET, STRG LOWER

1HN-23868-00-00

1
Out of stock

8

WASHER, LOCK 1

8AC-23894-01-00

1

$3.62

In stock

9

BOLT, HEXAGON

97017-08016-00

1
Out of stock

10

ROD, TIE

1HN-23831-00-00

—

$24.68

In stock

11

JOINT, UNIVERSAL 1

1HN-23841-00-00

1
Out of stock

12

NUT (682)

95380-10700-00

1

$5.78

In stock

13

JOINT, UNIVERSAL 2

1HN-23845-00-00

1
Out of stock

14

NUT, HEXAGON (8A5)

90170-10186-00

1

$7.60

In stock

15

ROD, TIE

1HN-23831-00-00

—

$24.68

In stock

16

JOINT, UNIVERSAL 1

1HN-23841-00-00

1
Out of stock

17

NUT (682)

95380-10700-00

1

$5.78

In stock

18

JOINT, UNIVERSAL 2

1HN-23845-00-00

1
Out of stock

19

NUT, HEXAGON (8A5)

90170-10186-00

1

$7.60

In stock

20

NUT, SELF-LOCKING (8U7)

90185-10115-00

—

$6.82

In stock

21

PIN, COTTER

91490-20025-00

1

$1.31

In stock
