1986 Yamaha 4-Zinger (YF60S) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1986 Yamaha 4-Zinger (YF60S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

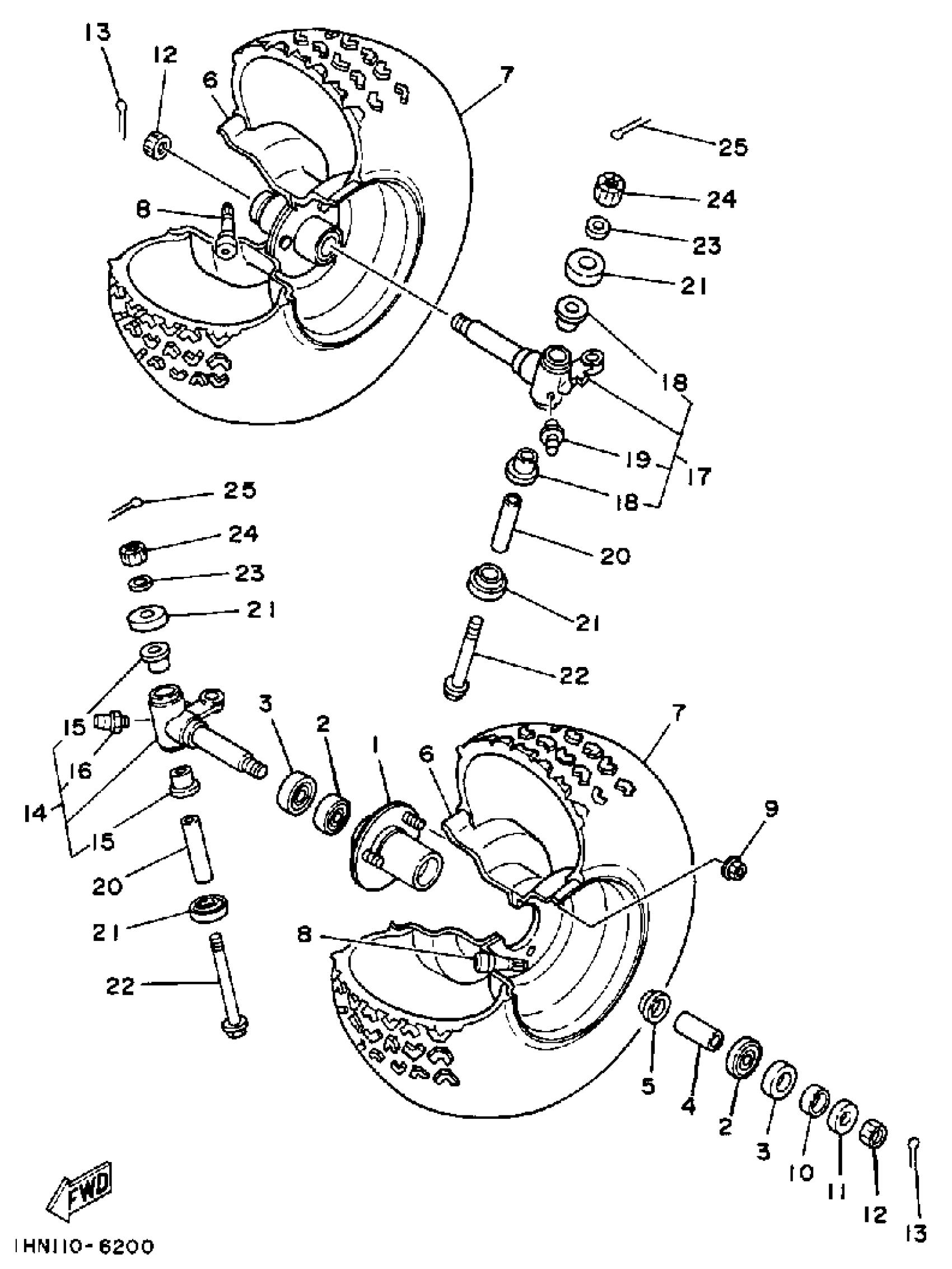

1986 Yamaha 4-Zinger (YF60S) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1HN-25111-00-00

1
Out of stock

2

BRG,R-B 6002RS 32MM 30G KY

93306-00201-00

1
Out of stock

3

OIL SEAL (22X32X5-818)

93102-22087-00

1
Out of stock

4

SPACER, BEARING

90560-15298-00

1
Out of stock

5

FLANGE, SPACER 1

1HN-25115-00-00

1
Out of stock

6

WHEEL, FRONT

3NJ-25180-00-35

1
Out of stock

7

UNAVAILABLE IN PRICE BOOK (15X7.00-6)

97107-063E9-00

1
Out of stock

8

VALVE, RIM(2GH)

93900-00030-00

1
Out of stock

9

NUT(55X)

90179-08491-00

1
Out of stock

10

COLLAR

90387-154M7-00

1
Out of stock

11

WASHER, PLATE (583)

90201-12593-00

1
Out of stock

12

NUT, CASTLE(36R)

90171-12039-00

1
Out of stock

13

PIN, COTTER(6L5)

91490-25030-00

1
Out of stock

14

STEERING KNUCKLE L (LEFT)

1HN-23501-00-00

1
Out of stock

15

BUSH, SOLID (J10)

90381-15032-00

1
Out of stock

16

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

17

STEERING KNUCKLE R (RIGHT)

1HN-23502-00-00

1
Out of stock

18

BUSH, SOLID (J10)

90381-15032-00

1
Out of stock

19

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

20

SPACER

90560-10271-00

1
Out of stock

21

OIL SEAL, SO-TYPE

93104-26088-00

1
Out of stock

22

BOLT, WASHER BASED

90105-10381-00

1
Out of stock

23

WASHER PLATE (3L6)

90201-08759-00

—
Out of stock

24

NUT 3532518200

90171-10004-00

—
Out of stock

25

PIN, COTTER

91490-20025-00

—
Out of stock
