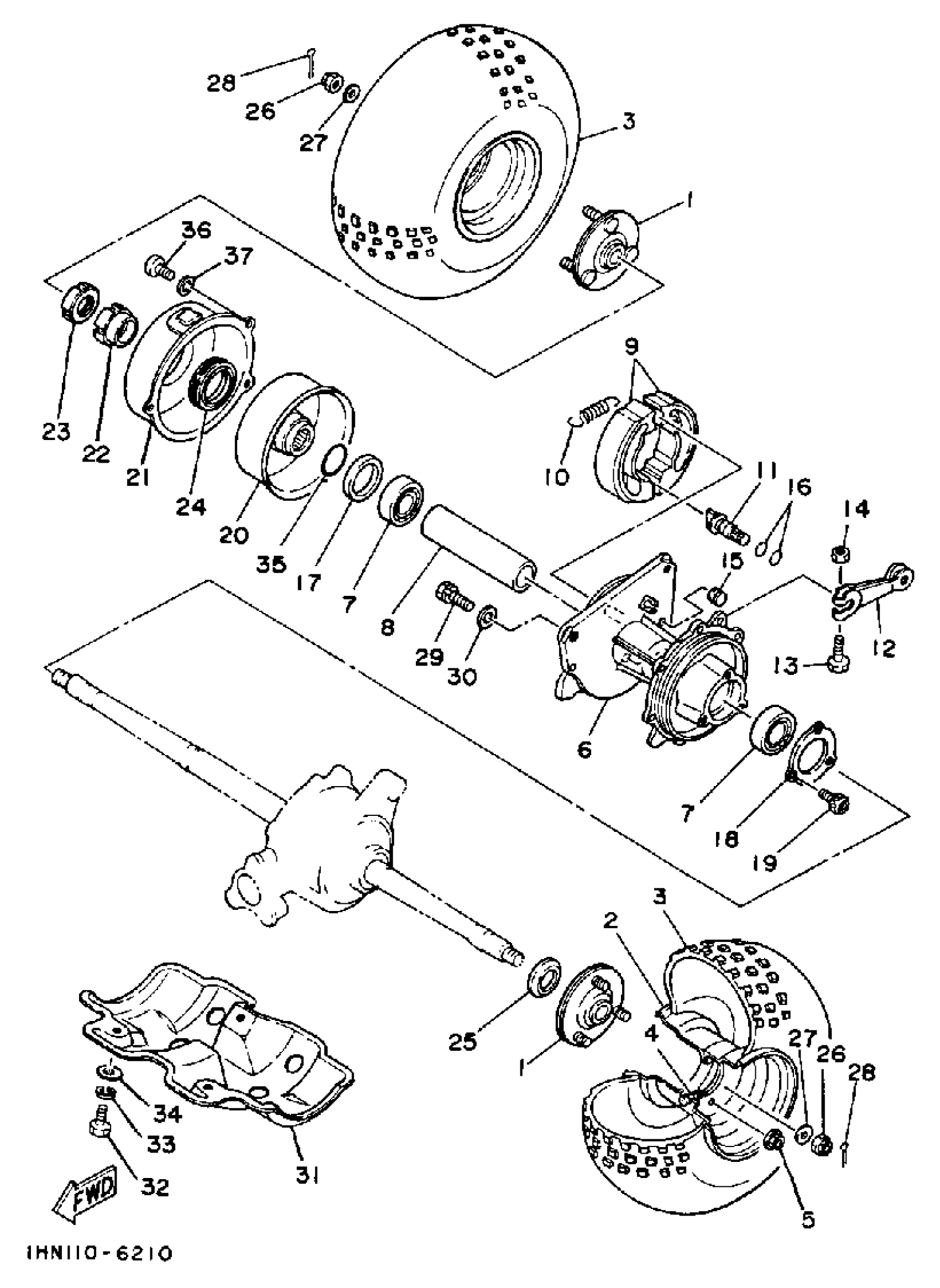

Yamaha YF60S (4-ZINGER) 1986 REAR WHEEL Diagram

#

Description
Price

1

COLLAR, WHEEL

36R-25383-00-00

Unavailable

2

WHEEL, FRONT

3NJ-25180-00-35

Unavailable

3

15X7.00-6 KT465TL

94107-063E8-00

Unavailable

4

VALVE, RIM(2GH)

93900-00030-00

$16.99

5

NUT(55X)

90179-08491-00

$8.49

6

HUB, REAR

36R-25311-00-00

Unavailable

7

BEARING(1FF)

93306-00519-00

$36.99

8

SPACER, BEARING

90560-25307-00

Unavailable

9

BRAKESHOE SET-2PCS

36R-W2536-00-00

Unavailable

10

SPRING, TENSION (18A)

90506-18288-00

$8.49

11

CAMSHAFT

5G3-25351-02-00

Unavailable

12

LEVER, CAMSHAFT

36R-25355-00-00

Unavailable

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

GROMMET (397)

90480-10068-00

$8.49

16

O-RING(3LD)

93210-12790-00

Unavailable

17

OIL SEAL (36R)

93102-35318-00

Unavailable

18

PLATE, COVER

(36R-46114-00-00)

Unavailable

19

BOLT, SOCKET

91314-06016-00

Unavailable

20

DRUM BRAKE

36R-2531E-00-00

Unavailable

21

COVER 1

36R-25715-01-00

Unavailable

22

NUT, SPEC''L SHAPE

90179-23502-00

Unavailable

23

NUT, SPEC''L SHAPE

90179-23503-00

Unavailable

24

OIL SEAL (705)

93102-35191-00

Unavailable

25

COVER, HUB DUST

36R-25367-00-00

Unavailable

26

NUT, CASTLE(36R)

90171-12039-00

Unavailable

27

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

28

PIN, COTTER(6L5)

91490-25030-00

Unavailable

29

BOLT,WITH WASHER

90119-10078-00

Unavailable

30

WASHER, PLATE (29U)

90201-104G0-00

Unavailable

31

COVER

36R-2219X-00-00

Unavailable

32

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

35

O-RING (36R)

93210-25642-00

Unavailable

36

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

37

WASHER, SPRING

92995-06100-00

Unavailable
