REAR WHEEL

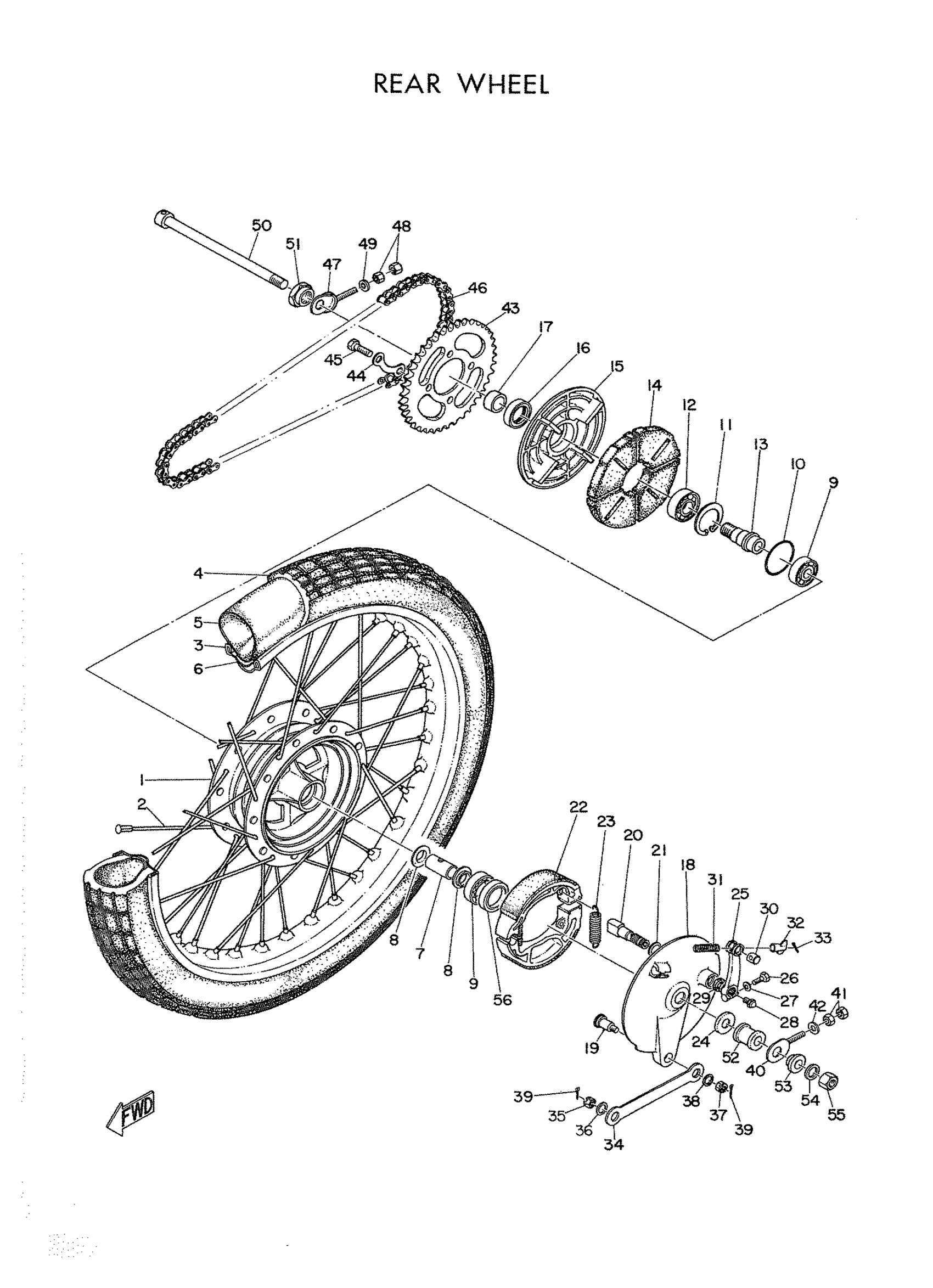

Yamaha YDT1 (YDT1) 155 1963 REAR WHEEL Diagram
#
1
HUB,REAR
278-25311-00-00
Unavailable
2
SPOKE SET, REAR
152-25304-00-00
Unavailable
3
RIM 1.60X18
94416-18013-00
Unavailable
4
325-18 YOKO RAYON
94132-18089-00
Unavailable
5
TUBE (5H5)
94227-18195-00
$35.99
6
BAND, RIM (2J4)
94340-18086-00
$17.99
7
SPACER
90560-17140-00
Unavailable
8
FLANGE, SPACER
146-25315-00-00
$7.99
9
BEARING(4HM)
93306-30317-00
$39.99
10
O-RING (70E)
93210-54534-00
Unavailable
11
CIRCLIP(26H)
99009-52500-00
$12.49
12
BEARING
93306-20502-00
Unavailable
13
AXLE, SPROCKET
152-25387-00-00
Unavailable
14
DAMPER, CLUTCH
148-25364-00-00
Unavailable
15
CLUTCH,HUB
168-25366-00-00
Unavailable
16
OIL SEAL
93102-32037-00
Unavailable
17
COLLAR
90387-23180-00
Unavailable
18
PLATE, BRAKE SHOE
152-25321-00-00
Unavailable
19
BOLT(3DM)
97024-06020-00
Unavailable
20
CAMSHAFT
152-25351-00-00
Unavailable
21
SHIM, CAM SHAFT
148-25353-00-00
Unavailable
22
BRAKE SHOE KIT
5R3-W253E-00-00
Unavailable
23
SPRING, BRAKE SHOE RETURN
148-25333-00-00
Unavailable
24
COVER, BRAKE PLATE
148-25327-00-00
Unavailable
25
LEVER, CAMSHAFT
148-25355-00-00
Unavailable
26
BOLT, HEXAGON
97017-06025-00
Unavailable
27
NUT,SPEC'L SHAPE
90179-22124-00
Unavailable
28
NIPPLE, GREASE
93700-06M03-00
Unavailable
29
SEAL, CAM SHAFT
148-25359-00-00
Unavailable
30
COLLAR
90387-23181-00
Unavailable
31
SPRING, COMPRESSION (3L5)
90501-10074-00
Unavailable
32
NUT (25K)
90179-06411-00
Unavailable
33
PIN, COTTER
91490-16020-00
Unavailable
34
BAR, TENSION
148-25371-00-00
Unavailable
35
NUT, CASTLE
95307-10900-00
Unavailable
36
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
37
NUT, SLOTTED
95307-08900-00
Unavailable
38
WASHER, PLAIN
92990-08200-00
Unavailable
39
PIN, COTTER
91490-20025-00
Unavailable
40
PULLER, CHAIN (LH)
148-25388-00-00
Unavailable
41
NUT(6L2)
95333-08600-00
Unavailable
42
WASHER, PLAIN
92990-08200-00
Unavailable
43
SPROCKET, DRIVN 39T
152-25439-00-00
Unavailable
44
WASHER
148-25412-00-00
Unavailable
45
CLIP 136253750000
90468-12006-00
Unavailable
46
CHAIN
94505-25094-00
Unavailable
46
. MASTER LINKS
94615-25001-00
Unavailable
47
PULLER, CHAIN (RH)
148-25389-00-00
Unavailable
48
NUT(6L2)
95333-08600-00
Unavailable
49
WASHER, PLAIN
92990-08200-00
Unavailable
50
AXLE, WHEEL
152-25381-00-00
Unavailable
51
NUT,SPEC'L SHAPE
90179-22124-00
Unavailable
52
COLLAR, WHEEL
148-25383-00-00
Unavailable
53
COLLAR
90387-17429-00
Unavailable
54
WASHER, WHEEL
156-25384-00-00
Unavailable
55
NUT,HEXAGON
90170-16083-00
Unavailable
56
OIL SEAL
93104-25008-00
Unavailable
