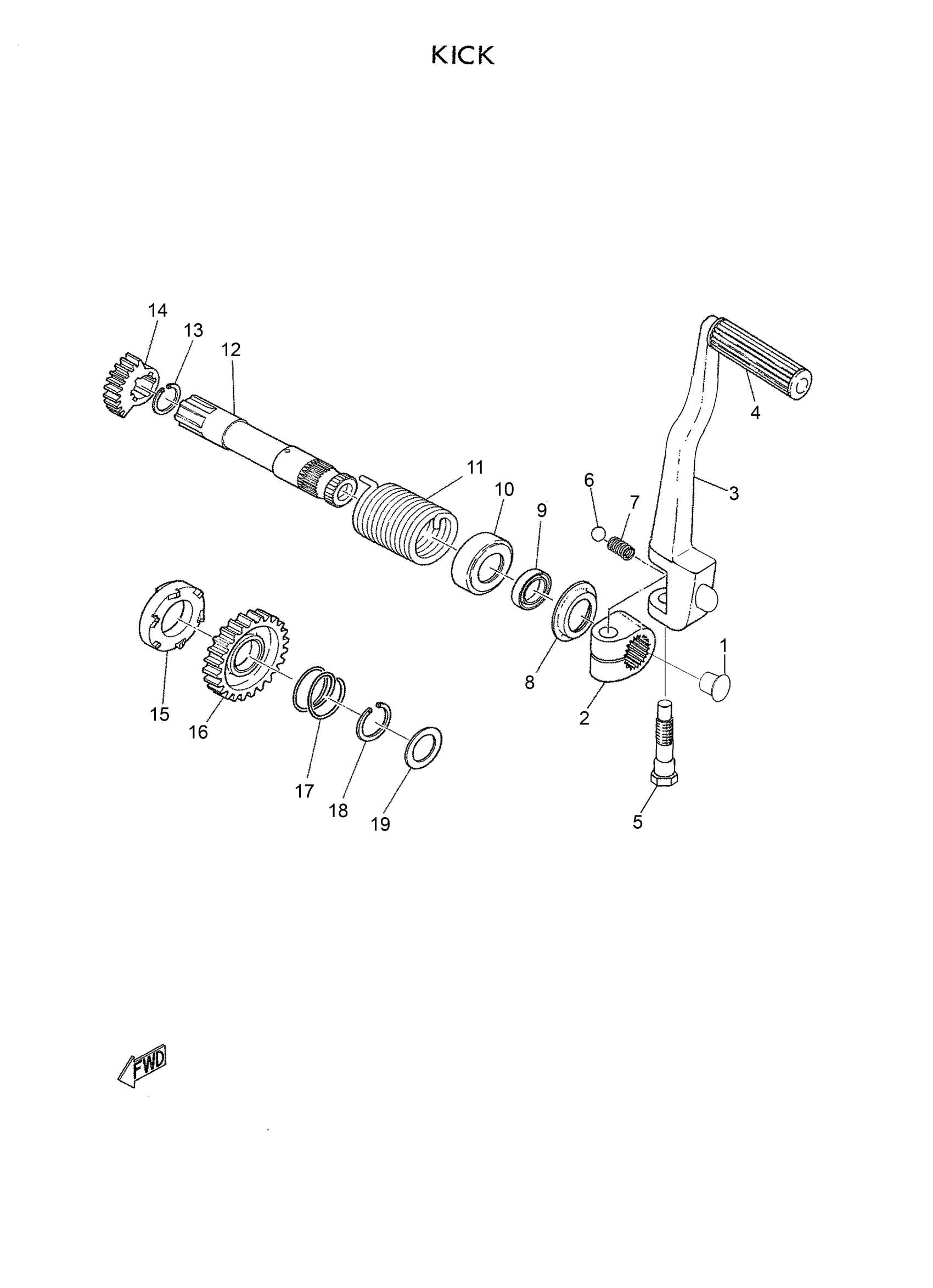

Yamaha YDT1 (YDT1) 155 1963 KICK Diagram

#

Description
Price

1

KICK SHAFT PLUG

OLD-00941-07-01

Unavailable

2

FITTING BOSS

OLD-00941-07-02

Unavailable

3

KICK CRANK

OLD-00941-07-03

Unavailable

4

COVER, KICK LEVER

156-15618-01-00

$7.99

5

BOLT, KICK CRANK

150-15623-00-00

Unavailable

6

BALL

93501-04011-00

$8.49

7

SPRING,COMPRESSION

90501-14093-00

Unavailable

8

COVER, KICK AXLE

146-15662-00-00

Unavailable

9

OIL SEAL (20X30X4.5-146)

93104-20007-00

$8.49

10

GUIDE, SPRING

146-15664-00-00

Unavailable

11

SPRING,TORSION

90508-35069-00

Unavailable

12

AXLE, KICK

146-15661-00-00

Unavailable

13

CIRCLIP, OUTER

93440-20002-00

Unavailable

14

GEAR, KICK

148-15641-00-00

Unavailable

15

WHEEL, RATCHET

148-15671-00-00

Unavailable

16

GEAR, KICK PINION

148-15631-00-00

Unavailable

17

SPRING, RATCHET

146-15675-00-00

Unavailable

18

CIRCLIP, OUTER

93440-26004-00

Unavailable

19

WASHER, PLATE 1832514700

90201-20269-00

Unavailable
