- YDT1 (YDT1) 155 1963
HANDLE AND CABLES

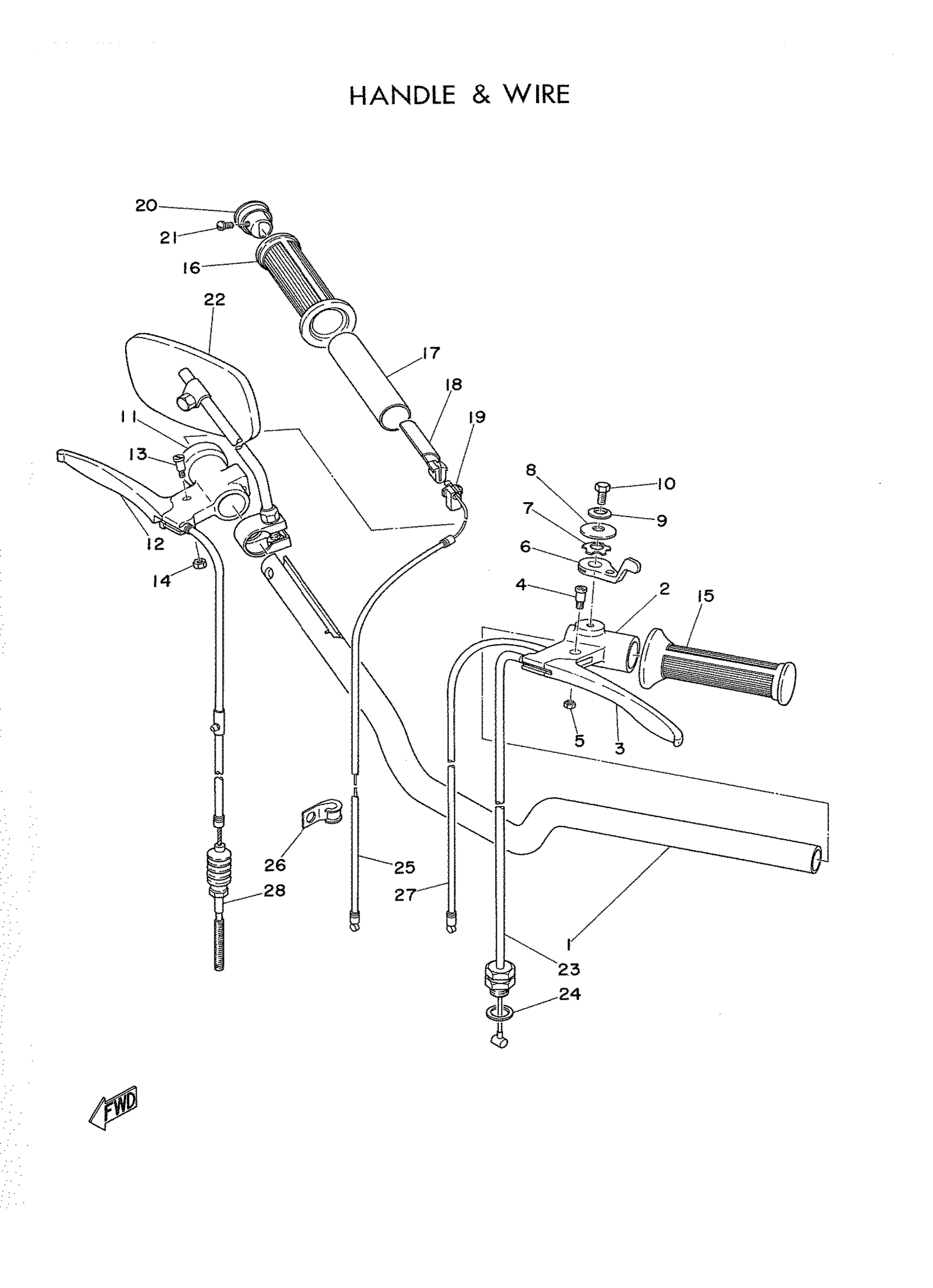

Yamaha YDT1 (YDT1) 155 1963 HANDLE AND CABLES Diagram
#
1
HANDLEBAR
152-26111-10-00
Unavailable
2
LEVER HOLDER ASSY (LH)
148-82610-00-00
Unavailable
3
. LEVER, HANDLE (LH)
136-82912-00-00
Unavailable
4
SCREW, PAN HEAD(4MY)
98507-05018-00
$3.28
5
NUT, HEXAGON SMALL
95317-05700-00
$8.49
6
LEVER, STARTER
136-83941-00-00
Unavailable
7
WASHER,SPEC'L SHAP
90209-12115-00
Unavailable
8
COVER, STARTER
136-83942-00-00
Unavailable
9
WASHER, STARTER
136-83943-00-00
Unavailable
10
BOLT (11T)
90101-06576-00
$8.49
11
LEVER HOLDER ASSY (RH)
148-82820-00-00
Unavailable
12
. LEVER (RH)
136-83922-00-00
Unavailable
13
SCREW, PAN HEAD(4MY)
98507-05018-00
$3.28
14
NUT, HEXAGON SMALL
95317-05700-00
$8.49
15
GRIP (L.H)
136-26241-00-00
Unavailable
16
GRIP RH
136-26242-00-00
Unavailable
17
NUT
136-26243-00-00
Unavailable
18
SLIDER 1
137-26244-00-00
Unavailable
19
STOPPER,CABLE
135-26245-00-00
Unavailable
20
END,GRIP
137-26246-01-00
Unavailable
21
SCREW,FLAT HEAD
92701-05008-00
Unavailable
22
MIRROR ASSEMBLY RH
266-26290-00-00
Unavailable
23
WIRE, CLUTCH
148-26335-10-00
Unavailable
24
GASKET, CLUTCH WIRE
148-26336-00-00
Unavailable
25
WIRE, THROTTLE 1
OLD-00941-10-34
Unavailable
26
WIRE, HOLDER
148-21162-00-00
Unavailable
27
WIRE, STARTER
OLD-00941-10-36
Unavailable
28
WIRE, BRAKE
148-26341-10-00
Unavailable
