1963 Yamaha YDT1 (YDT1) Generator Diagram

← All diagrams

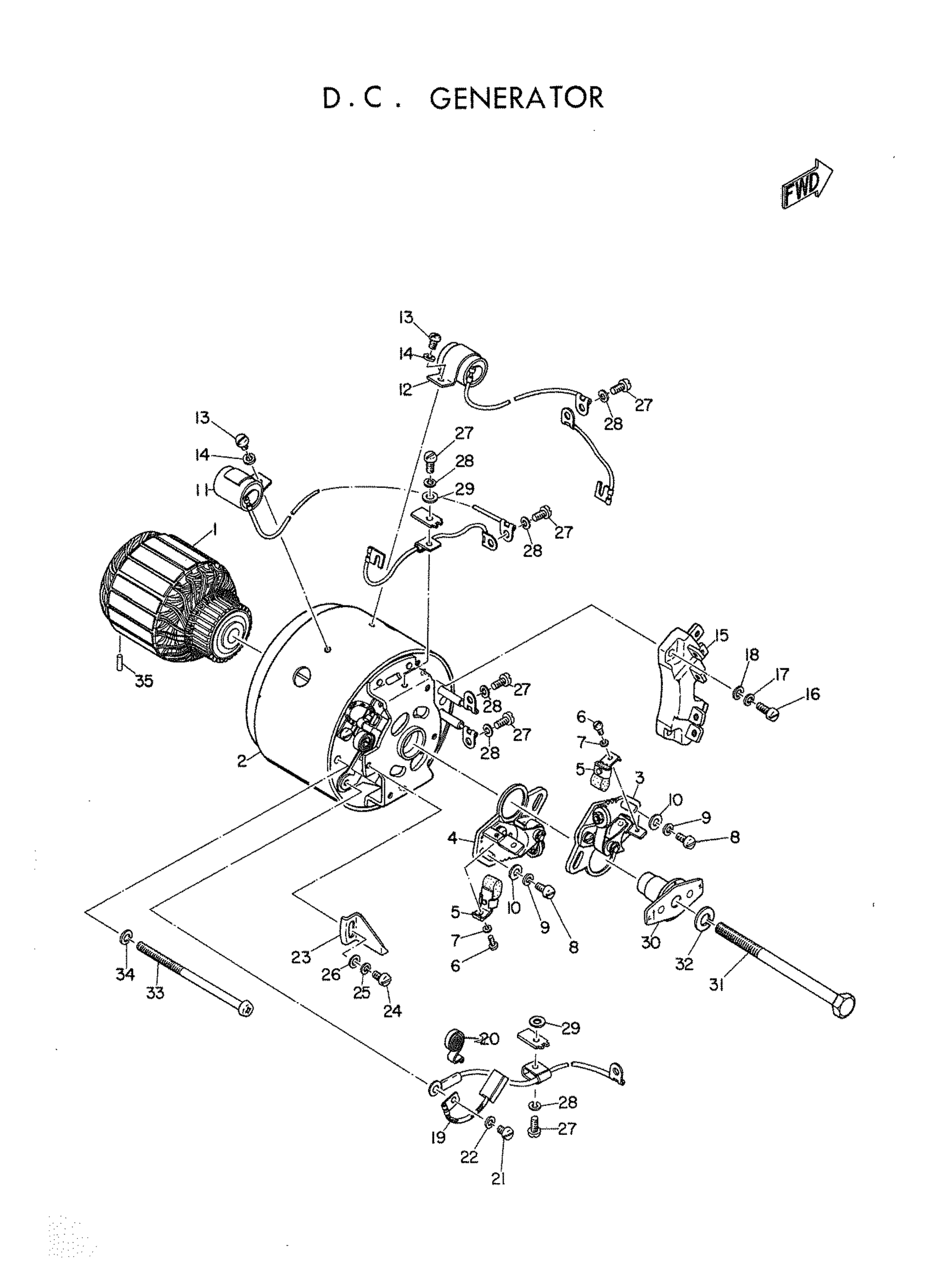

Find the part on the Generator diagram for your 1963 Yamaha YDT1 (YDT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1963 Yamaha YDT1 (YDT1) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ARMATURE

148-81255-10-00

1
Out of stock

2

STATOR ASSEMBLY

148-81110-10-00

1
Out of stock

3

CONTACT BREAKER ASSY (LH)

148-81221-11-00

1
Out of stock

4

CONTACT BREAKER ASSY (RH)

148-81222-10-00

1
Out of stock

5

CONDENSER

146-81126-10-00

1
Out of stock

6

LUBRICATOR

148-81231-10-00

1
Out of stock

8

BRUSH

146-81211-10-00

1
Out of stock

9

SPRING, BRUSH

146-81113-10-00

1
Out of stock

10

SCREW,PAN HEAD

164-81246-20-00

1
Out of stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

13

. SCREW

92503-03006-00

1
Out of stock

14

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

15

SCREW,PAN HEAD

164-81245-20-00

1
Out of stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

17

GASKET, EXHAUST

98507-05008-00

—

$2.69

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

GOVERNOR ASY

148-81153-01-00

1
Out of stock

20

SCREW, STATOR

146-81135-00-00

1
Out of stock

21

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

22

BOLT

148-81152-10-00

1
Out of stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

24

PIN, DOWEL

93603-14026-00

—
Out of stock
