1963 Yamaha YDT1 (YDT1) Electrical Diagram

← All diagrams

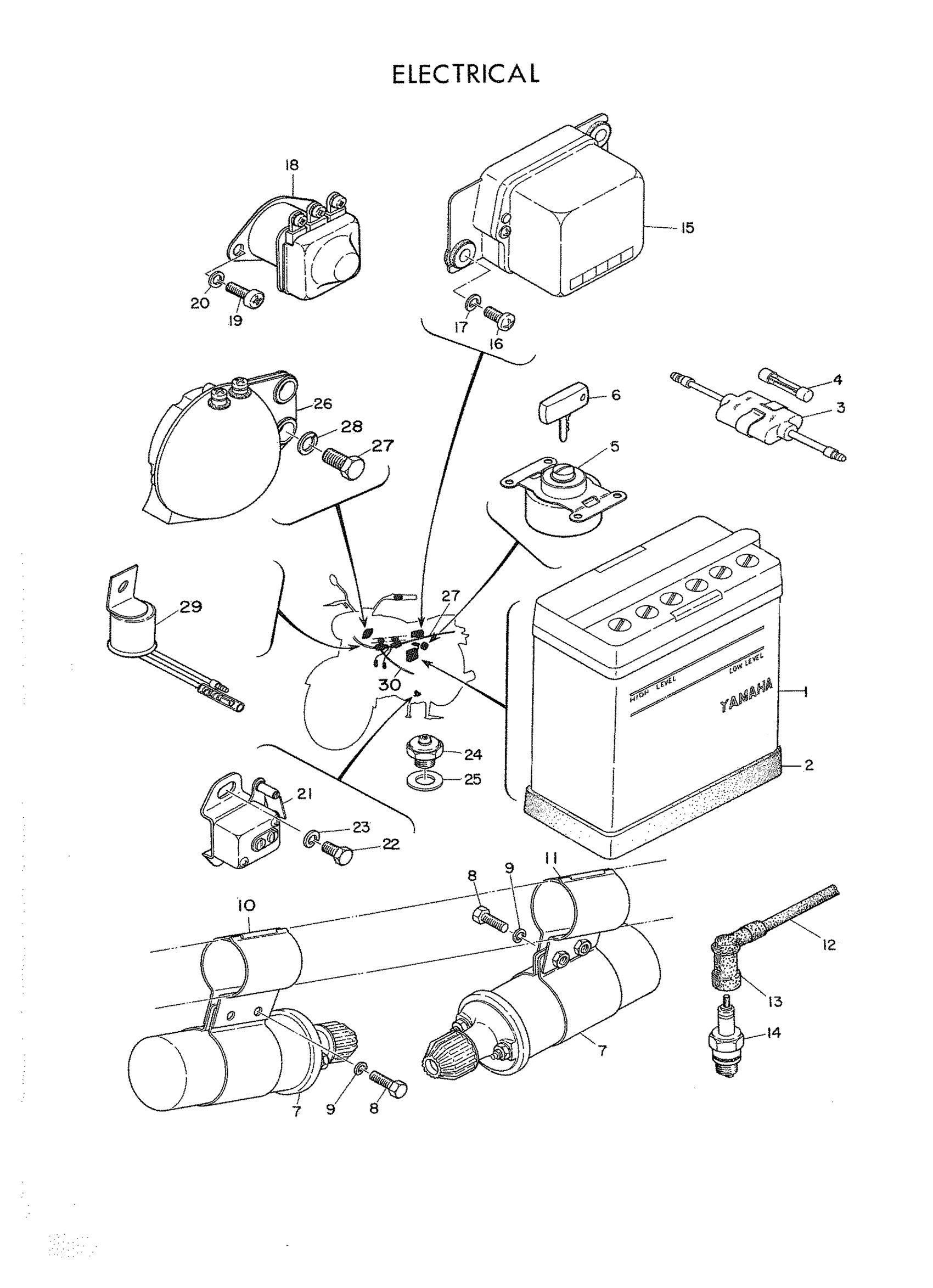

Find the part on the Electrical diagram for your 1963 Yamaha YDT1 (YDT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1963 Yamaha YDT1 (YDT1) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

12N7C-3D

121-82110-79-00

1
Out of stock

2

SEAT, BATTERY

121-82122-00-00

1
Out of stock

3

FUSE HOLDER ASSY

146-82150-00-00

1
Out of stock

4

FUSE

1A0-82161-00-00

1
Out of stock

5

MAIN SWITCH ASY

148-82508-19-00

1
Out of stock

6

. KEY

148-82511-00-00

1
Out of stock

7

IGNITION COIL ASSY

148-82310-00-00

1
Out of stock

8

BOLT, HEXAGON

97313-05016-00

1
Out of stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

HOLDER, COIL FITTING

150-82312-00-00

1
Out of stock

11

LEVER R

218-83922-30-38

1
Out of stock

12

CORD, HIGH TENSION (LH)

OLD-00941-00-11

1
Out of stock

13

PLUG CAP ASSY

166-82370-20-00

1

$32.07

In stock

14

PLUG, SPARK

94701-00040-00

1
Out of stock

15

VOLTAGE REGULATOR ASSY

148-81910-10-00

1
Out of stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

STARTER, SWITCH ASSY

146-81940-10-00

1
Out of stock

19

SCREW,PAN HEAD

92503-05012-00

1
Out of stock

20

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

21

STOP SWITCH

150-82530-00-00

1
Out of stock

22

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

NEUTRAL SWITCH ASY

146-82540-01-00

1
Out of stock

25

WASHER, PLATE

90201-12790-00

—

$6.85

In stock

26

HORN

OLD-00941-00-05

1
Out of stock

27

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

FLASHER RELAY ASY

136-83350-20-00

1
Out of stock

30

WIRE HARNESS ASSY

OLD-00941-00-06

1
Out of stock
