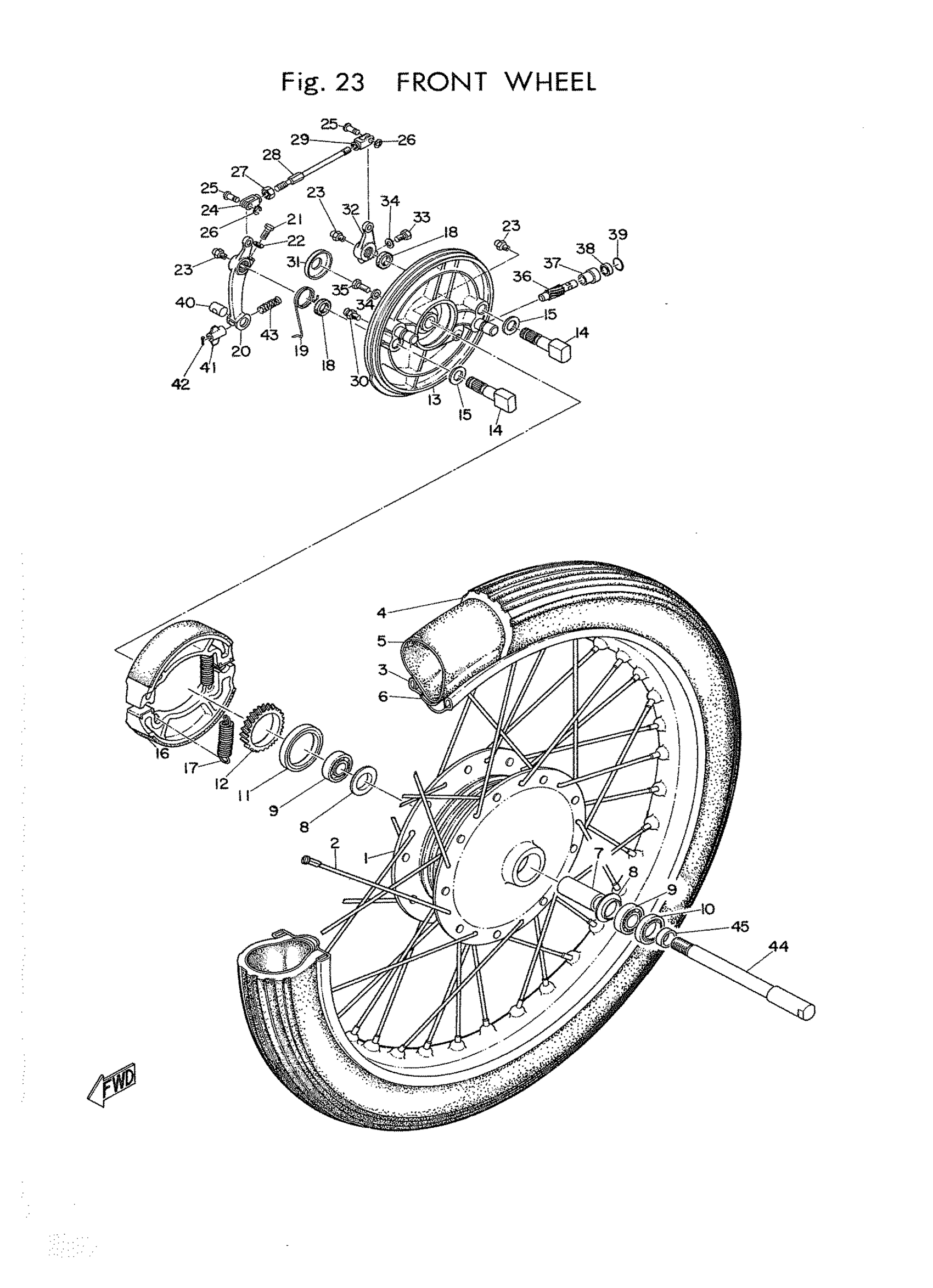

Yamaha YDT1 (YDT1) 155 1963 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

152-25111-00-00

Unavailable

2

SPOKE SET, FRONT

152-25104-00-00

Unavailable

3

RIM 1.60X18

94416-18013-00

Unavailable

4

275-18 YOKO Y506

94127-18309-00

Unavailable

5

TUBE

94227-18010-00

Unavailable

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

FLANGE, SPACER

146-25315-00-00

$7.99

8

SPACER, BEARING

152-25117-00-00

Unavailable

9

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

10

OIL SEAL, SDD-TYPE

93105-24006-00

Unavailable

11

OIL SEAL, OS-TYPE

93107-50003-00

Unavailable

12

GEAR, DRIVE

152-25135-00-00

Unavailable

13

PLATE,BRAKE SHOE

156-25121-01-00

Unavailable

14

CAMSHAFT

168-25151-00-00

Unavailable

15

SHIM, CAM SHAFT

148-25353-00-00

$6.99

16

BRAKE SHOE KIT

5R3-W253E-00-00

Unavailable

17

SPRING, BRAKE SHOE RETURN

148-25333-00-00

Unavailable

18

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

19

SPRING,TORSION

90508-23032-00

Unavailable

20

LEVER, CAMSHAFT 1

152-25155-00-00

Unavailable

21

BOLT, HEXAGON

97017-06025-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

NIPPLE, GREASE

93700-06M03-00

Unavailable

24

END, ROD 1

152-25163-00-00

Unavailable

25

PIN, SPEC'L SHAPE

90249-06095-00

Unavailable

26

COVER, BRAKE PLATE

148-25327-00-00

Unavailable

27

AXLE, WHEEL

148-25181-00-00

Unavailable

28

ROD, CONNECTING

152-25161-00-00

Unavailable

29

END, ROD 2

152-25164-00-00

Unavailable

31

NUT (25K)

90179-06411-00

Unavailable

32

PIN, COTTER

91490-16020-00

Unavailable

33

BOLT(3DM)

97024-06020-00

Unavailable

34

WASHER, SPRING

92995-06100-00

Unavailable

35

BOLT(3DM)

97024-06020-00

Unavailable

36

GEAR, METER

152-25138-00-00

Unavailable

37

BUSHING

109-25136-00-00

Unavailable

38

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

39

O-RING (26H)

93210-14579-00

Unavailable

40

PIN 1562723700

90249-12008-00

Unavailable

41

NUT (25K)

90179-06411-00

Unavailable

42

PIN, COTTER

91490-16020-00

Unavailable

43

SPRING, (180-27236-00)

90501-10245-00

Unavailable

44

AXLE, WHEEL

152-25181-00-00

Unavailable

45

COLLAR

90387-17136-00

Unavailable
