Description

Price

1

FRT FLSHR LITE ASY

146-83310-20-81

Unavailable

2

BULB (12V 38W)

4H7-84744-00-00

Unavailable

3

. LENS, FLASHER

136-83312-20-00

Unavailable

4

. SCREW

92503-03006-00

Unavailable

5

WASHER, SPRING

92990-03100-00

$8.49

6

NUT(6L2)

95333-08600-00

$2.49

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

REAR FLASHER LAMP ASSY

146-83338-20-00

Unavailable

9

BULB (12V 38W)

4H7-84744-00-00

Unavailable

10

. LENS, FLASHER

136-83312-20-00

Unavailable

11

. SCREW

92503-03006-00

Unavailable

12

WASHER, SPRING

92990-03100-00

$8.49

13

NUT(6L2)

95333-08600-00

$2.49

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

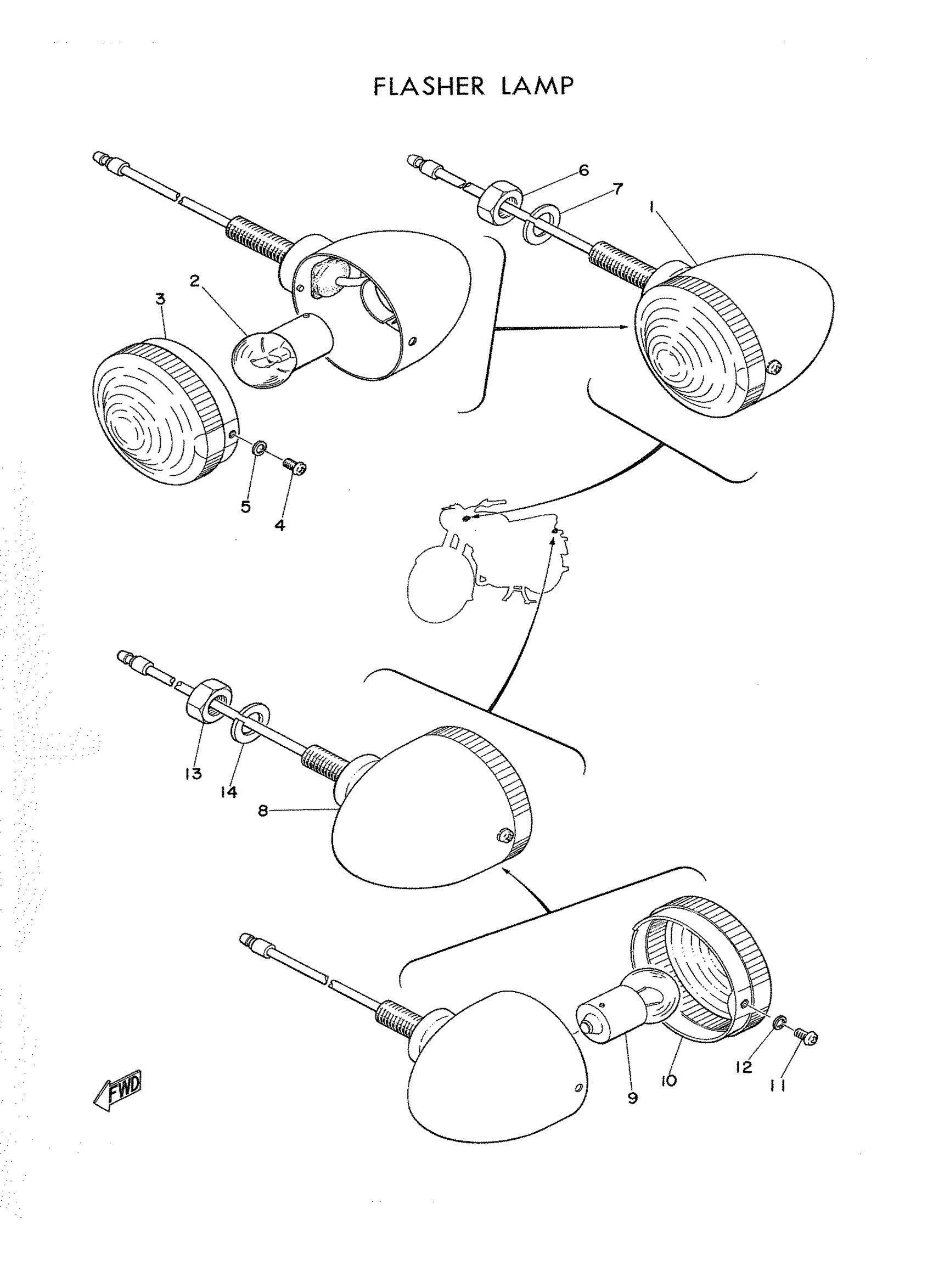

Yamaha YDT1 (YDT1) 155 1963 FLASHER LAMP Diagram

FRT FLSHR LITE ASY

BULB (12V 38W)

. LENS, FLASHER

. SCREW

WASHER, SPRING

NUT(6L2)

YBS67-8 WASHER, SPRING

REAR FLASHER LAMP ASSY

BULB (12V 38W)

. LENS, FLASHER

. SCREW

WASHER, SPRING

NUT(6L2)

YBS67-8 WASHER, SPRING
