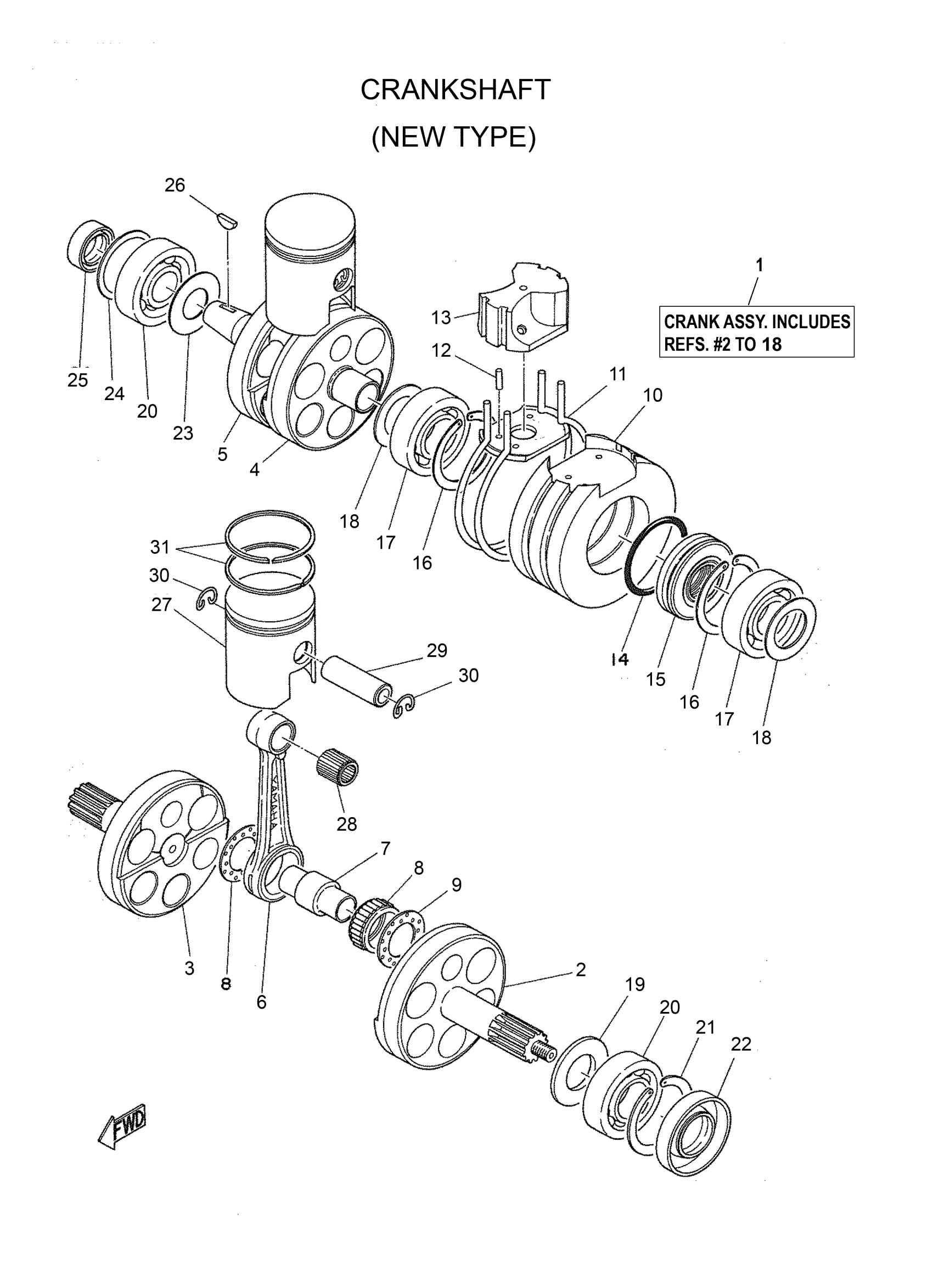

Yamaha YDT1 (YDT1) 155 1963 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

148-11400-00-00

Unavailable

2

. CRANK 1 (LH)

146-11412-00-00

Unavailable

3

. CRANK 1 (RH)

146-11422-00-00

Unavailable

4

. CRANK 2 (LH)

146-11432-00-00

Unavailable

5

. CRANK 2 (RH)

146-11442-00-00

Unavailable

6

ROD,CONNECTING

148-11651-01-00

Unavailable

7

. PIN, CRANK

150-11681-00-00

Unavailable

8

BEARING,CYL.#10

93310-423A8-00

Unavailable

9

WASHER,SPEC'L SHAP

90209-23072-00

Unavailable

10

COVER,CRANK

148-11511-01-00

Unavailable

11

SEAL, CRANK COVER 1

148-11512-00-00

Unavailable

12

PIN,DOWEL (137)

93604-14012-00

$1.81

13

. METAL, FILLER

152-11541-00-00

Unavailable

14

O-RING

93210-46044-00

$7.49

15

SEAL,LABYRINTH 1

174-11515-00-00

Unavailable

16

. CIRCLIP

93450-52010-00

Unavailable

17

BEARING (3Y1)

93306-20541-00

Unavailable

18

SHIM,CRANK 3

146-11563-00-00

Unavailable

19

SHIM, CRANK 1

146-11561-00-00

Unavailable

20

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

21

CIRCLIP,INNER

93450-52014-00

Unavailable

22

OIL SEAL

93103-30013-00

Unavailable

23

SHIM,CRANK 2

146-11562-00-05

Unavailable

24

WASHER, BEARING COVER

148-11565-00-00

Unavailable

25

OIL SEAL (20X30X6-648)

93101-20048-00

Unavailable

26

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

27

PISTON STD

152-11631-00-96

Unavailable

27

PISTON 1 O/S 0.25

152-11635-00-00

Unavailable

27

PISTON 2 O/S 0.50

152-11636-00-00

Unavailable

28

BEARING, SMALL END

93310-21505-00

Unavailable

29

PIN, PISTON

148-11633-00-00

Unavailable

30

CIRCLIP,INNER

93450-16024-00

Unavailable

31

PISTON RINGSET STD

150-11601-00-00

Unavailable

31

PISTON RINGSET 1ST

372-11601-10-00

Unavailable

31

PISTON RINGSET 2ND

372-11601-20-00

Unavailable
