CARBURETOR

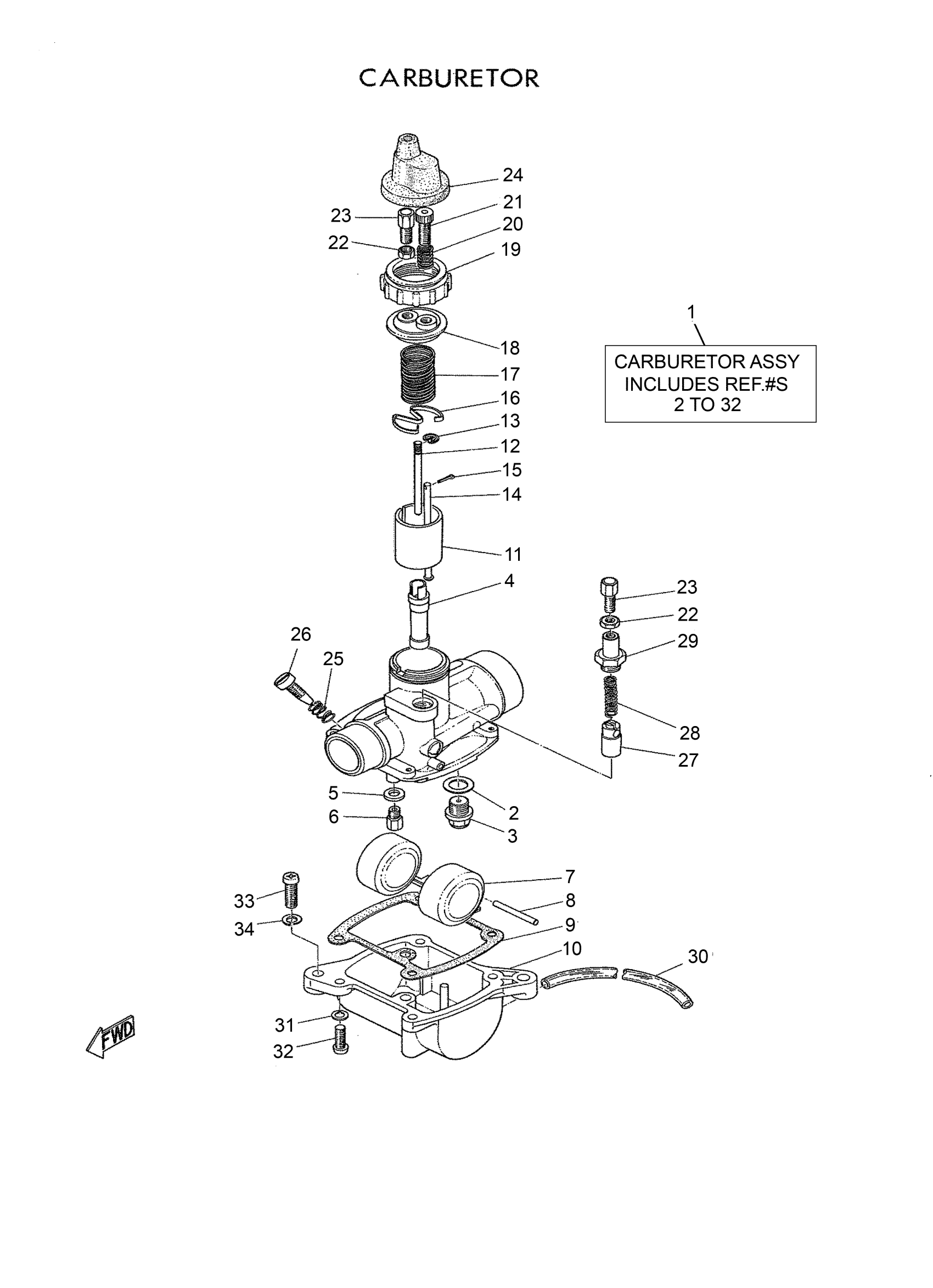

Yamaha YDT1 (YDT1) 155 1963 CARBURETOR Diagram
#
1
CARBURETOR ASSY
148-14101-00-00
Unavailable
2
. WASHER, NEEDLE VALVE
136-14195-00-00
Unavailable
3
. NEEDLE VALVE ASSEMBLY
136-14190-15-00
Unavailable
4
. NOZZLE, MAIN
146-14141-34-00
Unavailable
5
WASHER,MAIN JET
137-14153-00-00
$7.99
6
. JET, MAIN #80
137-14143-16-00
Unavailable
6
. JET, MAIN #90
137-14143-18-00
Unavailable
6
JET, MAIN #100
137-14143-20-00
Unavailable
6
JET, MAIN #110
137-14143-22-A0
Unavailable
6
. JET, MAIN #120
137-14143-24-00
Unavailable
7
. FLOAT
146-14185-00-00
Unavailable
8
PIN, FLOAT
127-14186-00-00
$6.65
9
. GASKET, FLOAT CHAMBER
146-14184-00-00
Unavailable
10
. BODY, FLOAT CHAMBER
146-14181-00-00
Unavailable
11
VALVE, THROTTLE
152-14112-20-00
Unavailable
12
NEEDLE
152-14116-06-00
Unavailable
13
CLIP
137-14137-00-00
Unavailable
14
. BAR, THROTTLE
137-14114-00-00
Unavailable
15
PIN, COTTER
91401-10010-00
Unavailable
16
. SEAT, SPRING
137-14136-00-00
Unavailable
17
. SPRING, THRTL VALVE
146-14131-00-00
Unavailable
18
. TOP, MIXING CHAMBER
136-14158-00-00
Unavailable
19
CAP, MIXING CHAMBER
146-14168-00-00
Unavailable
20
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
21
SCREW, THRTL STOP
127-14121-00-00
Unavailable
22
NUT, WIRE ADJUSTING
127-14161-00-00
Unavailable
23
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
24
CAP
146-14169-00-00
Unavailable
25
. SPRING, AIR ADJUSTING
137-14134-00-00
Unavailable
26
. SCREW, AIR ADJUSTING
146-14123-00-00
Unavailable
27
. PLUNGER, STARTER
136-14171-00-00
Unavailable
28
. SPRING, PLUNGER
102-14135-00-00
Unavailable
29
CAP,PLUNGER
8A7-14174-00-00
Unavailable
30
. PIPE, OVERFLOW
148-14196-00-00
Unavailable
31
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
32
SCREW,PAN HEAD
92503-04012-00
Unavailable
33
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
34
WASHER, SPRING
92995-06100-00
Unavailable
