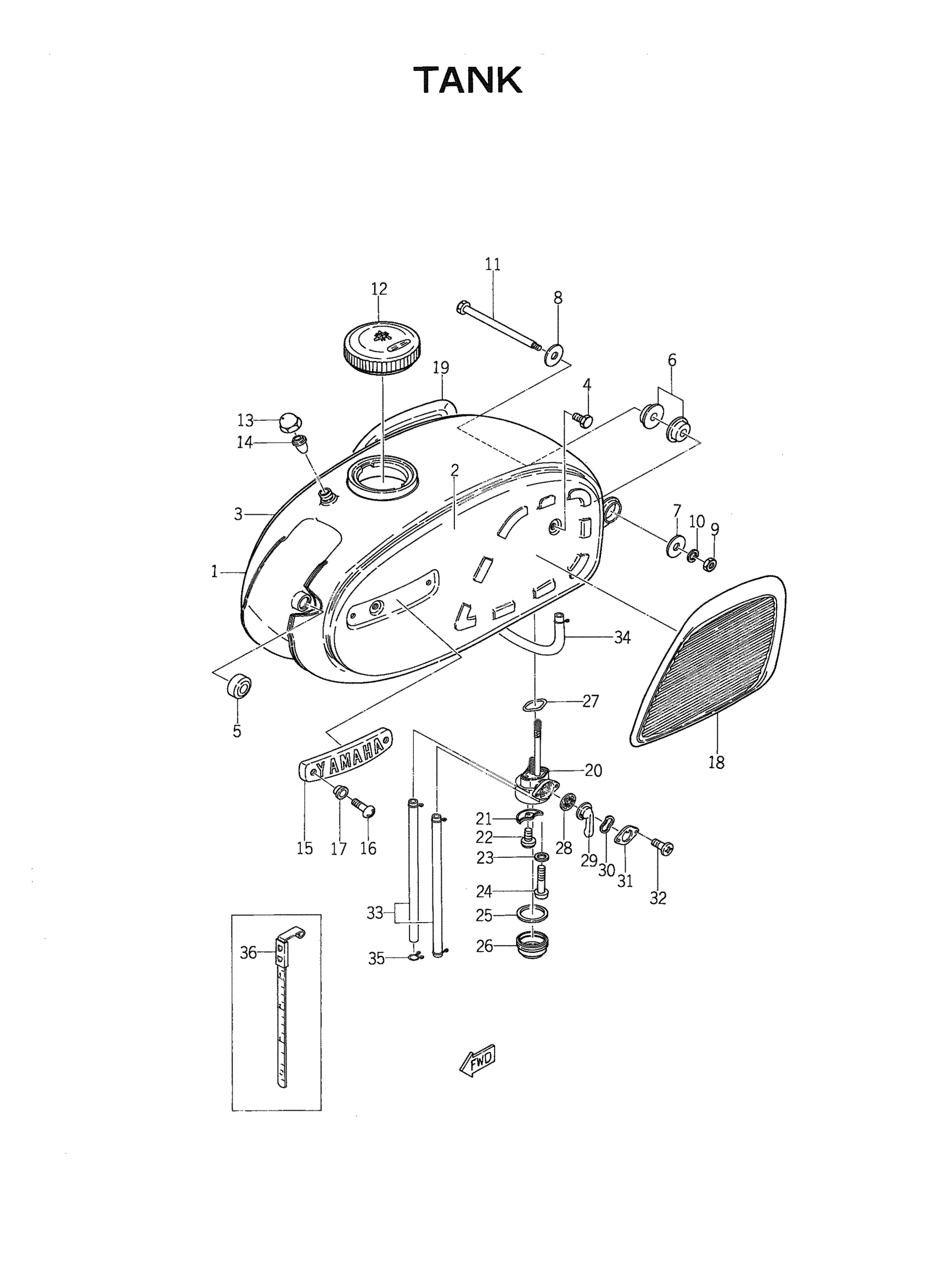

Yamaha YDS5E (YDS5E) 169 1967 TANK Diagram
#
1
FUEL TANK
170-24110-00-81
Unavailable
2
COVER, SIDE 1
169-24129-00-93
Unavailable
3
COVER, SIDE 2
169-24139-00-93
Unavailable
6
DAMPER, LOCATING 2
156-24182-01-00
Unavailable
9
NUT, HEXAGON
95380-06600-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
BOLT
90109-06026-00
Unavailable
13
NUT,CAP
168-24681-00-00
Unavailable
14
VALVE
150-24682-00-00
Unavailable
15
EMBLEM 1
168-24161-00-00
Unavailable
16
SCREW,PAN HEAD
92503-04012-00
Unavailable
16
SCREW, PAN HEAD
98511-04012-00
Unavailable
17
WASHER,PLATE
90202-03002-00
Unavailable
18
GRIP, KNEE 1
170-24171-00-00
Unavailable
19
GRIP, KNEE 2
170-24172-00-00
Unavailable
20
FUEL COCK ASSEMBLY 1
360-24500-00-00
Unavailable
21
. NET, FILTER 2
168-24515-00-00
Unavailable
22
. SCREW
92503-03006-00
Unavailable
22
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
23
GASKET(J17)
90430-06218-00
Unavailable
24
SCREW, PAN HEAD(6H4)
97885-06035-00
Unavailable
25
. GASKET
168-24522-00-00
Unavailable
26
. CUP, FILTER
360-24521-00-00
Unavailable
27
GASKET, BODY
168-24512-00-00
Unavailable
28
VALVE
137-24523-00-00
Unavailable
29
. LEVER, COCK
168-24524-00-00
Unavailable
30
WASHER, WAVE
132-24518-00-00
Unavailable
31
PLATE, LEVER FITTING
132-24525-01-00
Unavailable
32
. SCREW
92503-03006-00
Unavailable
32
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
33
HOSE (L420)
90445-092K1-00
Unavailable
34
HOSE (L420)
90445-092K1-00
Unavailable
35
CLIP 101235600
90467-08003-00
Unavailable
36
GAUGE, FUEL
170-24179-10-00
Unavailable
