- YDS5E (YDS5E) 169 1967
STAND AND BRAKE PEDAL

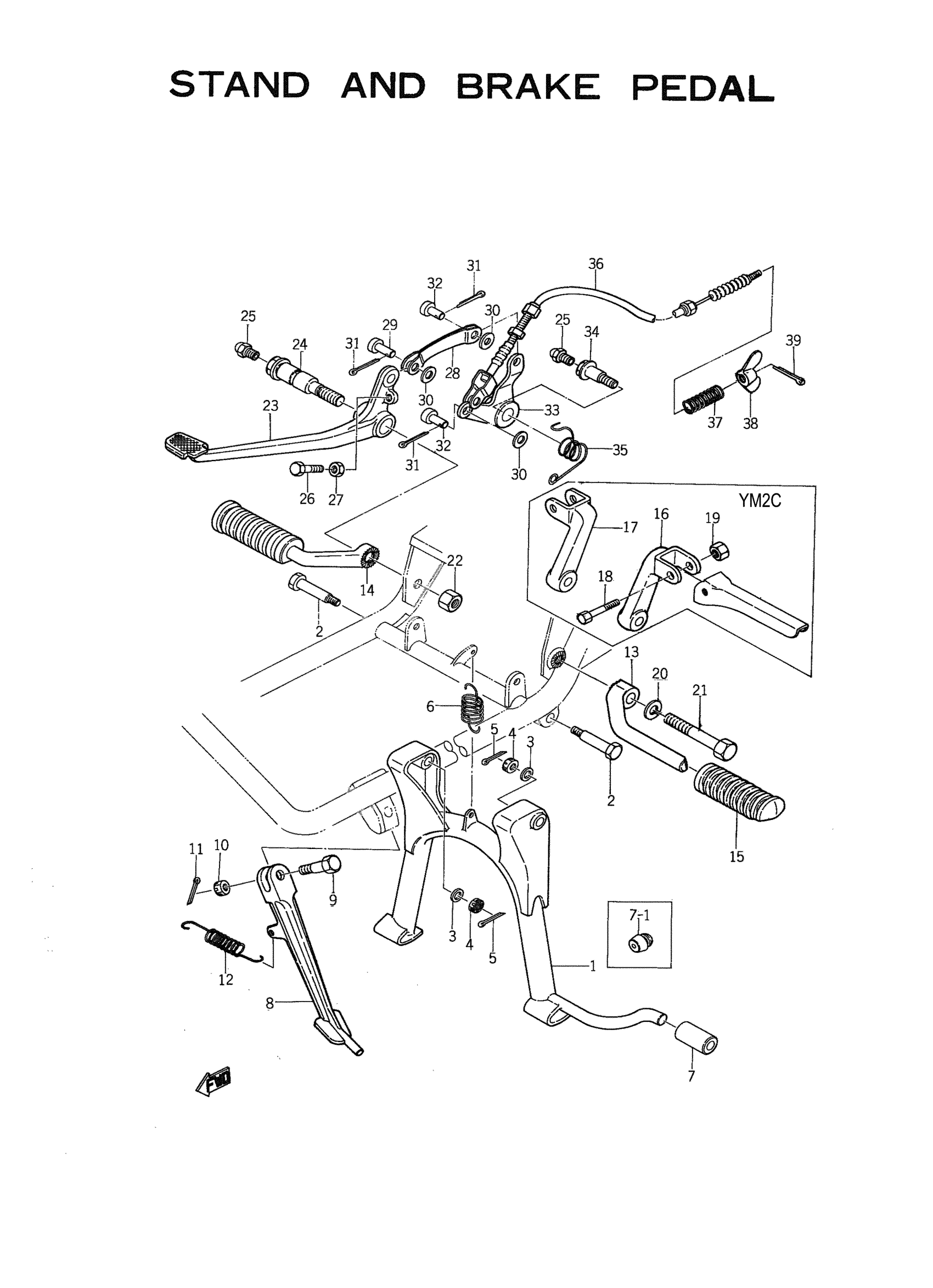

Yamaha YDS5E (YDS5E) 169 1967 STAND AND BRAKE PEDAL Diagram
#
1
STAND, MAIN
156-27111-02-00
Unavailable
2
BOLT
90109-10072-00
Unavailable
4
NUT, CASTLE
95307-10900-00
Unavailable
6
SPRING,TENSION
90506-45062-00
Unavailable
7
STOPPER, MAIN STAND
156-27114-00-00
Unavailable
8
STAND, SIDE
156-27311-00-00
Unavailable
9
BOLT
90109-08185-00
Unavailable
10
NUT, SLOTTED
95307-08900-00
Unavailable
13
FOOTREST 1
170-27411-00-00
Unavailable
14
FOOTREST 2
156-27421-00-00
Unavailable
16
BRACKET, FOOTREST 1
172-27412-00-00
Unavailable
17
BRACKET,FOOTREST 2
157-27422-00-33
Unavailable
18
BOLT (157-27416-00)
90109-08376-00
Unavailable
19
. NUT
95380-08700-00
Unavailable
20
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
21
BOLT,HEXAGON
97321-12040-00
Unavailable
22
NUT, HEXAGON SMALL
95317-12700-00
Unavailable
23
PEDAL,BRAKE
169-27211-00-00
Unavailable
24
SHAFT, BRAKE PEDAL
170-27212-00-00
Unavailable
25
NIPPLE, GREASE
93700-06M03-00
Unavailable
26
BOLT(3DM)
97024-06020-00
Unavailable
27
NUT(650)
95380-06700-00
Unavailable
28
BAR, PEDAL LINK
156-27224-00-00
Unavailable
29
PIN, JOINT
156-27228-00-00
Unavailable
30
WASHER, PLATE 1562722600
90201-08083-00
Unavailable
32
PIN W/HOLE 307181180000
90240-08013-00
Unavailable
33
LINK
156-27215-00-00
Unavailable
34
BOLT
90109-10340-00
Unavailable
35
SPRING,TORSION
90508-26037-00
Unavailable
36
CABLE, BRAKE
156-26351-00-00
Unavailable
37
SPRING, COMPRESSION (3L5)
90501-10074-00
Unavailable
38
NUT (25K)
90179-06411-00
Unavailable
39
PIN, COTTER
91490-16020-00
Unavailable
