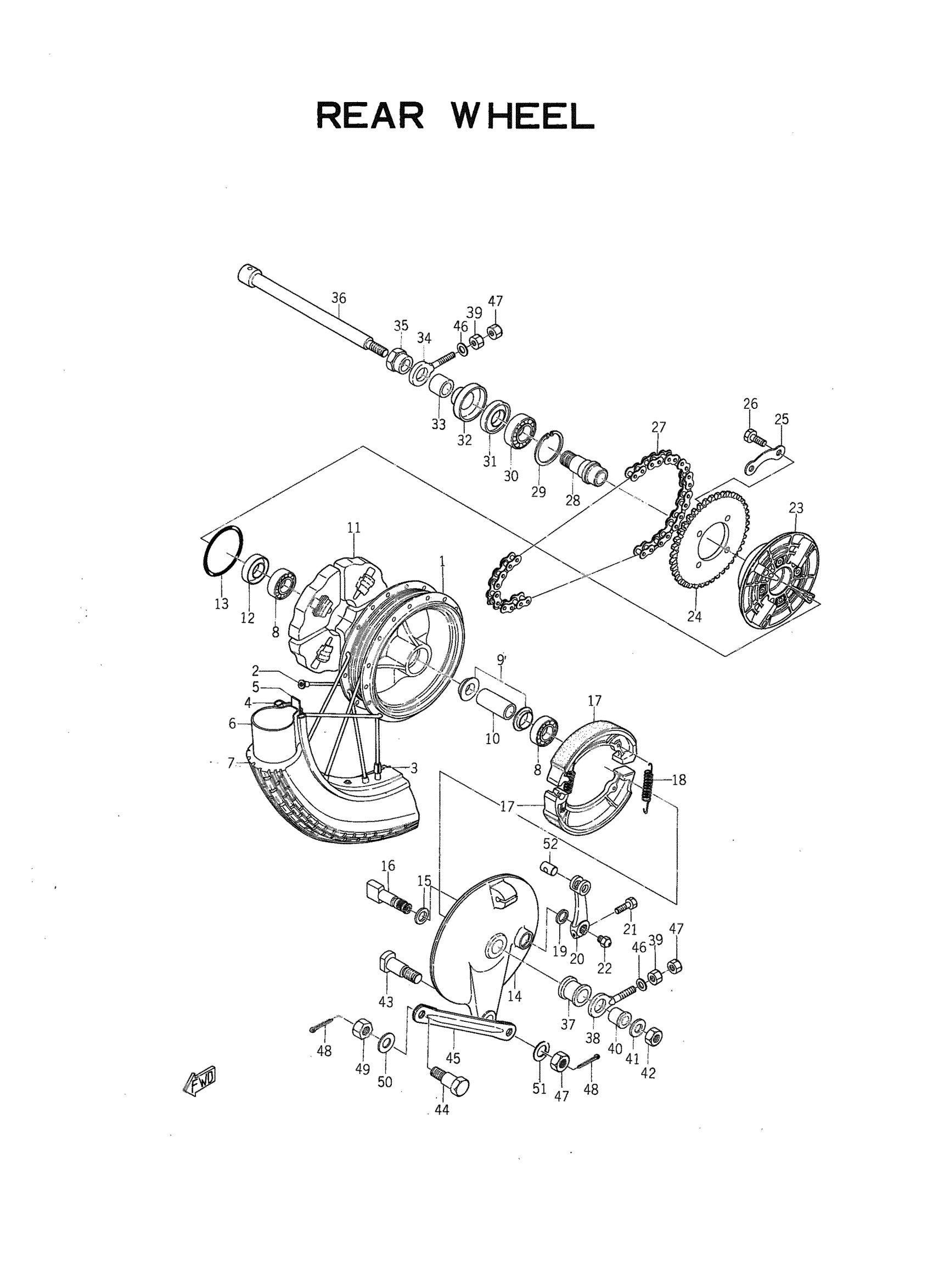

Yamaha YDS5E (YDS5E) 169 1967 REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

278-25311-00-00

Unavailable

2

SPOKE SET, REAR

152-25304-00-00

Unavailable

3

BALANCER, WHEEL

3HT-25398-00-00

$7.99

4

RIM 1.85X18

94418-18026-00

Unavailable

5

BAND, RIM (2J4)

94340-18086-00

$17.99

6

TUBE (5H5)

94227-18195-00

$35.99

7

325-18 YOKO RAYON

94132-18089-00

Unavailable

7

TIRE

94132-18338-00

Unavailable

8

BEARING(4HM)

93306-30317-00

$39.99

9

FLANGE, SPACER

146-25315-00-00

$7.99

10

SPACER

90560-17140-00

Unavailable

11

DAMPER

168-25364-00-00

Unavailable

12

OIL SEAL

93104-25008-00

Unavailable

13

O-RING (70E)

93210-54534-00

Unavailable

14

PLATE, BRAKE SHOE

152-25321-00-00

Unavailable

15

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

16

CAMSHAFT

152-25351-00-00

Unavailable

17

BRAKE SHOE KIT

5R3-W253E-00-00

Unavailable

18

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

19

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

20

LEVER, CAMSHAFT

152-25355-00-00

Unavailable

21

BOLT, HEXAGON

97017-06025-00

Unavailable

22

NIPPLE, GREASE

93700-06M03-00

Unavailable

23

CLUTCH,HUB

168-25366-00-00

Unavailable

24

SPROCKET, DRIVN 38T

152-25438-10-33

Unavailable

24

SPROCKET, DRIVN 39T

152-25439-10-33

Unavailable

24

SPROCKET, DRIVN 40T

152-25440-10-33

Unavailable

24

SPROCKET, DRIVN 41T

152-25441-10-33

Unavailable

24

SPROCKET, DRIVN 42T

152-25442-10-33

Unavailable

24

SPROCKET, DRIVN 43T

152-25443-10-00

Unavailable

25

WASHER

148-25412-00-00

Unavailable

26

BOLT (583)

90101-10303-00

Unavailable

27

525T 92L

94515-25092-00

Unavailable

27

. MASTER LINKS

94615-25001-00

Unavailable

28

AXLE, SPROCKET

152-25387-00-00

Unavailable

29

CIRCLIP(26H)

99009-52500-00

Unavailable

30

BEARING

93306-20503-00

Unavailable

31

OIL SEAL

93102-32037-00

Unavailable

32

COVER, HUB DUST

168-25367-00-00

Unavailable

33

COLLAR

90387-23441-00

Unavailable

34

PULLER, CHAIN 2

156-25389-00-00

Unavailable

35

NUT,SPEC'L SHAPE

90179-22124-00

Unavailable

36

AXLE,WHEEL

150-25381-01-00

Unavailable

37

COLLAR, WHEEL

148-25383-00-00

Unavailable

38

PULLER, CHAIN 1

156-25388-00-00

Unavailable

39

NUT(6L2)

95333-08600-00

Unavailable

40

COLLAR

90387-17429-00

Unavailable

41

WASHER, WHEEL

156-25384-00-00

Unavailable

42

NUT,HEXAGON

90170-16083-00

Unavailable

43

BOLT

90109-08184-00

Unavailable

44

BOLT

90109-08375-00

Unavailable

45

BAR, TENSION

171-25371-00-00

Unavailable

46

WASHER, PLAIN

92990-08200-00

Unavailable

47

. NUT

95380-08700-00

Unavailable

48

PIN, COTTER

91490-20025-00

Unavailable

49

NUT(6L2)

95333-08600-00

Unavailable

50

WASHER, PLAIN

92990-08200-00

Unavailable

51

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

52

PIN 1562723700

90249-12008-00

Unavailable
