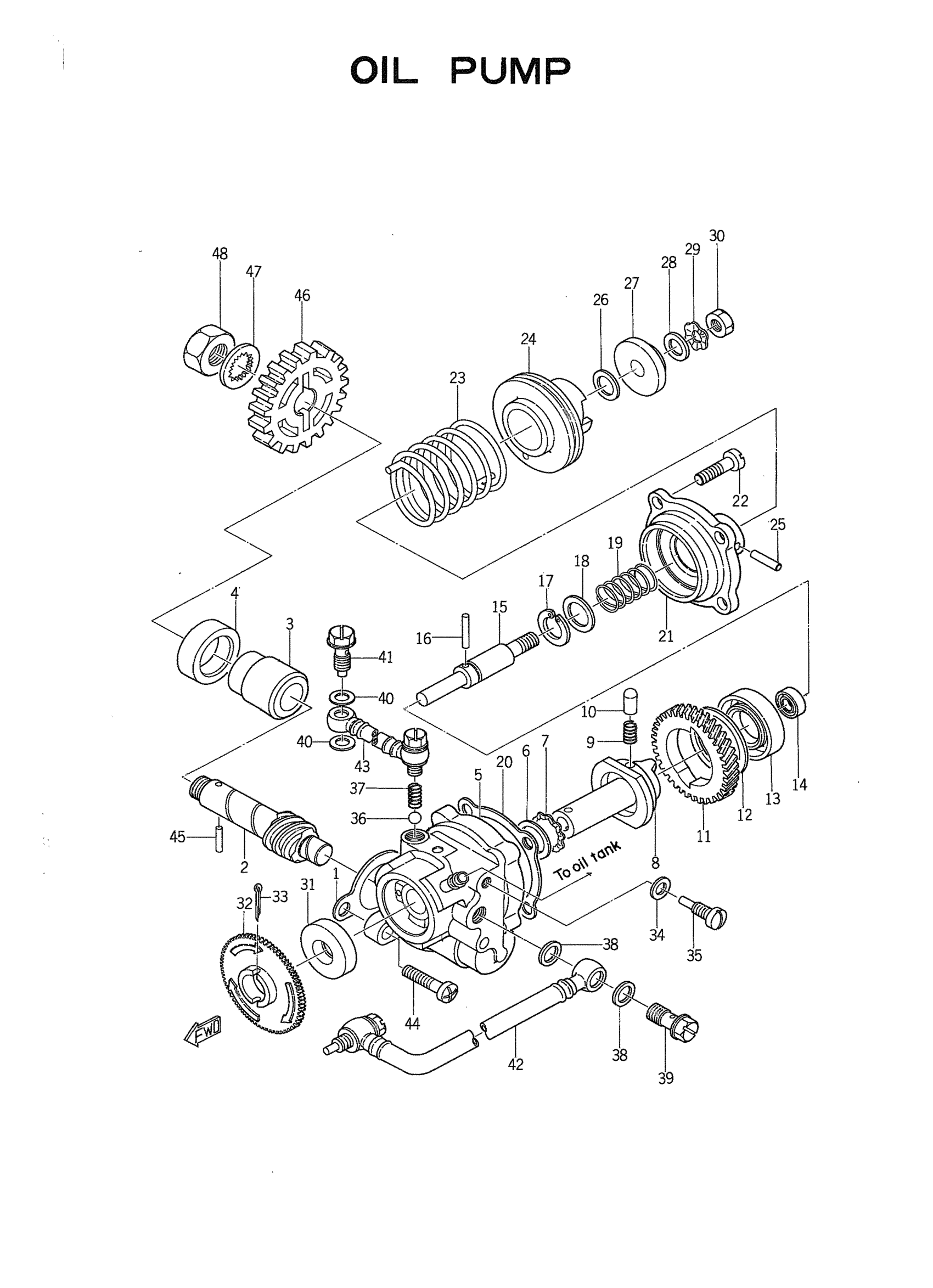

Yamaha YDS5E (YDS5E) 169 1967 OIL PUMP Diagram
#
2
SHAFT, WORM
170-13175-00-00
Unavailable
3
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
5
PUMP CASE ASSY
156-13110-00-00
Unavailable
6
PLATE, CAM THRUST
137-13148-00-00
Unavailable
7
WASHER, WAVE (137)
90206-11016-00
Unavailable
8
. DISTRIBUTOR ASSY
156-13120-00-00
Unavailable
9
SPRING,COMPRESSION
90501-02016-00
Unavailable
10
. PIN, DOWEL
93602-04029-00
Unavailable
11
GEAR, WORM WHEEL
170-13124-00-00
Unavailable
12
. PLATE, WORM WHEEL
137-13127-00-00
Unavailable
15
. PLUNGER
137-13131-00-00
Unavailable
16
PIN,DOWEL (137)
93603-12030-00
Unavailable
17
CIRCLIP
93440-05001-00
Unavailable
18
. SEAT, SPRING
137-13134-00-00
Unavailable
19
. SPRING, PLNGR RTRN
137-13135-00-00
Unavailable
20
. GASKET, PUMP CASE COVER
137-13142-00-00
Unavailable
21
. COVER, PUMP CASE
137-13141-00-00
Unavailable
22
SCREW, PAN HEAD
92501-04010-00
Unavailable
23
. SPRING, TORSION (156-13145-00)
90508-10013-00
Unavailable
24
PULLEY,ADJUSTING
364-13144-01-00
Unavailable
25
. PIN
91608-20010-00
Unavailable
26
SHIM,PLUNGER
137-13137-00-10
Unavailable
27
PLATE, ADJUSTING
137-13138-01-00
Unavailable
28
SHIM,PLUNGER
137-13137-00-10
Unavailable
29
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
30
. NUT
137-13139-00-00
Unavailable
30
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
31
OIL SEAL (J10)
93101-10090-00
Unavailable
32
. PLATE, STARTER
137-13128-00-00
Unavailable
33
. PIN, COTTER
91401-12018-00
Unavailable
34
GASKET 137131870000
90430-04004-00
Unavailable
35
SCREW,PAN HEAD
164-81245-20-00
Unavailable
35
SCREW,PAN HEAD
164-81245-20-00
Unavailable
35
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
36
BALL
93505-32002-00
Unavailable
37
. SPRING, COMPRESSION
90501-02017-00
Unavailable
38
GASKET(3FP)
90430-06224-00
Unavailable
39
BOLT UNION 137131650000
90401-06001-00
Unavailable
40
GASKET(3FP)
90430-06224-00
Unavailable
41
BOLT, UNION
90401-06011-00
Unavailable
42
PIPE, DELIVERY 2
170-13171-00-00
Unavailable
43
PIPE, DELIVERY 1
170-13161-00-00
Unavailable
44
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
44
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
45
PIN,DOWEL (137)
93603-22028-00
Unavailable
46
GEAR, PUMP DRIVE
170-13178-00-00
Unavailable
47
WASHER (688)
92990-08400-00
Unavailable
48
. NUT
95380-08700-00
Unavailable
49
OIL PUMP ASSEMBLY
170-13101-02-00
Unavailable
