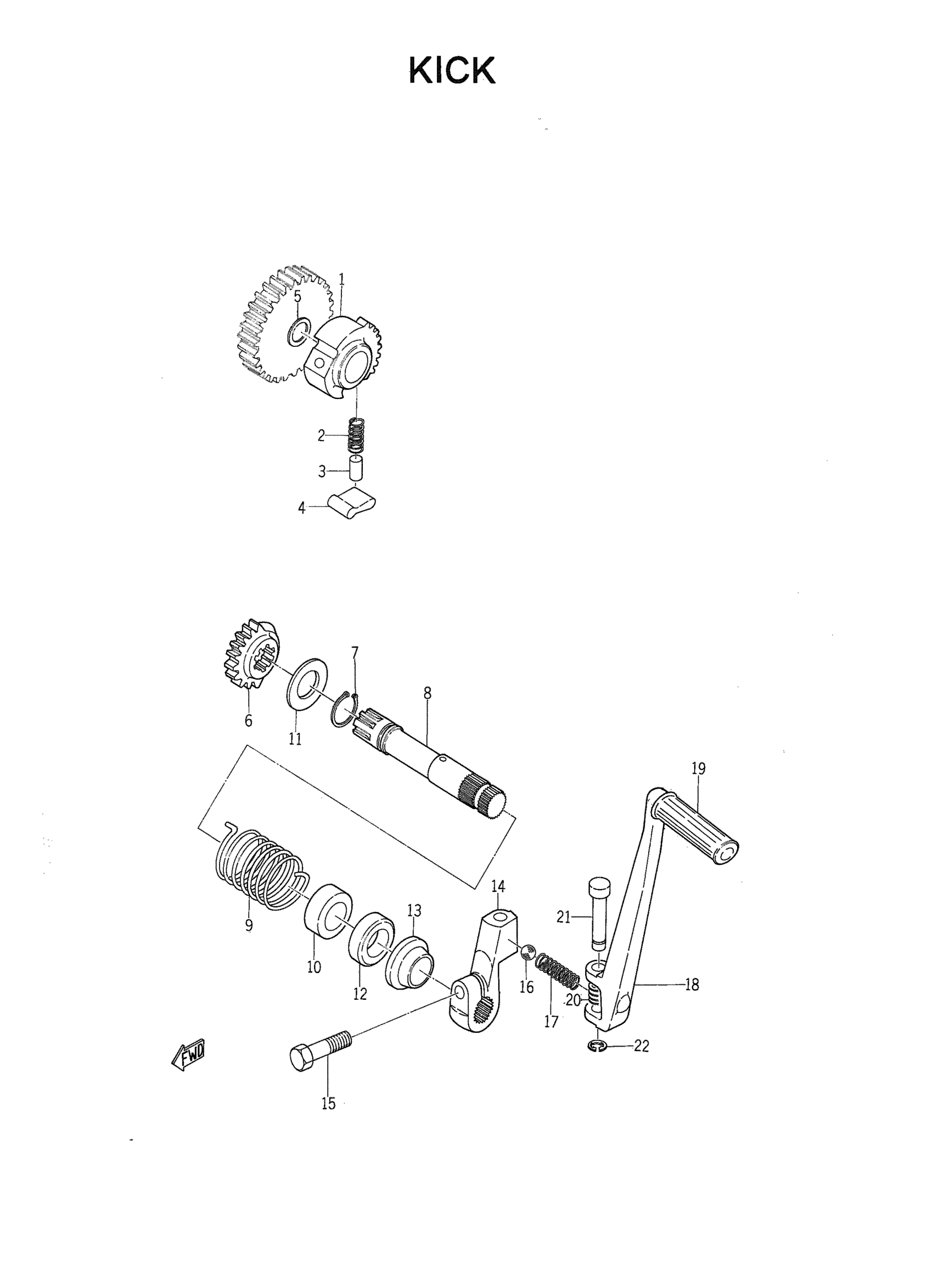

Yamaha YDS5E (YDS5E) 169 1967 KICK Diagram

#

Description
Price

1

GEAR, KICK PINION

156-15631-00-00

Unavailable

2

SPRING,COMPRESSION

90501-05020-00

Unavailable

3

PIN,STRAIGHT

90250-05007-00

Unavailable

4

PAWL, KICK

152-15635-00-00

Unavailable

5

WASHER,PLATE

90201-20268-00

Unavailable

6

GEAR, KICK

156-15641-00-00

Unavailable

7

CIRCLIP, OUTER

93440-20002-00

Unavailable

8

AXLE, KICK

152-15661-00-00

Unavailable

9

SPRING,TORSION

90508-35069-00

Unavailable

10

GUIDE, SPRING

146-15664-00-00

Unavailable

11

WASHER, PLATE 1832514700

90201-20269-00

$7.49

12

OIL SEAL (20X30X4.5-146)

93104-20007-00

$8.49

13

SEAL

168-15663-00-00

Unavailable

14

BOSS, KICK CRANK

170-15621-01-00

Unavailable

15

BOLT (682)

97013-08025-00

$8.49

16

BALL

93505-16006-00

Unavailable

17

SPRING,COMPRESSION

90501-15091-00

Unavailable

18

CRANK, KICK

170-15611-00-00

Unavailable

19

COVER, KICK LEVER

156-15618-01-00

Unavailable

20

SPRING,KICK CRANK

214-15625-00-00

Unavailable

21

PIN, CRANK

168-15624-00-00

Unavailable

22

CIRCLIP(2R6)

99001-08600-00

Unavailable
