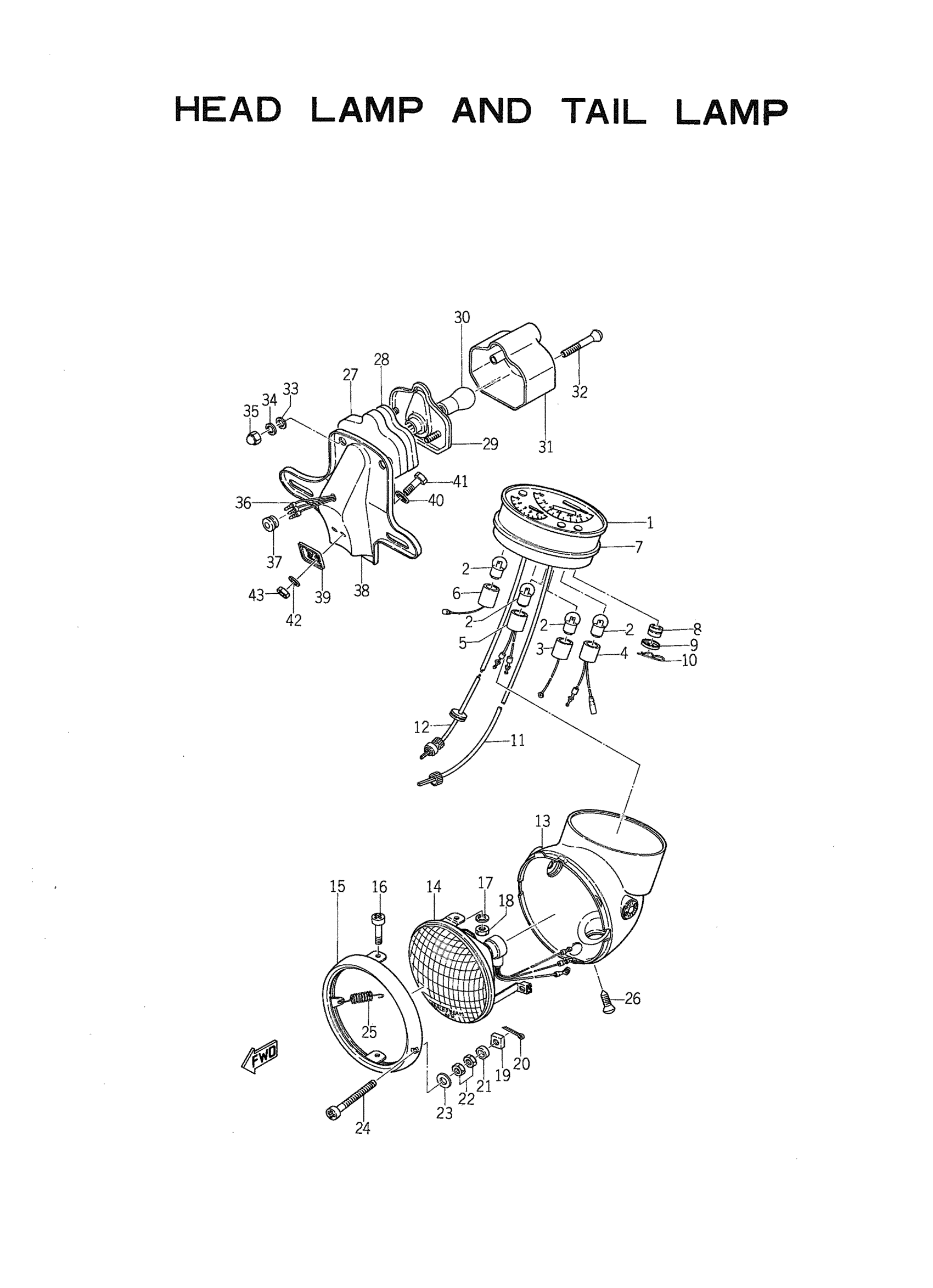

Yamaha YDS5E (YDS5E) 169 1967 HEAD LAMP AND TAIL LAMP Diagram

#

Description

Price

1

SPEEDOMETER ASY

170-83510-71-00

Unavailable

2

BULB (12V-3.4W)

123-83516-21-00

$4.26

3

SOCKET, METER

156-83536-10-00

Unavailable

4

SOCKET, NEUTRAL

156-83537-10-00

Unavailable

5

SOCKET, CHARGE

156-83539-10-00

Unavailable

6

SOCKET, HIGH-BEAM

156-83529-10-00

Unavailable

7

DAMPER

152-83513-00-00

Unavailable

8

GROMMET

90480-12098-00

Unavailable

9

WASHER,SPEC'L SHAP

90209-05025-00

Unavailable

10

CLIP (156-83525-00)

90468-10050-00

$3.05

11

SPEEDOMETER CABLE

156-83550-01-00

Unavailable

12

TACHOMETER CABLE

170-83560-00-00

Unavailable

13

BODY, HEADLIGHT

168-84311-01-22

Unavailable

13

BODY ASSEMBLY

168-84330-01-29

Unavailable

13

BODY ASSEMBLY

168-84330-01-81

Unavailable

14

LENS ASSEMBLY

168-84320-60-00

Unavailable

15

RIM,HEADLIGHT

168-84315-00-00

Unavailable

16

COLLAR, BODY FTNG

168-84338-60-00

Unavailable

16

COLLAR, BODY FTNG

193-84338-60-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

NUT(6TA)

95307-04600-00

Unavailable

19

NUT, ADJUSTING

132-84334-61-00

Unavailable

19

NUT, ADJUSTING

194-84334-60-00

Unavailable

20

. PIN, COTTER

91401-10015-00

Unavailable

21

SPACER

168-84328-60-00

Unavailable

22

NUT

132-84326-60-00

Unavailable

22

NUT(6L4)

95380-04700-00

Unavailable

23

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

24

SCREW, RIM ADJUSTING

132-84331-60-00

Unavailable

24

SCREW, RIM ADJUSTING

198-84331-60-00

Unavailable

25

SPRING

168-84335-60-00

Unavailable

26

SCREW, RIM FITTING

150-84125-00-00

Unavailable

26

SCREW, OVAL HEAD (1A0)

90152-05005-00

Unavailable

27

COVER, TAILLIGHT

168-84716-00-00

Unavailable

28

SEAT, BASE

168-84712-00-00

Unavailable

29

BASE, TAILLIGHT

168-84711-00-00

Unavailable

29

BASE, TAILLIGHT

168-84711-01-00

Unavailable

30

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

31

LENS, TAILLIGHT

168-84721-60-00

Unavailable

32

. SCREW, LENS FITTING

168-84724-00-00

Unavailable

32

. SCREW, RIM ADJUSTING

3AA-84331-00-00

Unavailable

33

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

34

WASHER, SPRING

92995-06100-00

Unavailable

35

NUT (J17)

95380-06800-00

Unavailable

36

CORD, TAILLIGHT

170-84717-00-00

Unavailable

37

GROMMET 152845180000

90480-12013-00

Unavailable

38

BRACKET, LICENSE

168-84751-00-35

Unavailable

39

DAMPER

170-84753-00-00

Unavailable

40

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

41

BOLT 168217380000

90109-06017-00

Unavailable

42

WASHER, SPRING

92995-06100-00

Unavailable

43

NUT, HEXAGON

95380-06600-00

Unavailable

44

TAILLIGHT UNIT ASSEMBLY

168-84710-61-00

Unavailable
